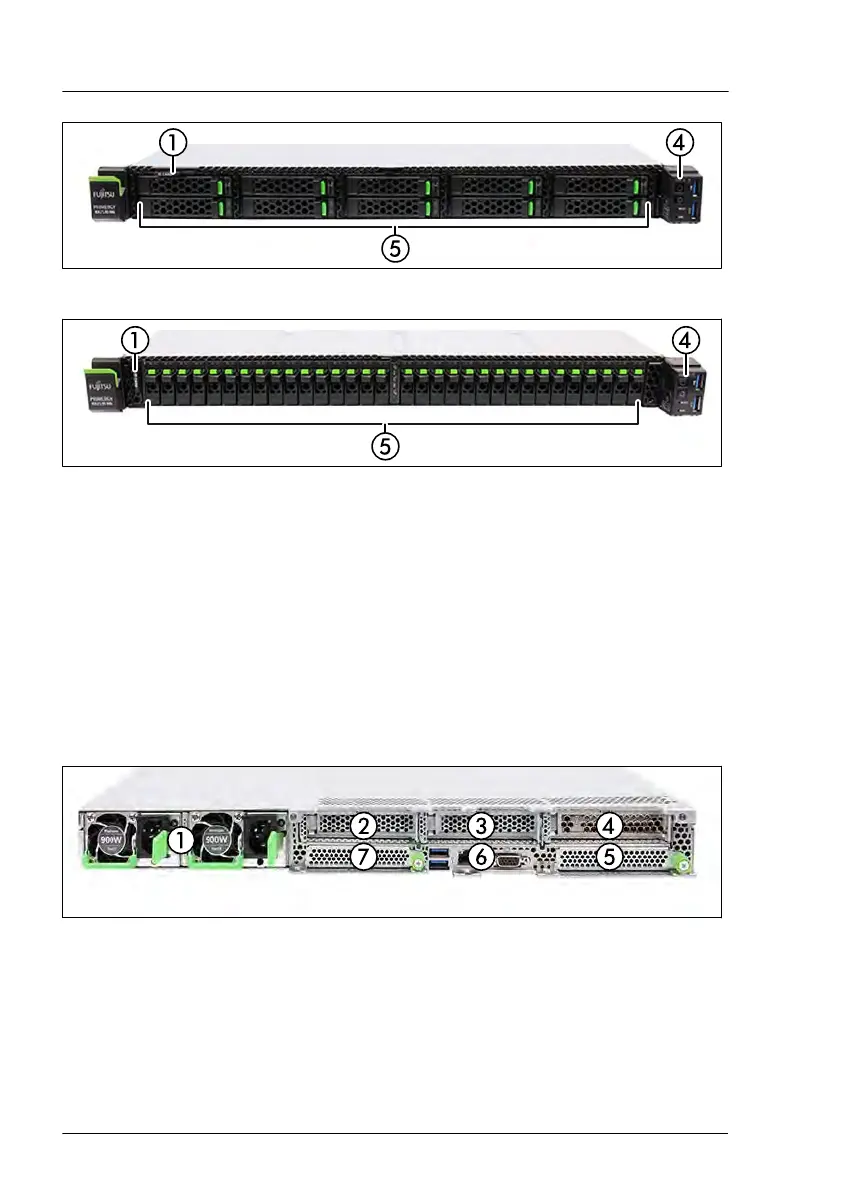

Figure 291: Server front type 3 (10x 2.5-inch SAS/SATA HDDs / SSDs /PCIe SSDs)
Figure 292: Server front type 4 (32x EDSFF SSDs)
1 ID card
2
ODD / dummy cover
3
Front VGA
4
Common Operation Panel (COP)
5 HDDs / SSDs / PCIe SSDs / EDSFF
SSDs / dummy modules
The ODD (2) and the Front VGA (3) are options.
17.1.2 Server rear
17.1.2.1 Servers with air cooling
Figure 293: Standard rear side with air cooling
1 Up to two PSUs / dummy cover
2
PCI slot 3 / riser module 3
3 PCI slot 2 / riser module 2
4
PCI slot 1 / riser module 1
5 OCP module 1
6 I/O panel
7 OCP module 2
Appendix A
400 Upgrade and Maintenance Manual RX2530 M6
