GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Canopy Removal for Service
7-2 Service Manual
5. Remove the canopy from the device:
a. Using a small straight-blade screwdriver, remove the six arrow clips that secure the soffit beneath
the control panel end of the canopy. Remove the soffit. (Refer to Figure 7-1.) Save the six arrow
clips and soffit for later reinstallation.

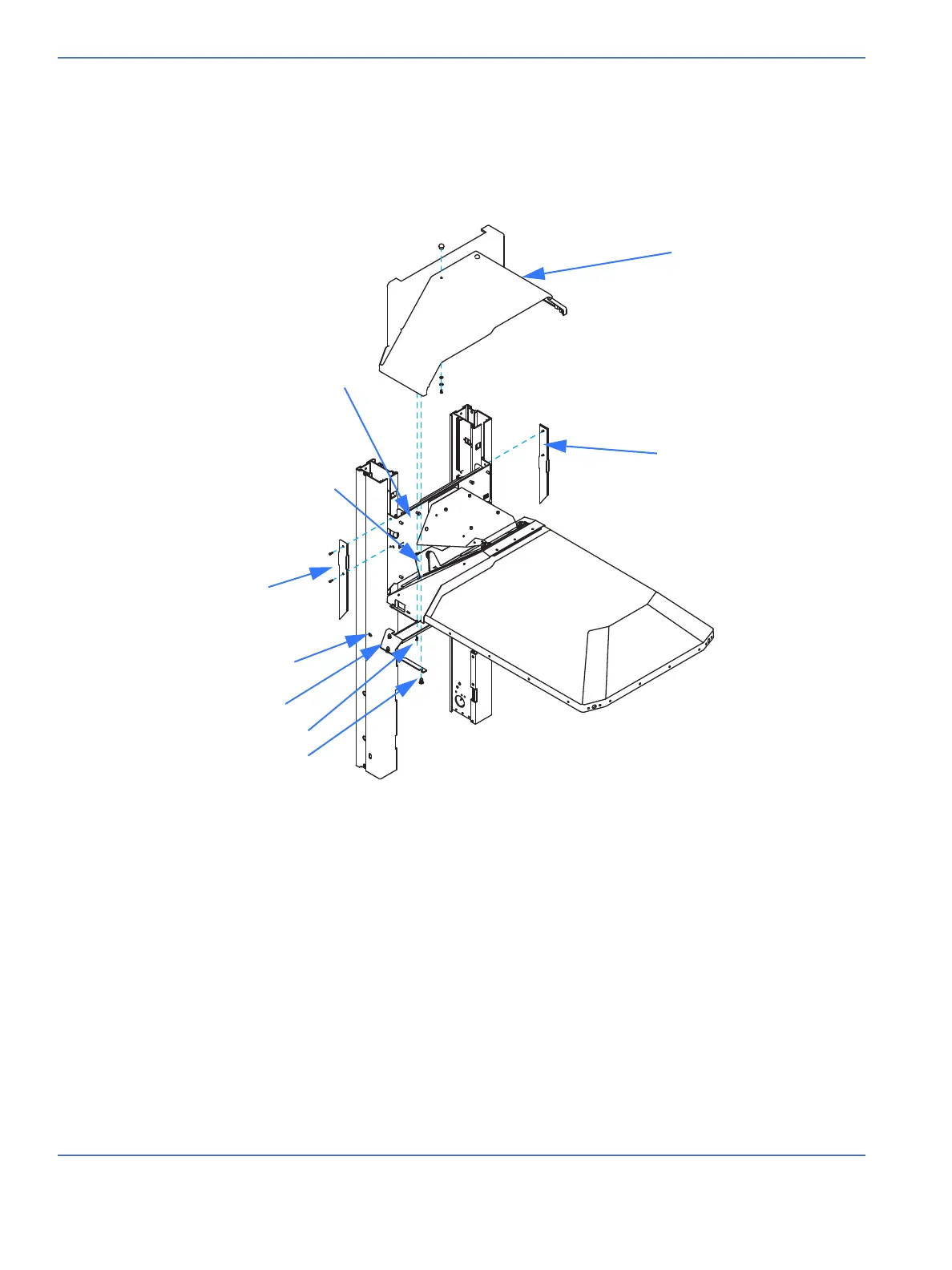

FIGURE 7-1. Heater Housing Cover and Soffit
Heater housing cover
Right inside cover
Canopy
Canopy bracket
Heater door bracket
Left inside cover
Intermediate oblong
locking hole
Soffit
Housing cover screw
Arrow clip
