GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Canopy Removal for Service
7-12 Service Manual
14. Install additional hardware:
a. Make sure that four set screws are inserted into the heater door bracket. Also make sure that the
set screw on each side of the canopy at the display end is aligned with the hole in the heater door
bracket.
b. Using a 7 mm socket or wrench, install the four nuts and four star washers that secure the canopy
to the heater door bracket. Remember to reinstall the cable routing clips on the outboard studs.
c. Slide each rail spacer between rail and heater door bracket to align with each set screw on the
side rails at the E and W marks. Refer to Figure 7-16. Tighten smooth nuts finger-tight until set
screw protrudes through spacer and heater door bracket.
d. Tighten smooth nut with a 10 mm open end wrench. Make sure rail spacer is still in place between
the heater door bracket and rail.
e. Assemble the star washer and nut on the outside of the heater door bracket and tighten the nut.
Caution: Do not over-tighten the hardware.

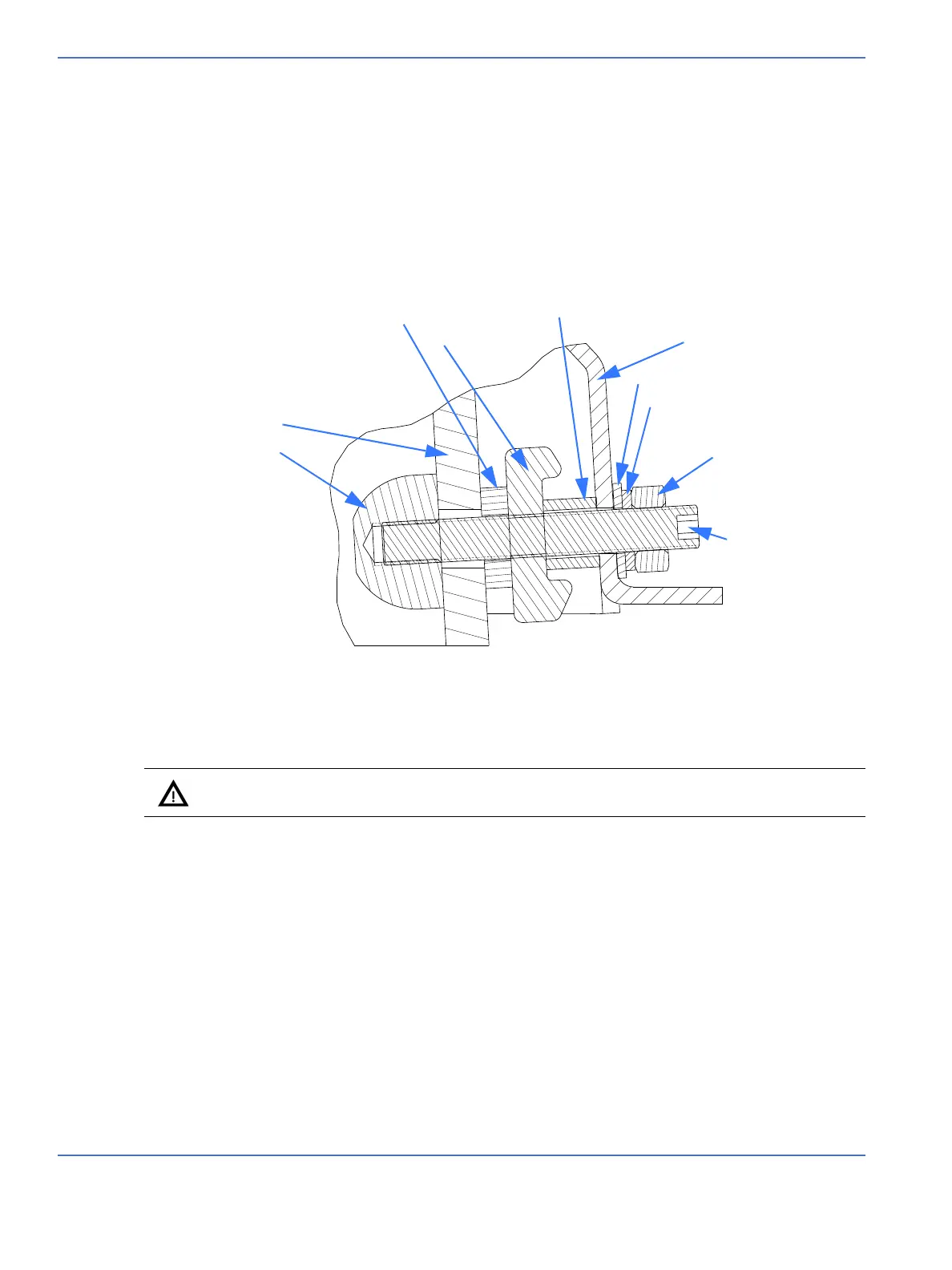

FIGURE 7-16. Installing Rail Spacers
INSIDE OF
CANOPY
OUTSIDE OF
CANOPY
Smooth nut
Canopy
INSIDE OF
CANOPY
Spacer washer
Canopy rail
Rail spacer
Heater door bracket
Flat washer
Star washer
Hex nut
M4x30 set screw
