Chapter 7: Repair Procedures
Canopy Removal for Service
Service Manual 7-3
b. Using a 2.5 mm hex key, remove the four screws that secure the heater housing cover to the
heater door bracket. Remove the heater housing cover. Save the four screws and heater housing
cover for later reinstallation.
c. Using a 7 mm socket or wrench, remove and discard the four nuts and four star washers across
the north end of the heater door bracket that secure the canopy to the heater door bracket. (Two
of the nuts are accessed though the north access holes in the canopy bracket.) Take note where
cable routing clips are secured, for later reassembly.

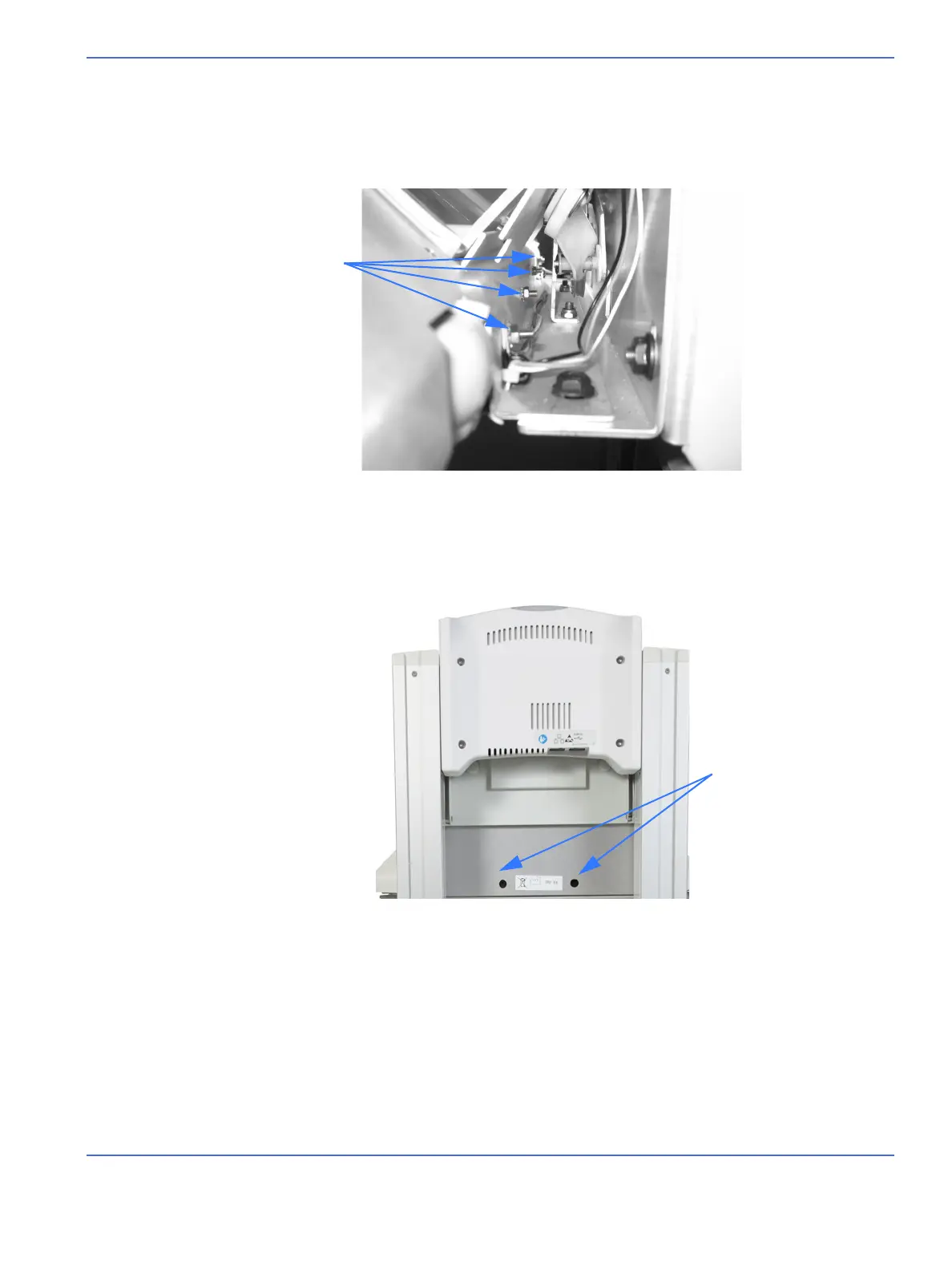

Nuts
FIGURE 7-2. Nuts
Access holes
FIGURE 7-3. Access Holes
