Electronic Enclosure Ground Stackup
Service Manual 8-9
Stud 3, Hardware Stack up as follows: 33, 34, Ground from Gearbox/Motor, and 34, 33, 34, Ground from
Power Supply AC Input, 34.
Stud 1, Hardware Stack up as follows: 33, 34, Ground from Isolation Transformer, 34, 33, 34, Ground from
Equalization, 34, Ground from Outlets, 34, 33, 34, Ground wire for line filter, and 34.
Stud 2, Hardware Stack up as follows: 33, 34, Ground from Warmer MTR/SSR, 34, Ground from Transformer
Motor, 34, 33, 34, Ground wire, 34, Ground wire, 34, Ground from Humidity Heater, 34.

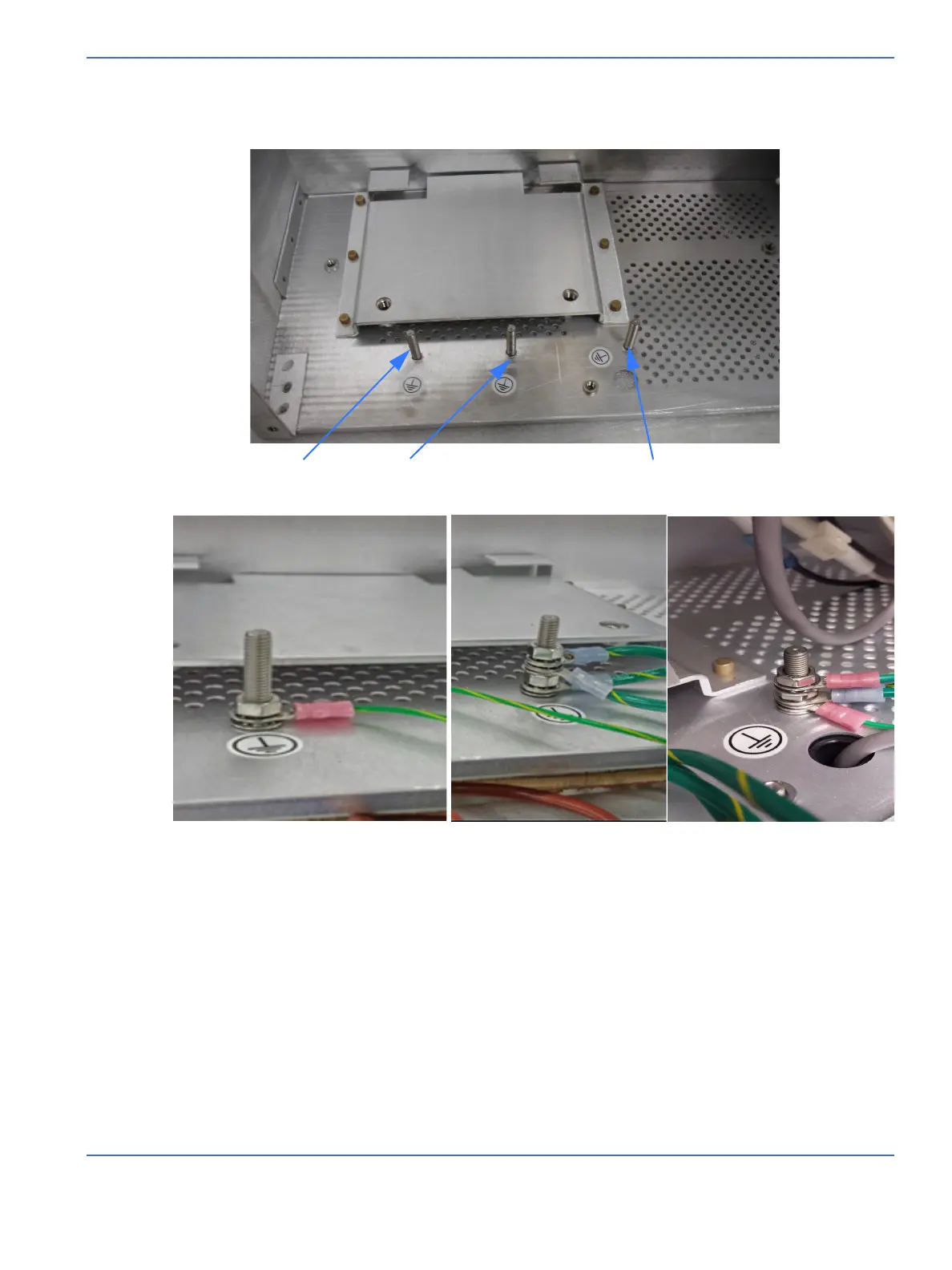

FIGURE 8-5. Electrical Enclosure Ground Stackup (cont’d)
Stud 3
Stud 1
Stud 2
Stud 3
Stud 1
Stud 2
