GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts
Storage Drawer
8-54 Service Manual
8.16 Storage Drawer
1. Drawer slide ...........................................................................6600-1717-500
2. Drawer mounting bracket front (south) ....................6600-1781-500
3. Screw, M4 x 12 Button HD ...............................................6600-0706-410
4. Screw, M4 x 8 Button HD..................................................6600-0706-408
5. Storage drawer.....................................................................6600-1279-500
6. Screw, M5 x 12 Button HD Nylok .................................. 6600-0715-410
7. Star washer, M5 internal tooth...................................... 6600-0713-433
8. Drawer mounting bracket*, rear (north) .................. M1172111
9. Tray.............................................................................................6600-1718-500
10. SEMS button head screw M4 x 8 ...............................6600-0908-403
11. Label Drawer Handle Blue............................................6600-2403-101

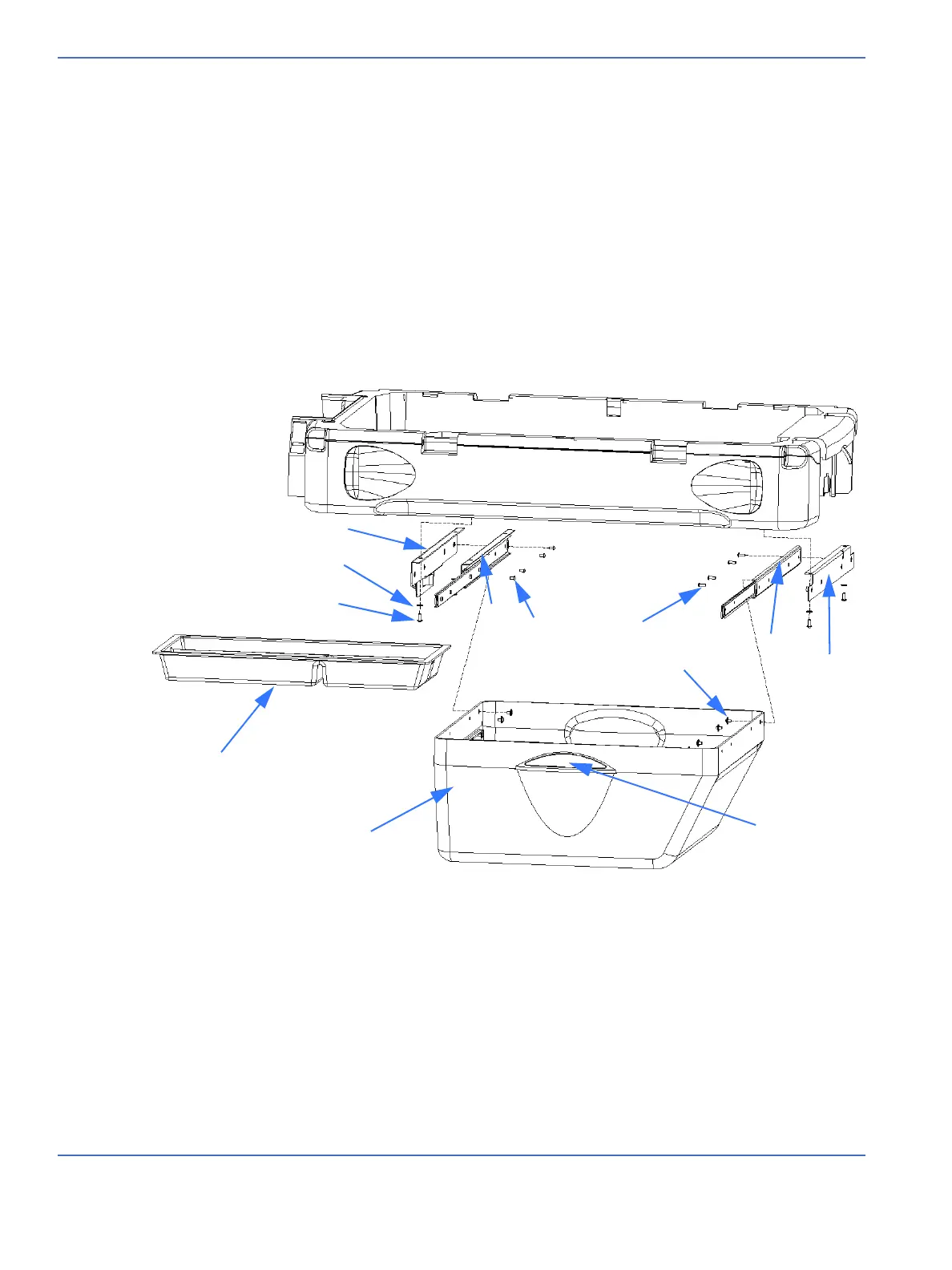

FIGURE 8-30. Storage Drawer
10
5
9
7
6
8
1
4
1
2
3
11
