GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts
Bed and Side Panels
Service Manual 8-13

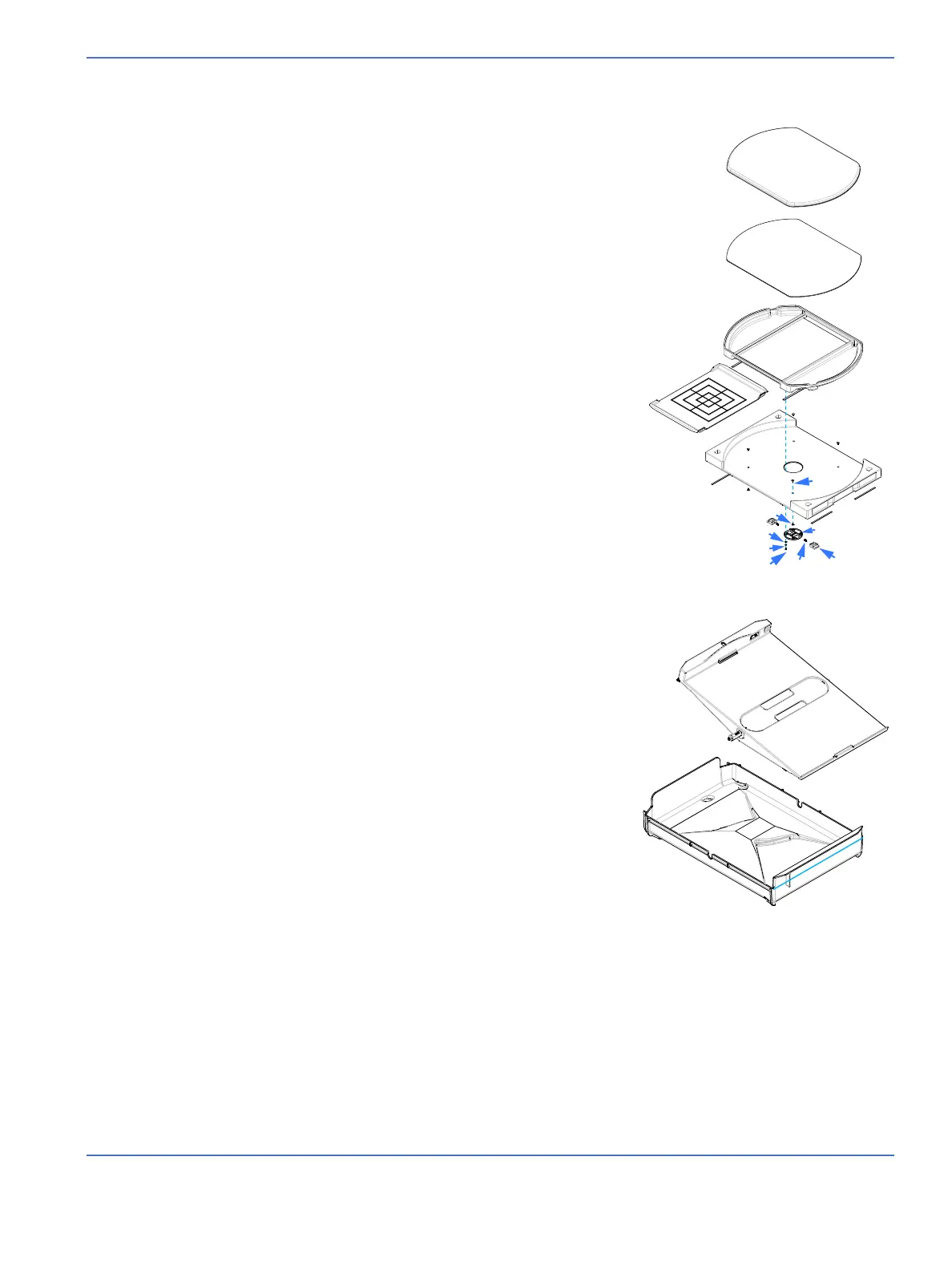

8.7 Bed and Side Panels
1. Giraffe pressure-diffusing mattress
(blue) ......................................................................................2076066-001
2. Clear Plate............................................................................ 6600-1365-500
3. Rotating Bed ...................................................................... 6600-1353-500
4. Translation Deck ............................................................... 6600-1352-500
5. Tape (5.4 in.)......................................................................... 6600-1758-502
6. Latch Cover ......................................................................... 6600-1364-500
7. Locking Latch ..................................................................... 6600-1363-500
8. Spring ..................................................................................... 6600-1079-400
9. Screw M4*............................................................................6600-0706-409
10. Washer, M4 split ring*..................................................... 6600-0713-403
11. Washer, M4 flat*................................................................ 6600-0712-403
12. Tape (19.3 in.) ......................................................................6600-1758-501
13. X-ray Tray ............................................................................. 6600-1334-500
14. Tilt Ball and Screw Assembly....................................... 6600-0814-700
15. Cover....................................................................................... 6600-1329-500
16. Top Plate ...............................................................................6600-1328-500
17. Nut ........................................................................................... 6600-1330-500
18. Plate ........................................................................................6600-1457-500
19. Stop ......................................................................................... 6600-1366-500
20. Retaining ring......................................................................6600-1080-400
21. Tilt platform*....................................................................... 6600-1313-500
22. Washer* ................................................................................0202-4520-340
23. Spring* ................................................................................... 6600-1009-400
24. Brake bracket* ................................................................... 6600-1225-500
25. Tilt Brake pad assembly* .............................................. 6600-0853-700
26. Knob*......................................................................................6600-1158-500
27. Cover*..................................................................................... 6600-1327-500
28. Slide*....................................................................................... 6600-1227-500
29. Spring* ................................................................................... 6600-1083-400
30. Ball bearing*........................................................................ 6600-1228-500
31. Pin* ..........................................................................................6600-2023-500
32. Pin retaining clip*.............................................................. 6600-0240-400
33. Plunger*................................................................................. 6600-1325-500
34. Spring* ................................................................................... 6600-1043-400
35. Pan........................................................................................... 6600-0801-700
36. Screw, M4.............................................................................. 6600-0706-407
37. Rivet, small...........................................................................6600-1078-400
38. Rivet large............................................................................. 6600-1203-400
39. Washer, brake*................................................................... 6600-1335-500
Parts Not Shown
Tilt Platform assembly (includes all items with*) ........ 6600-0771-700
1
2
3
4
5
6
8
7
10
11
37
12
13
38
9
21
35
