GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Radiant Heater Assembly Repair Procedures
7-34 Service Manual
6. Bring Lift Rail and Cable Carrier Channel together as shown in the following figure.
7. Make sure that the cables within the cable guard are not overlapping.
8. Push the cables downward to orient the cables against the outside edge of the cable carrier. This
creates enough slack so the cables are not tight as the rails move up and down.
9. Secure cables to riveted end of cable carrier with new cable tie
7.5.5.5 Reassembly
1. Reassemble the buoyancy spring spools and plastic washers in the springs, then into the cable carrier
channel.
2. Reassemble and reinstall the left upright following section 7.5.4.
3. After performing any repair always perform the service checkout before putting the device back into
service.
7.6 Radiant Heater Assembly Repair Procedures
7.6.1 Removing the Canopy/Heater Assembly
Refer to “Figure 7-1 Heater Housing Cover and Soffit”, “Figure 7-4 Canopy, Bracket, and Heater Housing”,
“Figure 7-22 Disconnecting Heater Door Cable”, “Figure 7-30 Re-attaching the Upright”, and “Figure 7-37
Canopy Alignment”.
Note: It is not necessary to remove the canopy to replace the radiant heater. To replace the radiant heater
assembly, perform the instructions in section 7.6.2.
Cable carrier
channel
Lift rail
Push cable down
Heater wire
harness/cable
carrier assembly

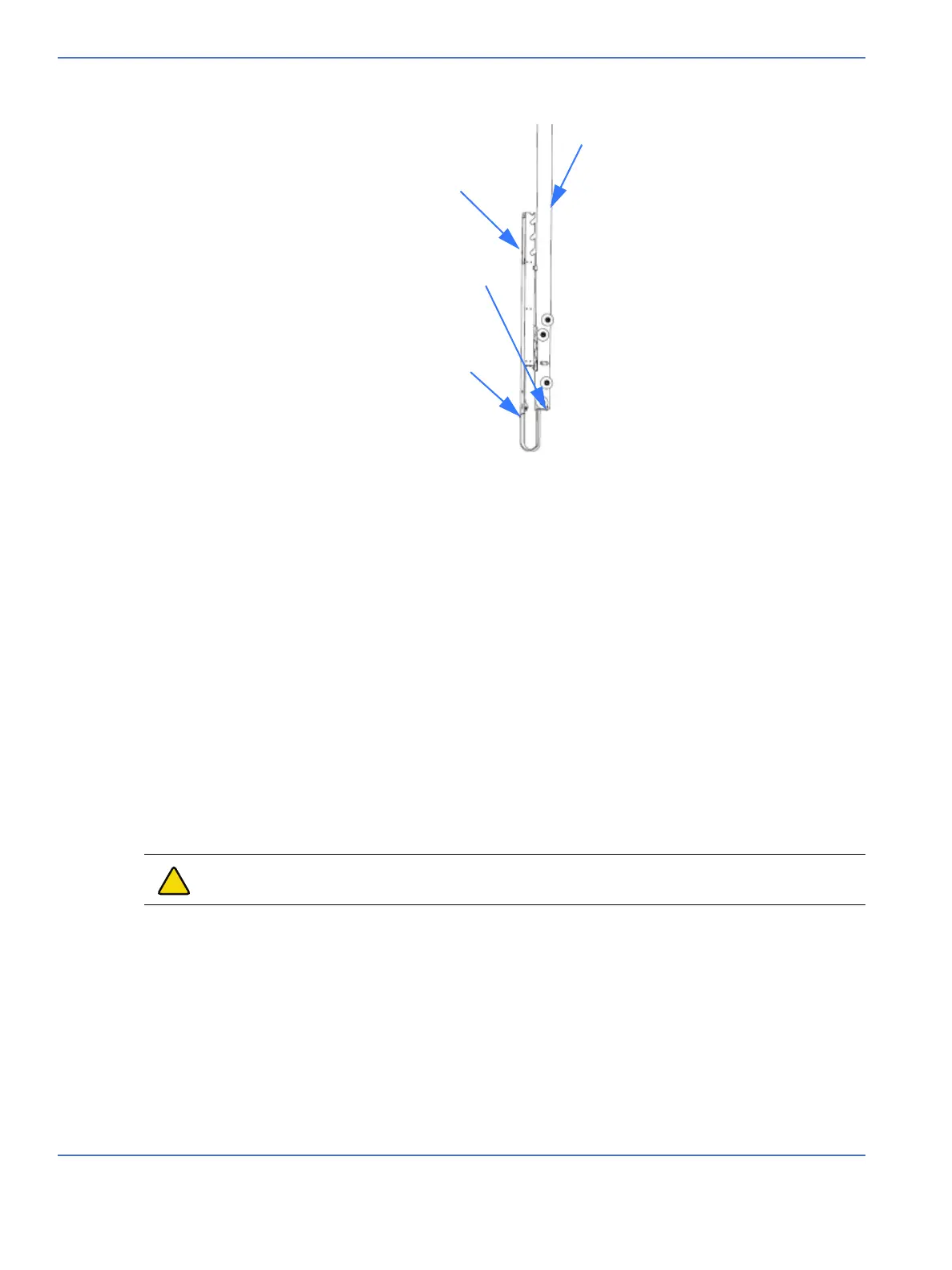

FIGURE 7-36. Lift Rail and Cable Carrier Channel Together
!
Warning: Allow the heater to cool before servicing.
