GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 8: Illustrated Parts
PCB Layouts
8-74 Service Manual
Fuse 3.15 amp 2070016-001
This fuse is not orderable
individually order Fuse SVC Kit
2084404-00
Fuse 230V 1 amp
Orderable Pt# 6600-0882-600
F1
F2F3
F4
D
D
50 49
WARMER HEATER C
2
J36
AIR FLOW SE
AIR CIRCULATION MOTOR
J30
J38
HOOD MOTOR
EBASE MOT
4
3
5
2
1
6
1
1
HOOD POSITION SEN
J45
1
1
MOTOR TRAN
INC HEATER CON
1
HOOD HAND CONTRO
J39
J33
J35
1
J3
1
J46
DOOR S
4
3
1
DC OUTPUT
1
RH ADD
WATER SENSOR
FOOT SWITCHES
J44
1
J50
1
J49
1
HUMIDIFIER HEATER
J52
1
1
ISO TRANS PRIMARY
MOTOR TRANS PRIMARY
HUMIDIFIER FUSES
ISO TRANS SECONDARY
SUPPLY FUSES
AC INPUT
1
1
1
J53
STBY SW HV
J51
INC / WARMER HEATERS
J48
1
J54
J47
DC SUPPLY
J55
1
HUMIDIFIER ISO TRANS

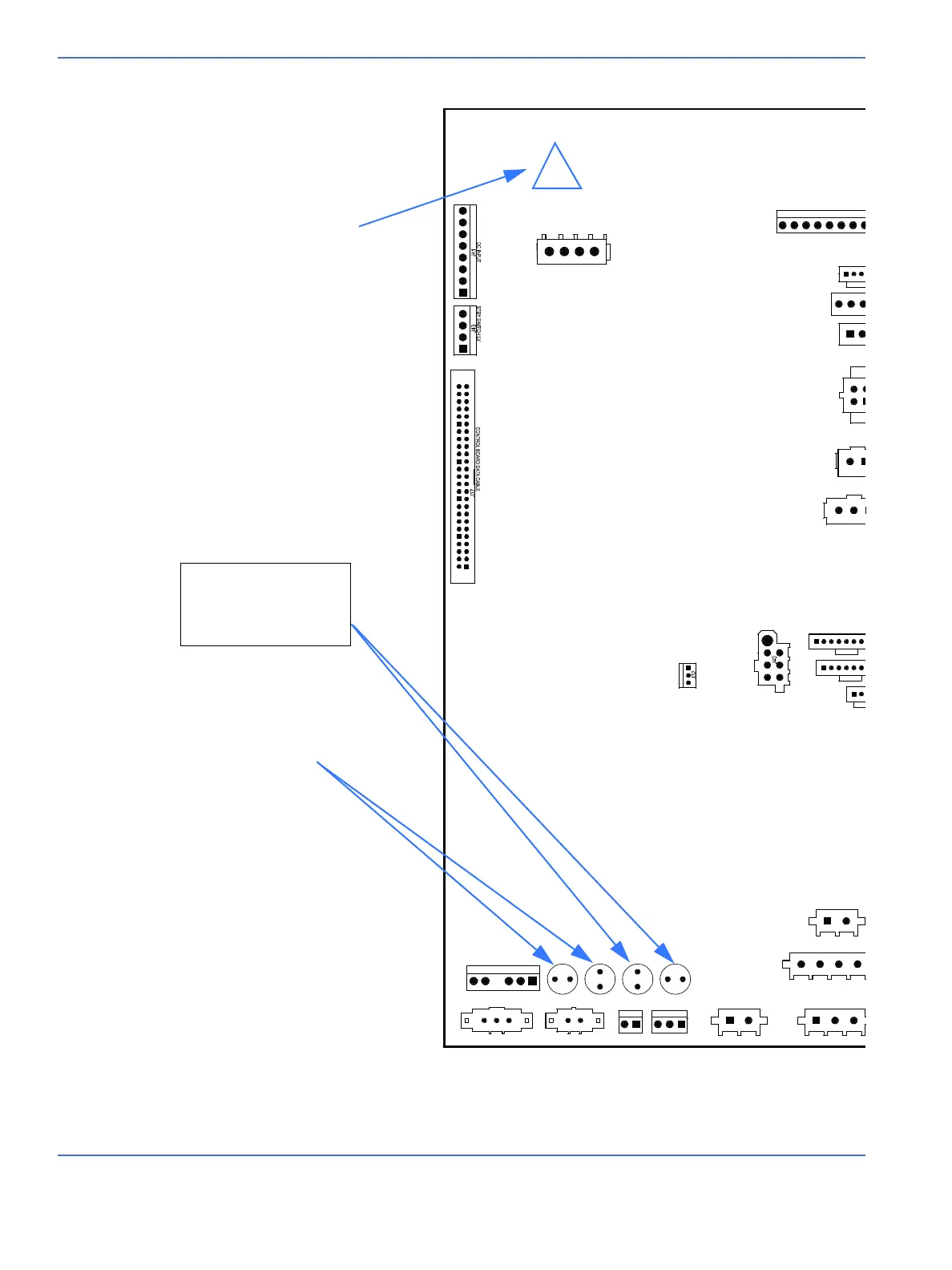

FIGURE 8-41. Relay Board (Service Kit: 2080429-001)
Board Assembly
Revision Number
#
Fuse 120V 2 amp
6600-0877-600
This fuse is not orderable
individually, order Fuse SVC
Kit 2084404-001
F2
F4
-OR-
F4
