GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Compartment Sensor Repairs
Service Manual 7-43
7.7 Compartment Sensor Repairs
Refer to “Figure 7-43 Compartment Sensor Disassembly”.
1. Using a 2.5 mm hex key, remove the screw that secures the probe cable clip to the back panel.
2. Remove the 2 screws (2 mm hex key) that secure the probe housing cover and remove it.
3. Disconnect the connectors for the temperature and humidity sensor (if installed) wires and remove the
compartment sensor.
4. Feed the probe cable through the hole in the back panel and remove the front of the probe housing.
5. Remove the 4 screws in the break plate and remove the plate.
6. To replace humidity sensor, pull it back out of the probe housing. Slide the wires out of the cylindrical
spacer. Place the shim washer and then the O-ring over the tip of the new sensor, and gently push it
back into the housing using the cylindrical spacer until the O-ring seats. The sensor tip should be visible,
but not protruding from the housing or up against its guard. Check to ensure that the O-ring did not roll
over the sensor flange during insertion.
Note: Perform the Humidity Calibration after replacing the humidity sensor.
7. To replace the temperature sensor, you must replace the entire probe housing.
8. When reassembling the probe housing make sure the groove in the break plate faces the probe
housing cover. Also check that the temperature sensor is oriented so that it is on top.

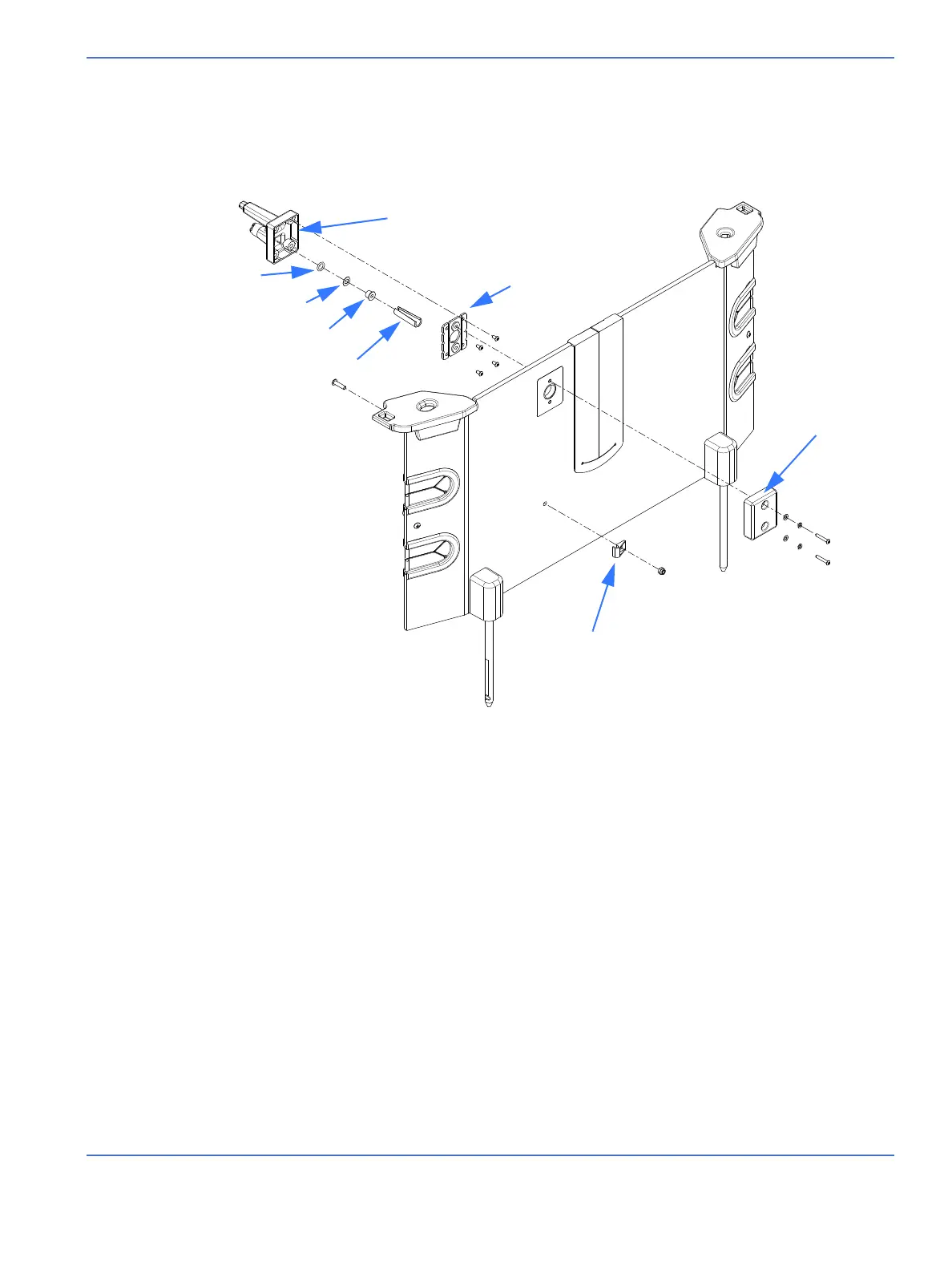

FIGURE 7-43. Compartment Sensor Disassembly
Humidity sensor
Compartment sensor
Cylindrical spacer
Break plate
Probe housing cover
Probe cable clip
Back panel
O-ring
Shim washer
