GE Giraffe OmniBed Carestation CS1 Service Manual

Chapter 7: Repair Procedures
Left Rail Internal Repairs
Service Manual 7-33
7.5.5.3 Removing the Old Harness from the Cable Carrier Channel
1. Open the first 4 exposed cable guard latches at the cable carrier channel end.
2. Unsnap the links with open covers leaving the end riveted link and 2 additional links on the cable carrier
channel.
3. Remove the 4 cable ties securing the harness to the channel. (Make note of routing and orientation).
4. Remove and discard the harness. You may want to save the cable carrier links to use as spares.
7.5.5.4 Installing Harness on the Cable Carrier Channel
1. On the replacement harness open the first 4 cable guard latches at the cable carrier channel end.
2. Remove the end link and the 2 adjoining links and set aside.
3. Route harness along the cable carrier channel and loosely install 4 cable ties. Do not tighten until cable
is adjusted properly. Be sure to install in same orientation as ties removed earlier.
4. Reattach the cable carrier channel to the 3 links riveted to the channel.
5. Close all open cable guard latches.

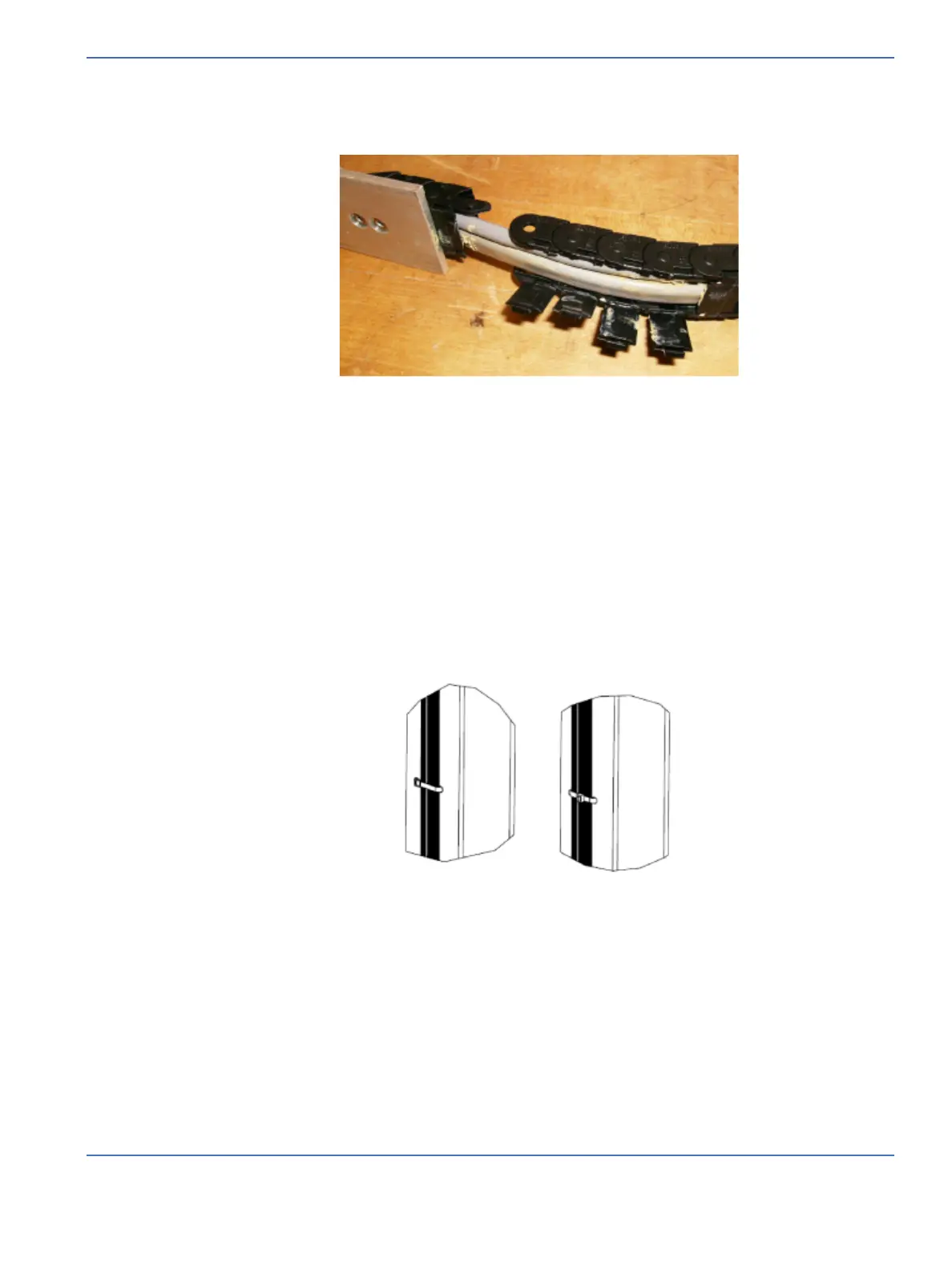

FIGURE 7-34. Opened Cable Guard Latches
Correct Incorrect
FIGURE 7-35. Correct and Incorrect Cable Tie Usage
