4. Access service mode. (See “Understanding the Service Interface Layout” on page 4-3.)
5. Follow the instructions in section “Set Time” on page 4-5 and reset the system date and time.

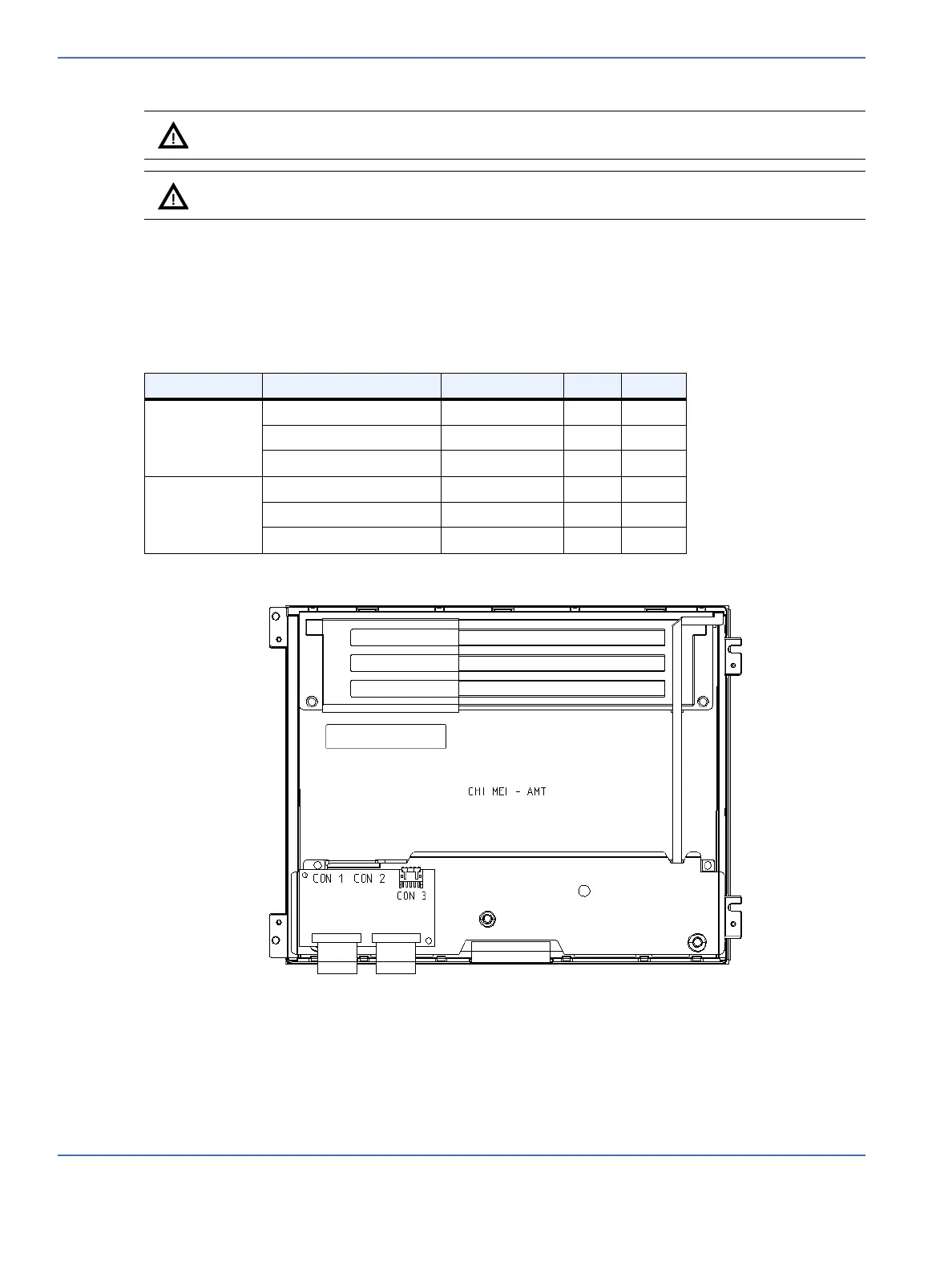

7.21 Display Harness Connections
Caution: Be sure to wrap the battery in insulating tape before disposing to prevent contact
with conductive material and shorting out battery.
Caution: Dispose of the battery in accordance with local toxic waste regulations.
OEM DISP/TC Harness Part Number SBC LVDS
CHI MEI-AMT
LVDS 2069665-001 J6 CON1
PCAP TOUCH SCREEN 2073936-001 J7 CON3
LED BACKLIGHT 2069702-001 J9 CON2
NLT
LVDS 2075456-001 J6 CON1
PCAP TOUCH SCREEN 2075449-001 J7 CON3
LED BACKLIGHT 2075452-001 J10 CON2
