Output Timing: When a compare-match occurs, the logic level selected by the output level bit

(OLVLA or OLVLB) in the TCSR is output at the output compare pin (FTOA or FTOB).

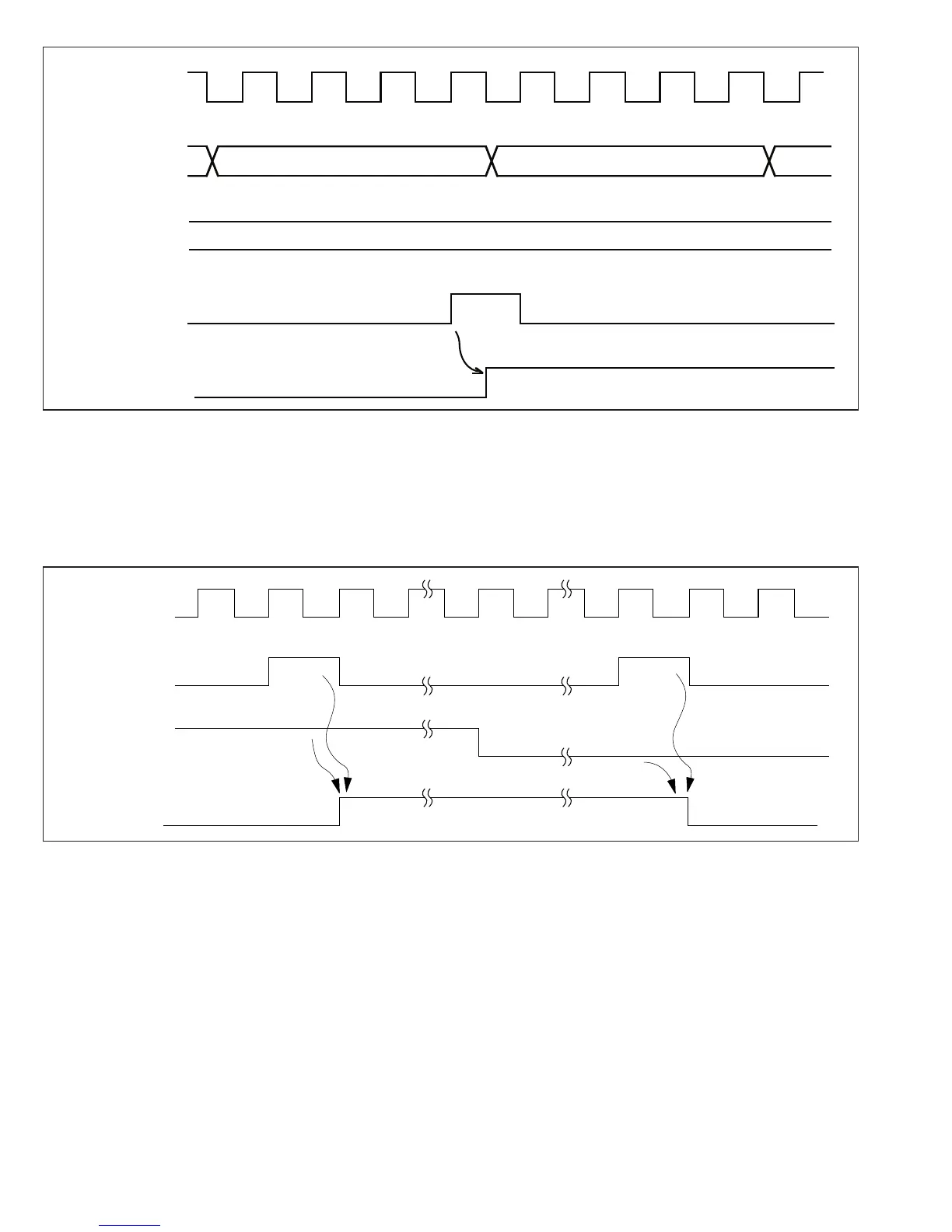

Figure 10-5 shows the timing of this operation for compare-match A.

N + 1

FRC

OCR

Internal compare-

match signal

OCF

FTOA

Internal compare-

match A signal

OLYLA

Figure 10-4 Setting of Output Compare Flags

Figure 10-5 Timing of Output Compare A
