20.3.4 I/O Port Timing

tPRS tPRH

tPWD

T1 T2 T3

Port 1

to (Input)

port 9

Port 1*

to (Output)

port 9

* Except P1 , P1 , and P8 to P8

10 7 0

Port read/write cycle

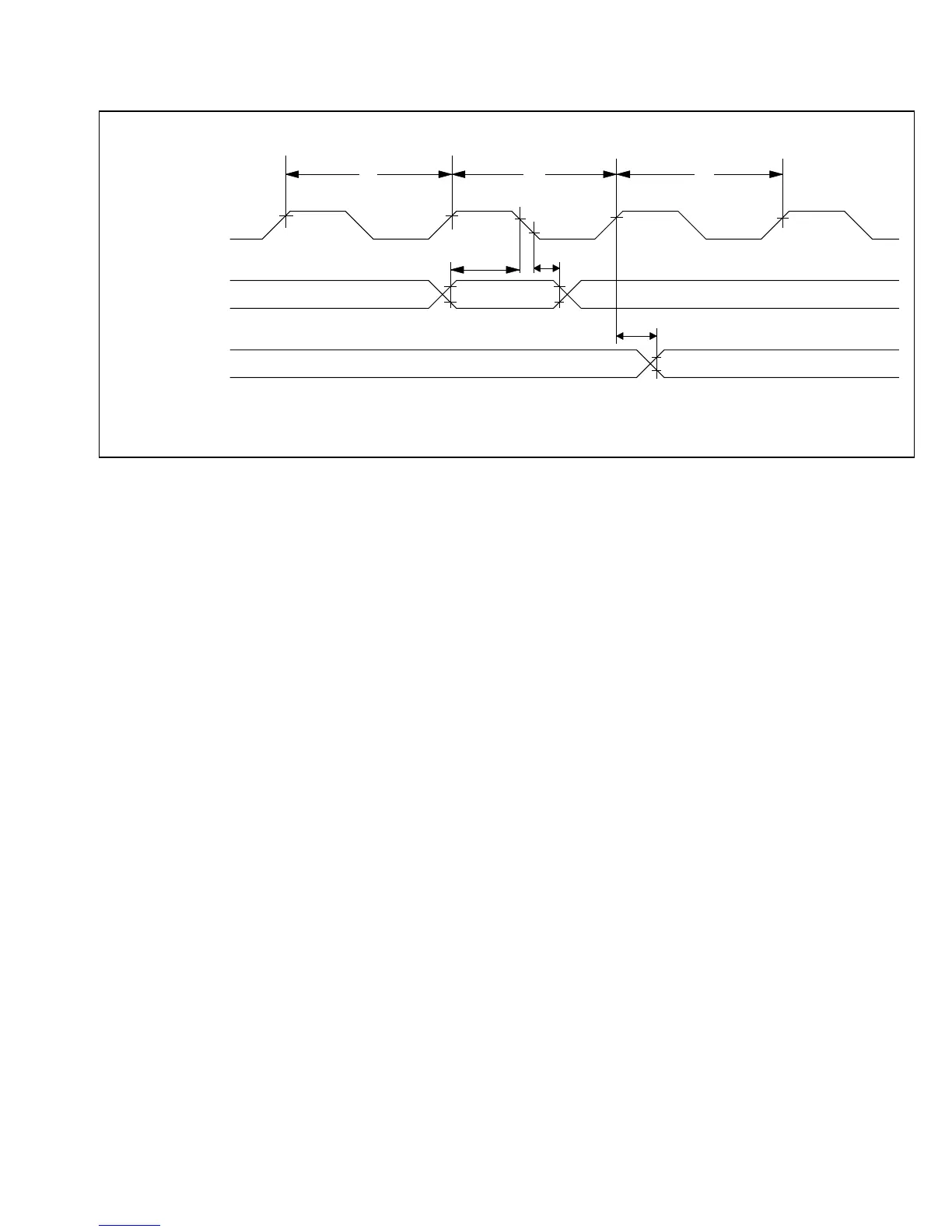

Figure 20-13 I/O Port Input/Output Timing

333
