Synchronization on External Clock Source: When the external clock source is selected, the
free-running timers can be synchronized by halting their external clock inputs, then writing
identical values in their free-running counters.
10.7 Sample Application
In the example below, one free-running timer channel is used to generate two square-wave outputs
with a 50% duty factor and arbitrary phase relationship. The programming is as follows:
1. The CCLRA bit in the TCSR is set to “1.”
2. Each time a compare-match interrupt occurs, software inverts the corresponding output level
bit in the TCSR.
10.8 Application Notes
Application programmers should note that the following types of contention can occur in the free-
running timers.
Contention between FRC Write and Clear: If an internal counter clear signal is generated
during the T3 state of a write cycle to the lower byte of a free-running counter, the clear signal
takes priority and the write is not performed.
- - - - - -
- - - - - -
- - - - - -
- - - - - -
FRC
H’FFFF
OCRA
OCRB
H’0000
FTOA pin
FTOB pin
Clear counter

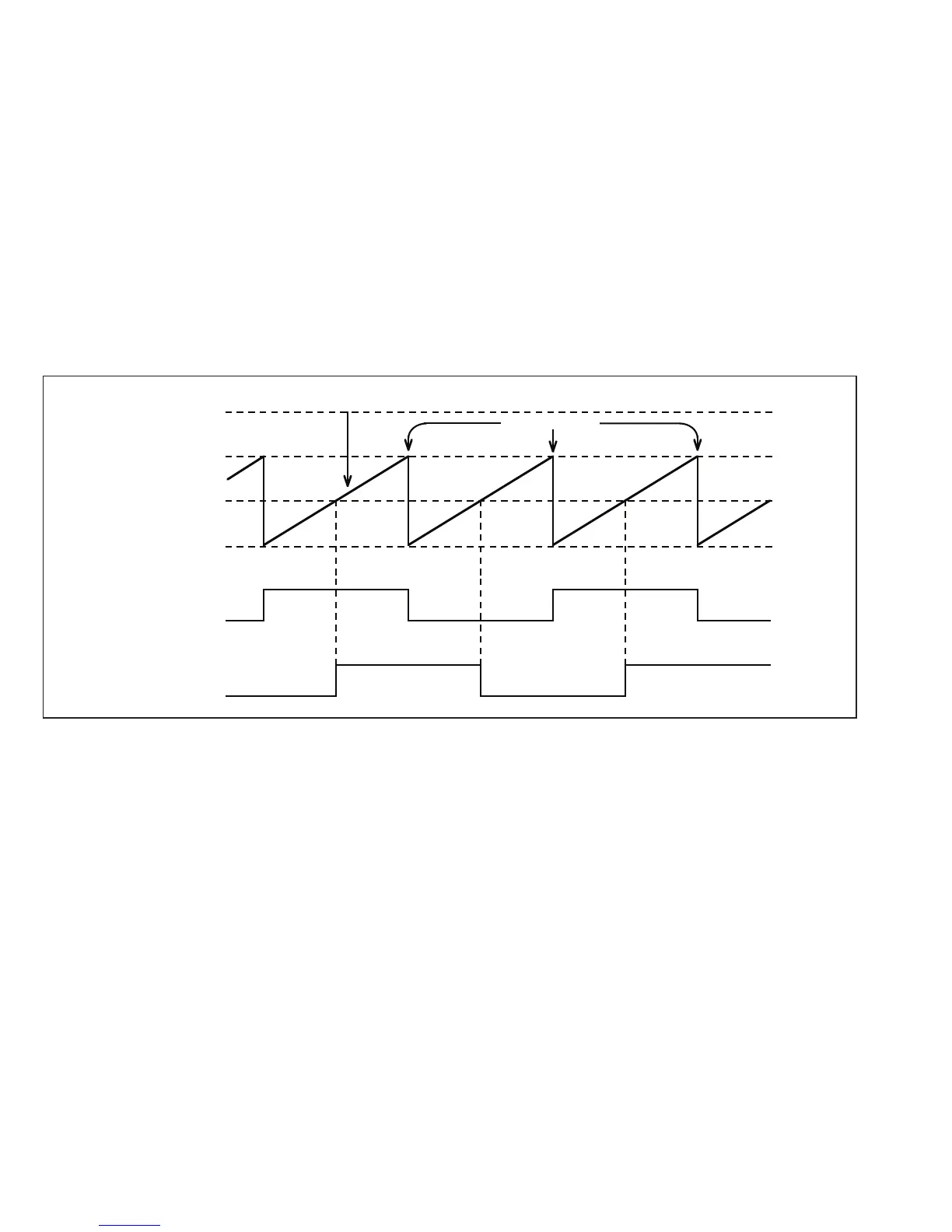

Figure 10-11 Square-Wave Output (Example)
