Hypertherm MicroEdge User Manual

Password Setups 314
Example:

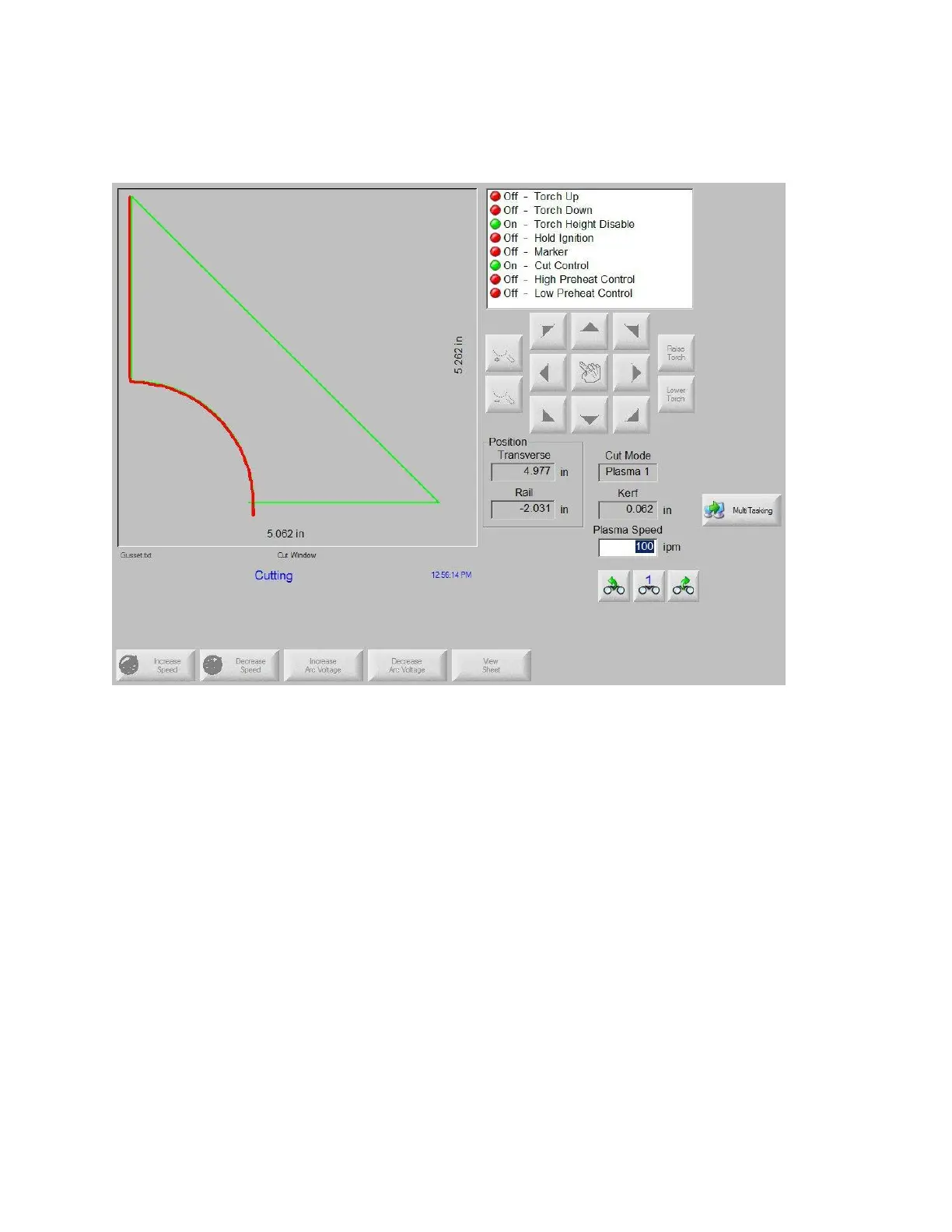

For the example illustrated below, the Torch Height Disable output will be activated based on the
values of the setup parameters.
Plasma Hi/Lo Percentage Value 90%
Distance to Corner Value .2 inches
Distance from Corner Value .2 inches
Tangent Angle Value 20 Degrees
For the above listed values, the Torch Height Disable output is active .5 inches before and .5 inches
after each 90 degree corner. The THD output is also activated as the torch accelerates away from
the pierce and through the arc due to the speed being below the Plasma Hi/Lo value. Finally,
because the arc intersects at greater than the 20 degree tangent angle, the THD output is activated
for .2 inches before and after the beginning of the arc, and is activated for .2 inches before and after
the end of the arc.
