Home Axes

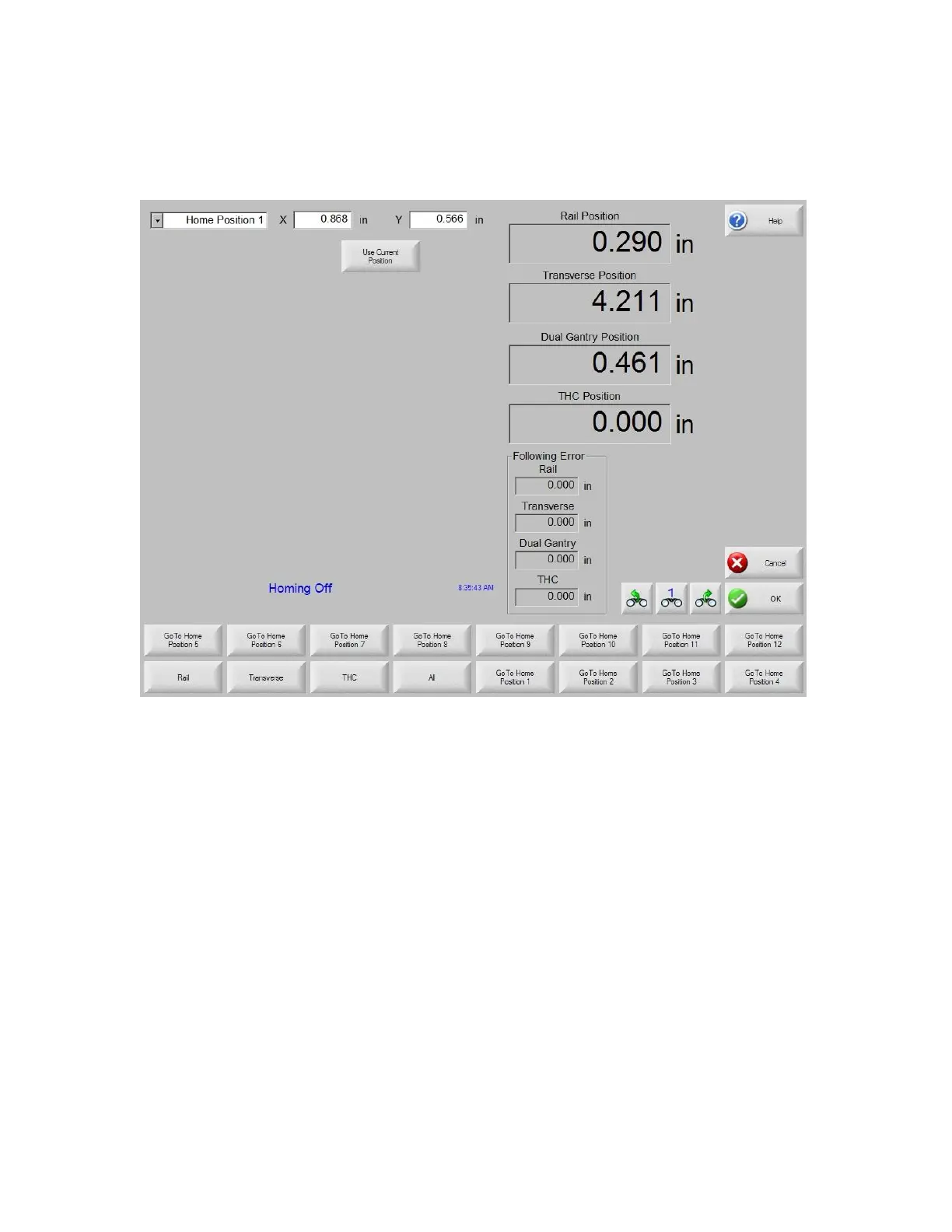

From the Home screen, each axis or all axes can be "homed". In addition, the Transverse and Rail
axes can be sent to one of four programmed alternate home positions.
The Home feature is used to set a known absolute physical position location on the cutting table that
is used for referencing future manual “Go to Home” and other motion commands. This is generally
performed through activation of a home switch positioned on the appropriate axis giving it a known
physical location.
When the Homing Command is entered at the control, the control will move the axis towards the
Home Switches at the Fast Home Speed until the switches have been activated. Once the switches
have been activated, motion stops and then the axis moves in the opposite direction off switch at the
Slow Home Speed. The moment that the switch is deactivated, the position is recorded at the control
providing an absolute reference point for future motion commands.
Transverse
Pressing the Transverse soft key causes the automated homing procedure to be executed. This
procedure generally produces machine motion in the Transverse axis, depending on the homing
parameters set in the Setups.
Rail
Pressing the Rail soft key causes the automated homing procedure to be executed. This procedure
generally produces machine motion in the Rail axis, depending on the homing parameters set in the
Setups.
