Setups 53

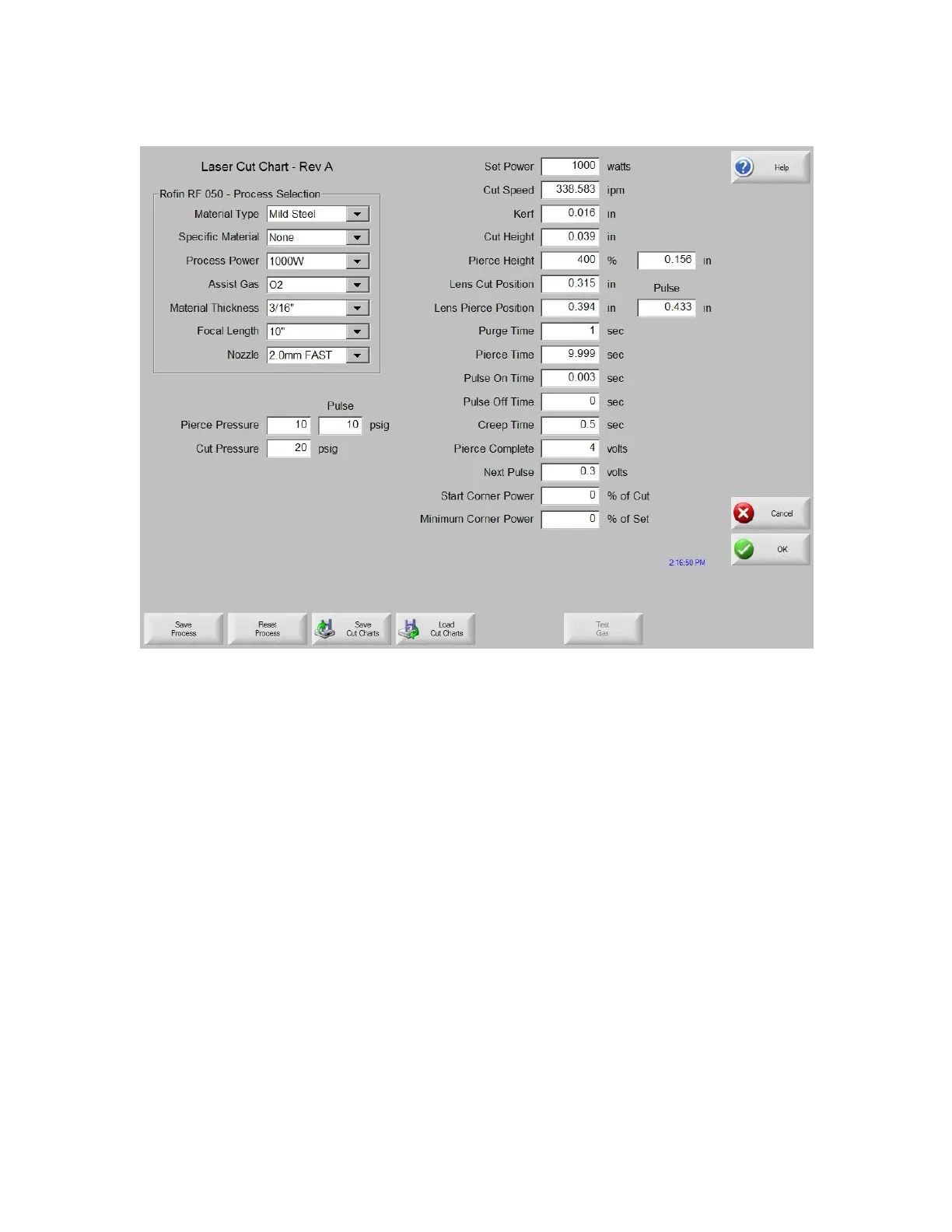

Laser Cut Chart
The Cut Chart Database (cut process parameters) transmitted to configure the laser head are based
on the following process variables. All values are user definable.
Material Type
The Material Type, such as Mild Steel, Stainless Steel or Aluminum, may be selected.
Specific Material
This is a user defined value to allow the user to create a custom database based on unique
characteristics of the material type. Double click on the field or press the Plus key “+” to enter an new
material name or “-“ to delete on the keypad.
Process Power
The appropriate process power (Wattage) for the material thickness and material type for the desired
process.
Assist Gas
The appropriate Assist Gas for the desired process.
Material Thickness
The material thickness for the selected material type.
