Automated Plasma Interface 457
Outputs

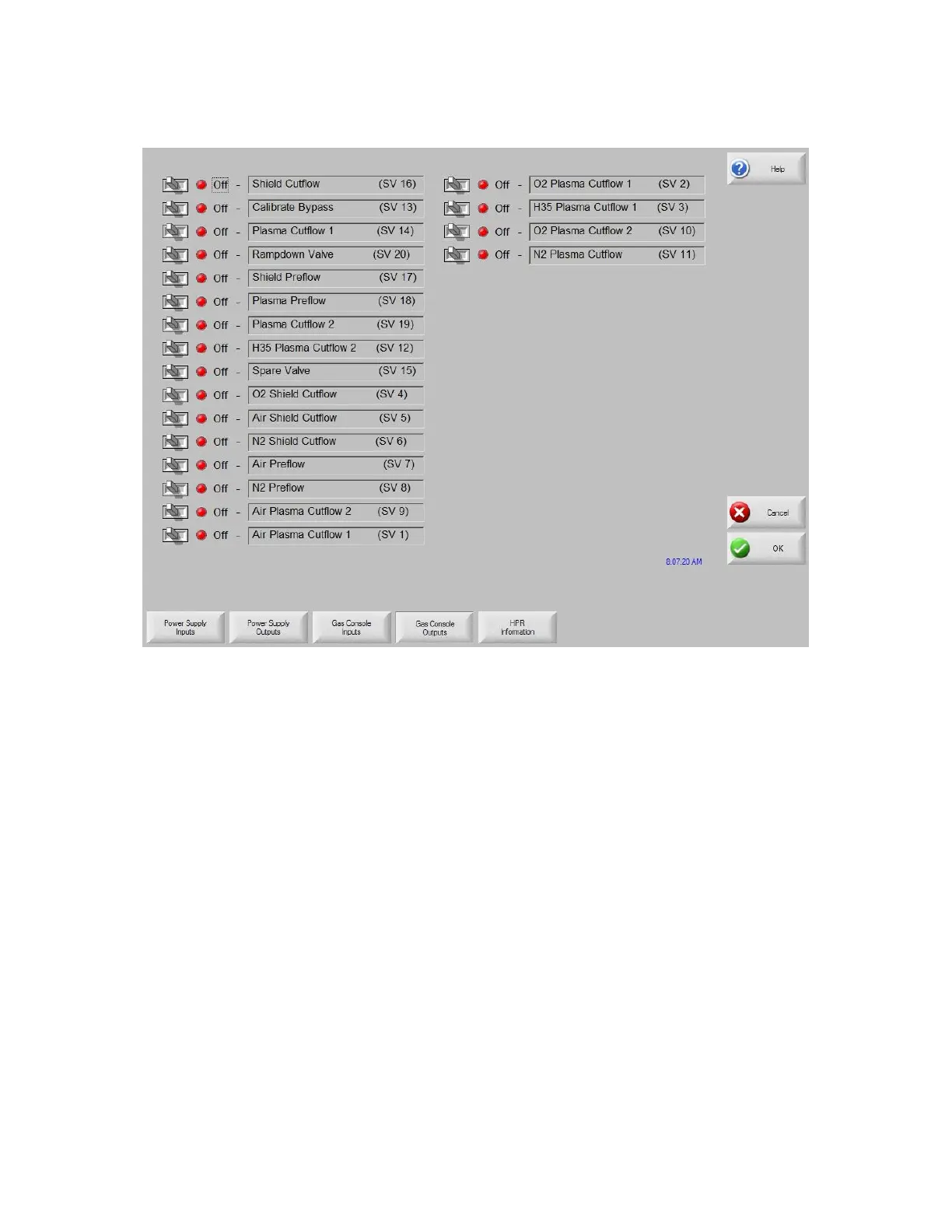

Note: Similar to the standard Output Diagnostic screen, the output screen shows the current status of
the listed supply outputs. Note: Outputs for the supply cannot be activated through the diagnostic
screen.
Serial Communication Interface
RS-422C Connections to HPR™ CNC Interface
Control (male) Supply (male)
Signal Name DB-9 Pin Signal Name DB-37 Pin
TxD- 2 RxD- 1
RxD- 3 TxD- 2
TxD+ 4 RxD+ 20
RxD+ 7 TxD+ 21
RS-422C Connections to HD4070
®
CNC Interface
Control (male) Supply (male)
Signal Name DB-9 Pin Signal Name DB-37 Pin
TxD- 2 RxD- 2
RxD- 3 TxD- 1
TxD+ 4 RxD+ 21
RxD+ 7 TxD+ 20
