Section

7: TSP command reference Series 2600B System SourceMeter® Instrument

Reference Manual

7-36 2600BS-901-01 Rev. B / May 2013

Details

Data for pulsed voltage measurements are stored in the reading buffer specified by the buffer input parameter.

This function configures a linear pulsed current sweep with a voltage measurement at each point. Measurements

are made at the end of the ton time.

The magnitude of the first pulse will be start amperes; the magnitude of the last pulse will be stop amperes.

The magnitude of each pulse in between will be step amperes larger than the previous pulse, where:

step = (stop - start) / (points - 1)

This function does not cause the specified smu to output a pulse train. It does check to see if all the pulse

dimensions can be achieved, and if they can, assigns the indicated tag or index to the pulse train. The

InitiatePulseTest(tag) and InitiatePulseTestDual(tag1, tag2) functions are used to initiate a

pulse train assigned to a valid tag.

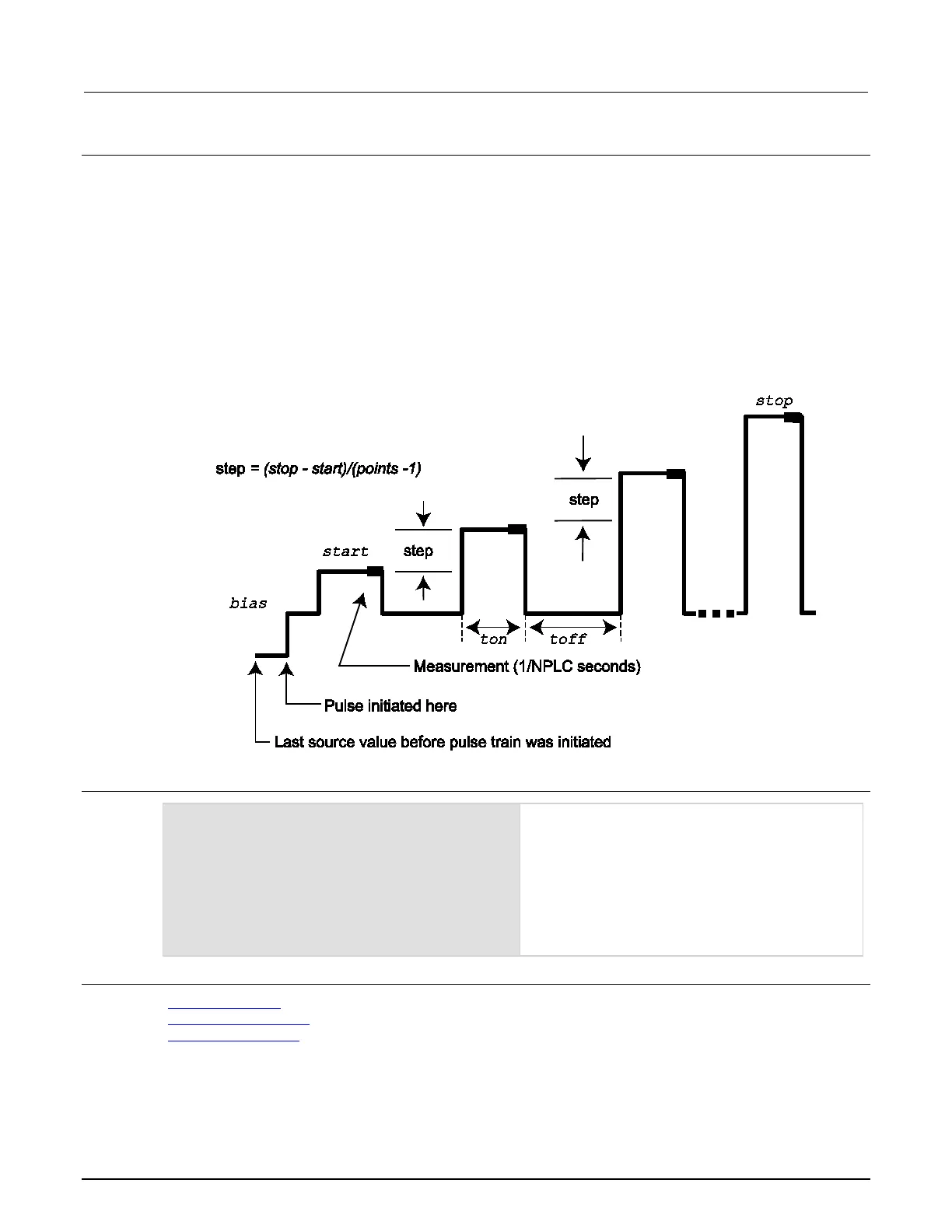

Figure 128: ConfigPulseIMeasureVSweepLin()

Example

ConfigPulseIMeasureVSweepLin(smua, 0,

0.01, 0.05, 1, 1e-3, 0.1, 20,

smua.nvbuffer2, 3)

Set up a pulsed sweep that will use System

SourceMeter

instrument channel A. The pulsed

sweep will start at 10 mA, end at 50

mA, and return to

a 0 mA bias level between pulses. Each pulsed step

will be on for 1 ms, and then at the bias level for

100 ms. The voltage limit will be 1 V during the entire

pulsed sweep. The pulse train will be comprised of 20

pulsed steps and the pulse train will be assigned a

tag index of 3.

Also see

InitiatePulseTest() (on page 7-103)

InitiatePulseTestDual() (on page 7-104)

KIPulse factory script (on page 5-21)
