System SourceMeter® Instrument Reference Manual Appendix C:
LAN concepts and settings
2600BS-901-01 Rev. B / May 2013 C-19
1. Click OK in the ASCII Setup dialog box. The Properties dialog box is displayed.
2. Click OK in the Properties dialog box.

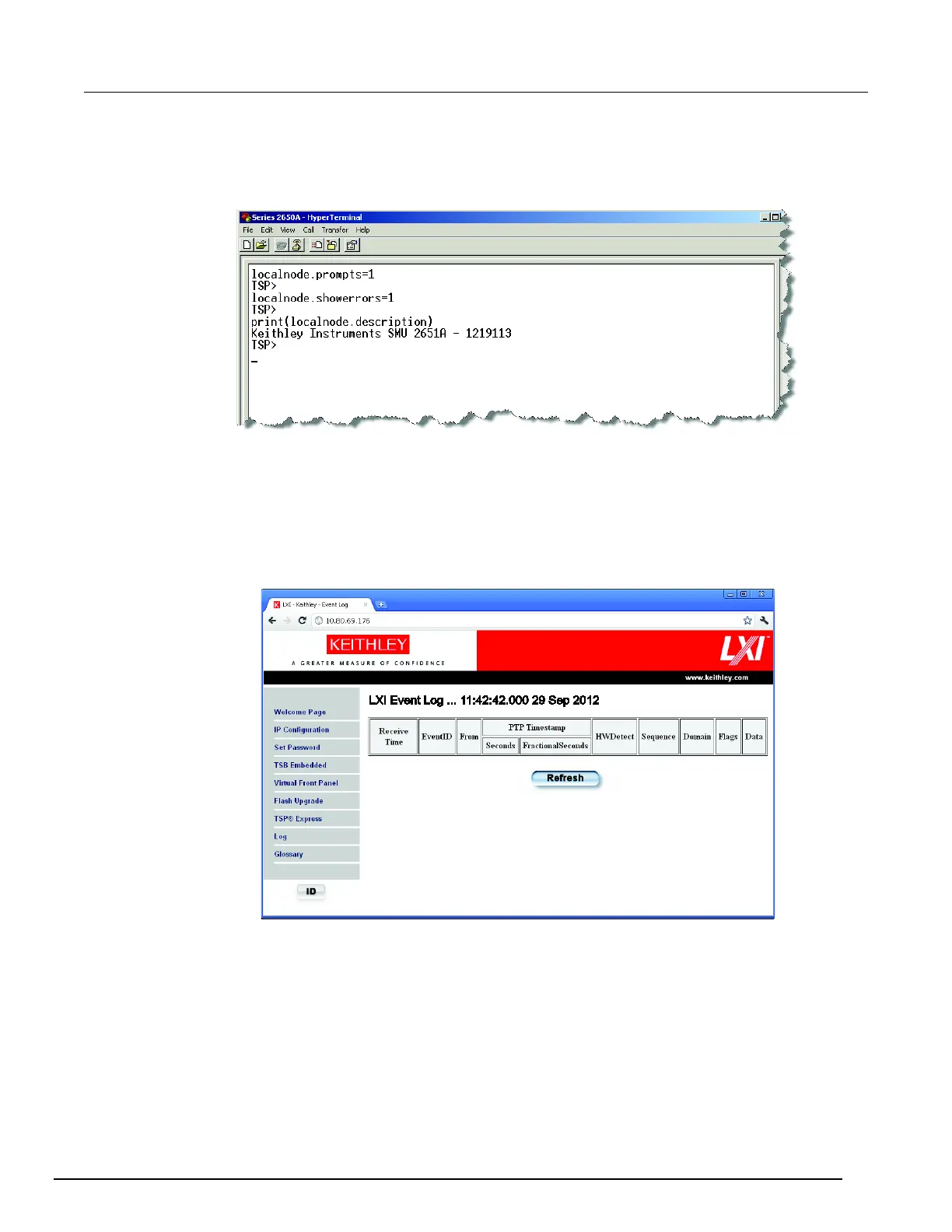

Use the HyperTerminal window to interact directly with the instrument.
Logging LAN trigger events in the event log
You can use the event log to record all LXI triggers generated and received by the Series 2600B, and
you can view the event log using any command interface or the embedded web interface. The
following figure shows the view of the LXI event log from the embedded web interface.
Figure 164: Series 2600B event log
The timestamp, event identifier, IP address, and the domain name identify the incoming and outgoing
LXI trigger packets. The following table provides detailed descriptions for the columns in the
event log.
