5. Exhaust gas recirculation (EGR) system
5.1 Structure of EGR system

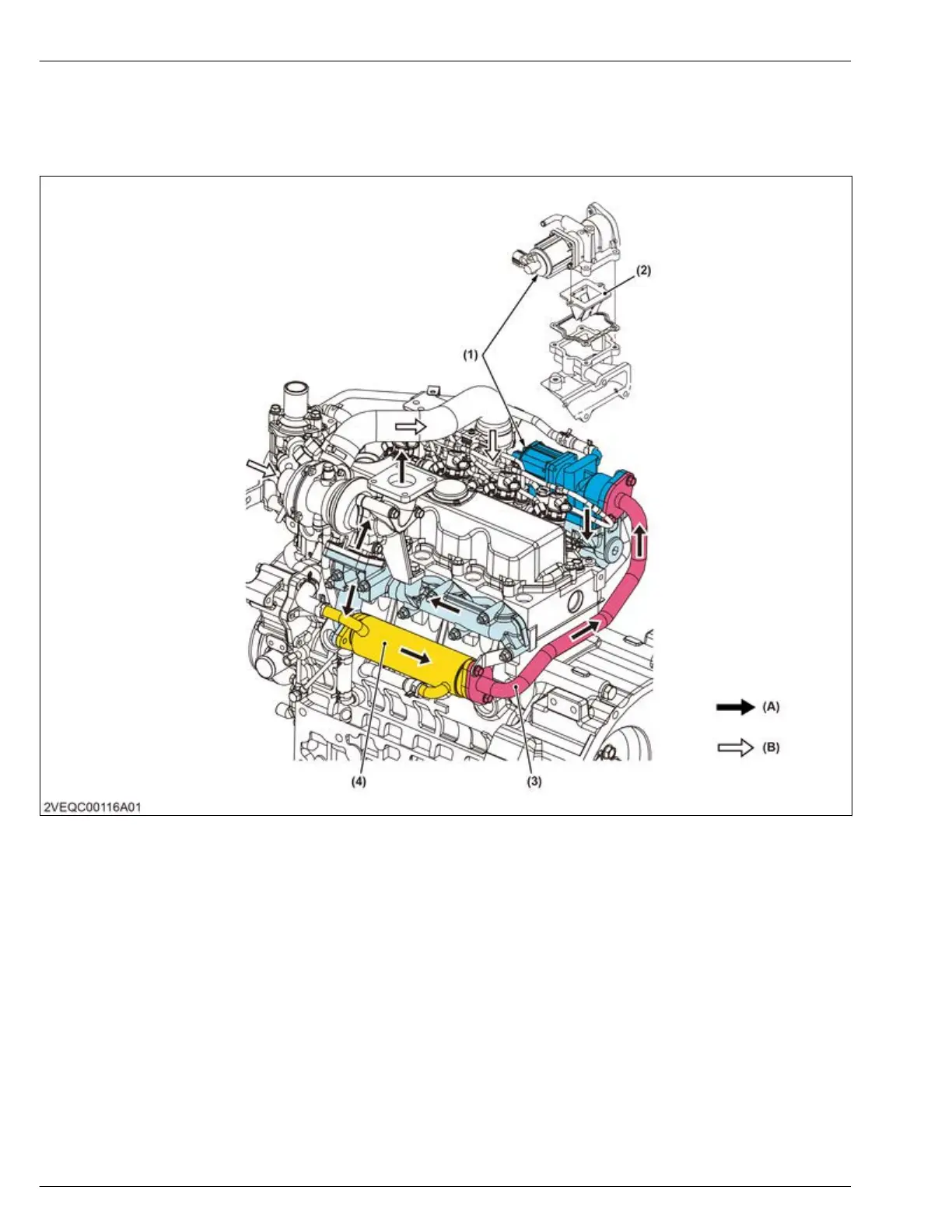

The EGR system is made up of the EGR valve, cooler, and pipe.
(1) EGR valve
(2) Reed valve
(3)
EGR pipe
(4) EGR cooler
(A) Exhaust gas flow
(B) Intake air flow
