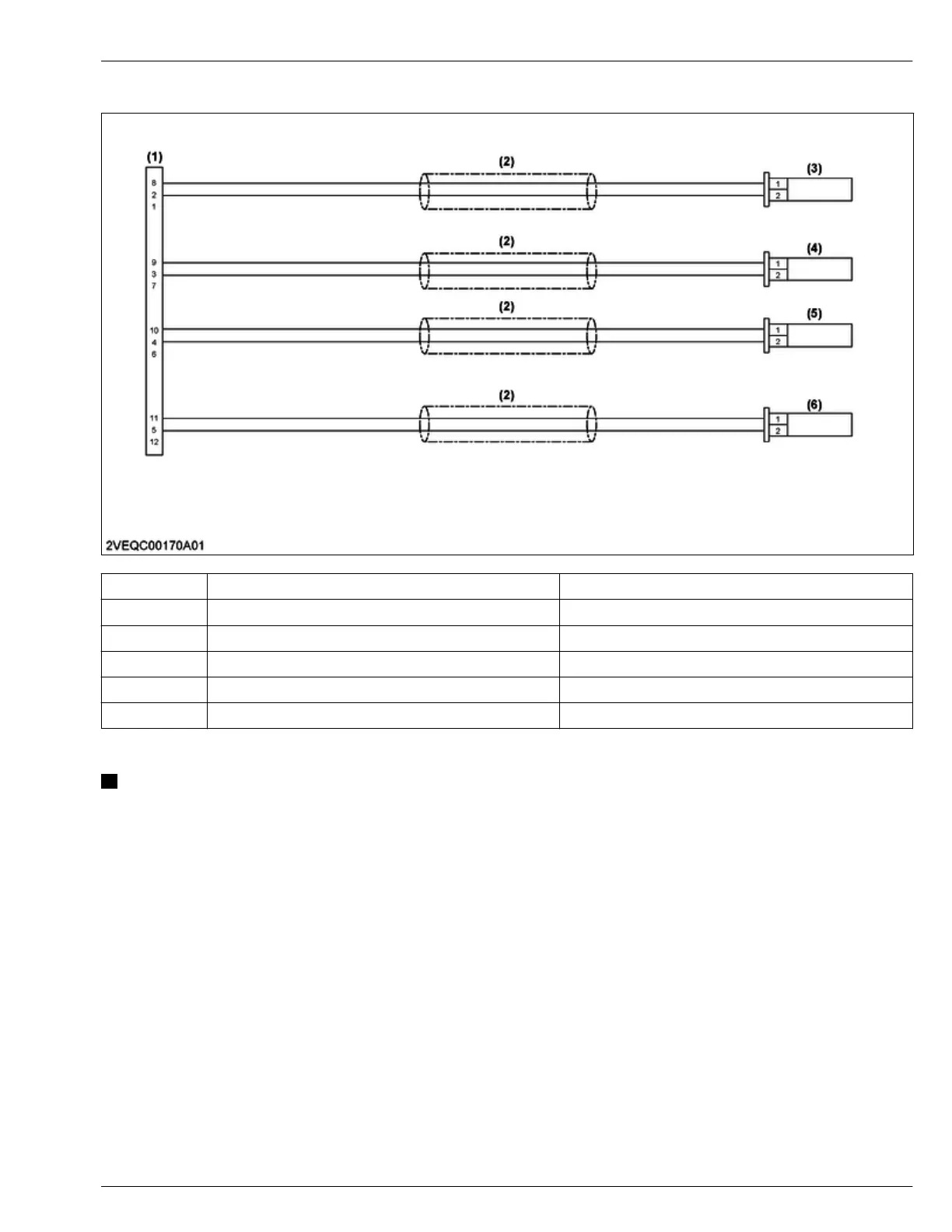

6.2 Injector intermediate harness (Engine side harness)
(1) CN305 Pin plated terminal
(2) － Shield cable
(3) CN301 Injector 1
(4) CN302 Injector 4
*
(5) CN303 Injector 3
(6) CN304 Injector 2
* Injector 4 is equipped only V2403 model.
NOTE
• The figure shows the pin arrangement of the connector housing viewed from wire side, not mating side.
GENERAL MACHINE INFORMA
TION
6. Wiring diagram 2. GENERAL
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
2-23
KiSC issued 12, 2018 A
