Kubota D1803-CR-E4 User Manual

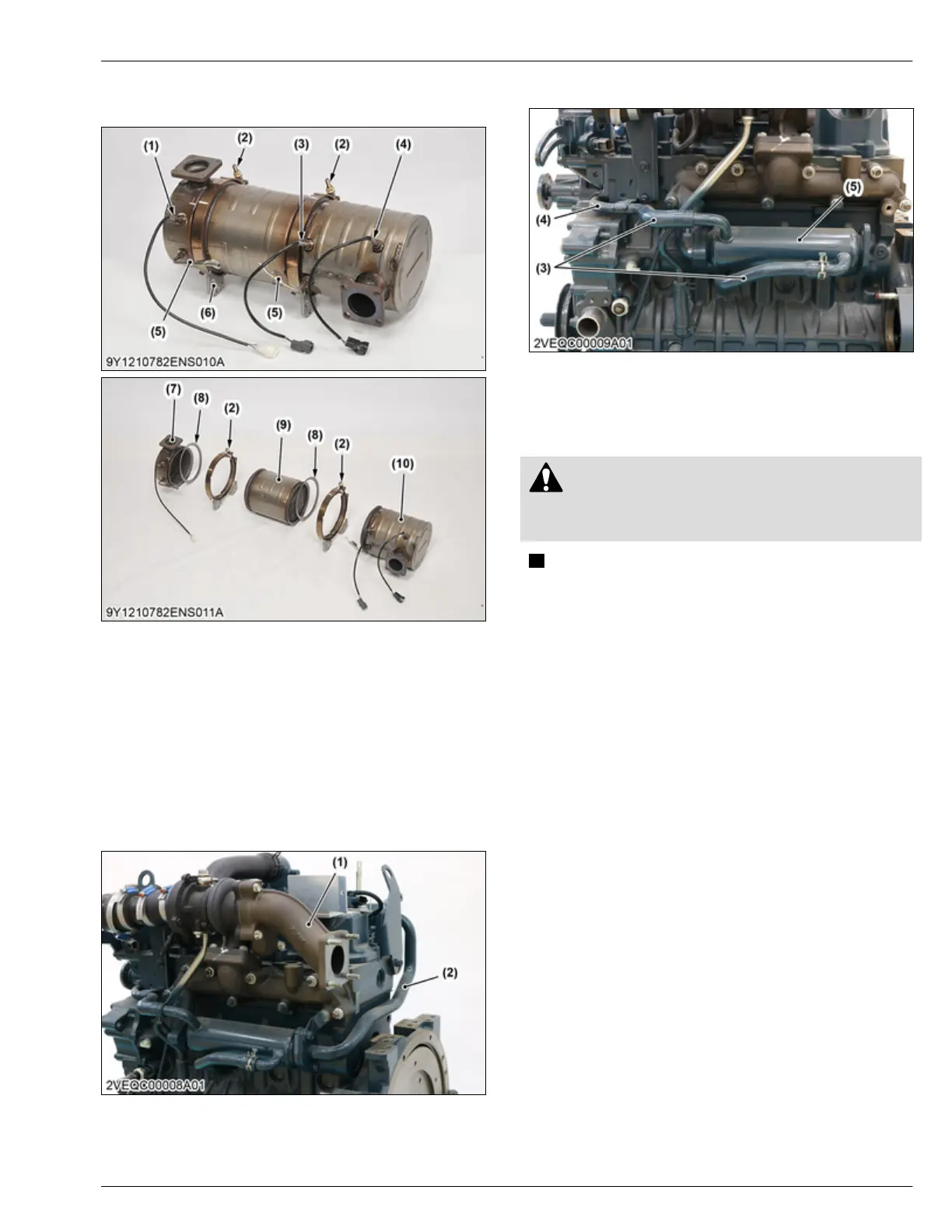

2. Separate
the
Catalyst (DOC) (10), Filter comp
(DPF) (9) and Body (DPF outlet) (7) respectively.
(1) Exhaust gas temperature
sensor (T2)
(2) DPF mounting bracket
(3)
Exhaust gas temperature
sensor (T1)
(4) Exhaust gas temperature
sensor (T0)
(5) Differential pressure pipe
(6) DPF stay 1
(7) Body (DPF outlet)
(8) Gasket
(9) Filter comp (DPF)
(10) Catalyst (DOC)
5.7 Removing EGR cooler
1. Remove the muffler flange (1).
2. Remove the EGR pipe (2).
(1) Muffler flange (2) EGR pipe
3. Remove the EGR cooler hose (3).
4.
Remove the EGR cooler (5).
5.
Remove the EGR cooler pipe (4).
(3) EGR cooler hose
(4) EGR cooler pipe
(5)
EGR cooler
5.8 Removing turbocharger
CAUTION
• While the
engine operates or just after it stops,
do not touch the hot turbocharger assembly.
NOTE
• When you remove the turbocharger assembly,
do not let dust, dirt and other unwanted
materials in the oil pipes.
1. Remove the inlet hose (3), (4).
2. Remove the oil pipe joint screw (1).
3.
Remove the oil pipe (2).
4. Remove the return pipe (crankcase side) (6).
SERVICING
5. Disassembling 4. ENGINE
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
4-119
KiSC issued 12, 2018 A
