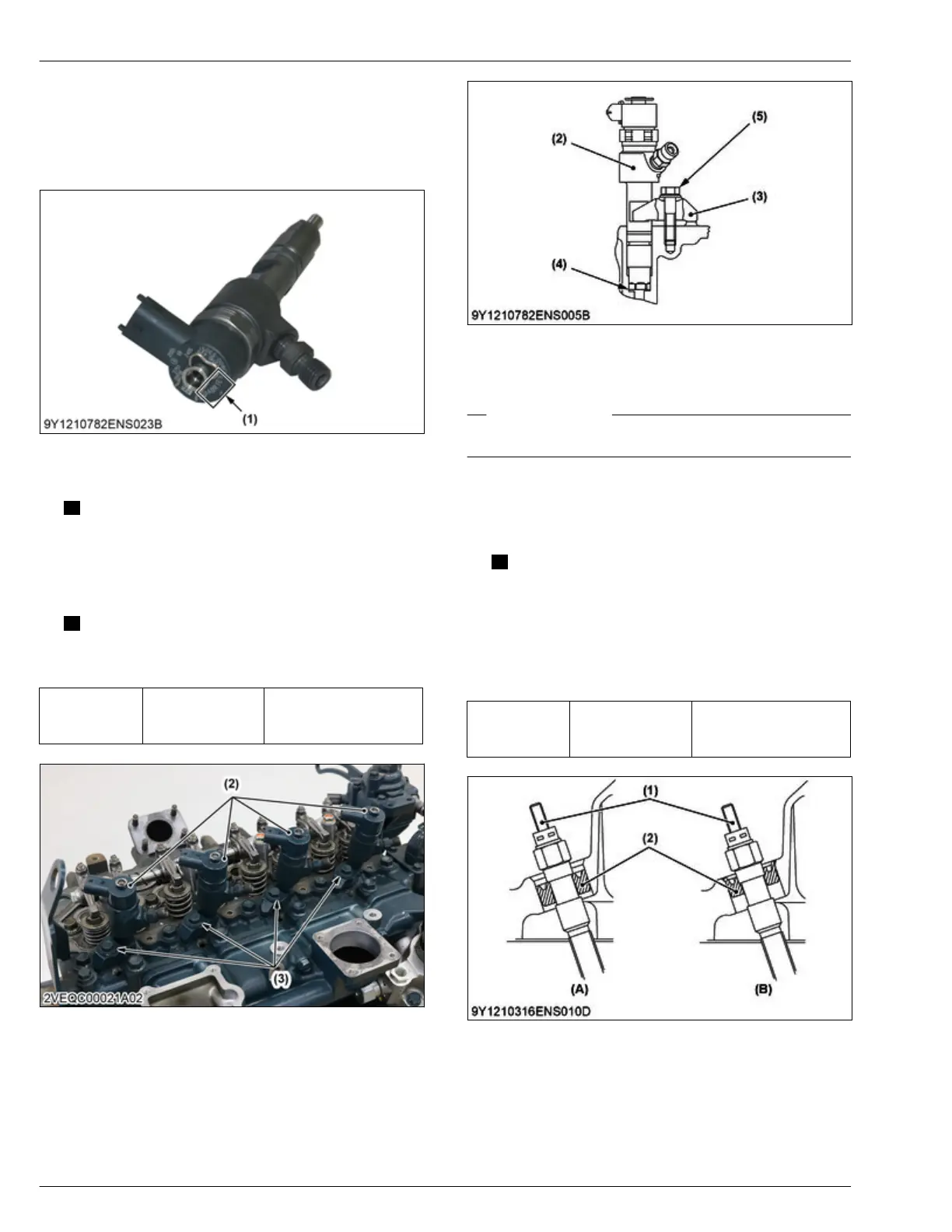

Kubota D1803-CR-E4 User Manual

• Store
the injectors so they do not get any dust
in them.
•
If replace the injectors, it is necessary to
perform injector correction (writing the injector
ID codes (1) to the engine ECU).
(1) Injector ID code
1. Install the injector (2) and its gasket (4).
NOTE
• Replace the
injectors' gaskets (4) with new
ones.
2. Install the injector clamp (3) and tighten to the
specified torque.
NOTE
• When installing
injector clamps (3), correctly
set them as shown in the drawing.
Tightening tor-
que
Injector clamp
screw (5)
23.5 to 27.5 N⋅m
2.40 to 2.80 kgf⋅m
17.4 to 20.2 lbf⋅ft
(2) Injector
(3) Injector clamp
(4)
Gasket
(5) Injector clamp screw
RELATED PAGE
7.56 Replacing injector on page 4-191
6.31 Installing glow plug
1. Install the glow plugs (1).
NOTE
• Adjust the
direction of the ditch to the
terminal side when the seal (2) is installed in
the glow plug (1).
• After installing the glow plug (1), make sure
that the seal (2) was set to the specified
position.
Tightening tor-
que
Glow plug
14.7 to 19.6 N⋅m
1.50 to 1.99 kgf⋅m
10.9 to 14.4 lbf⋅ft
(1) Glow plug
(2) Seal
(A)
Good
(B) Bad
4. ENGINE
SERVICING
6. Assembling
4-152
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
