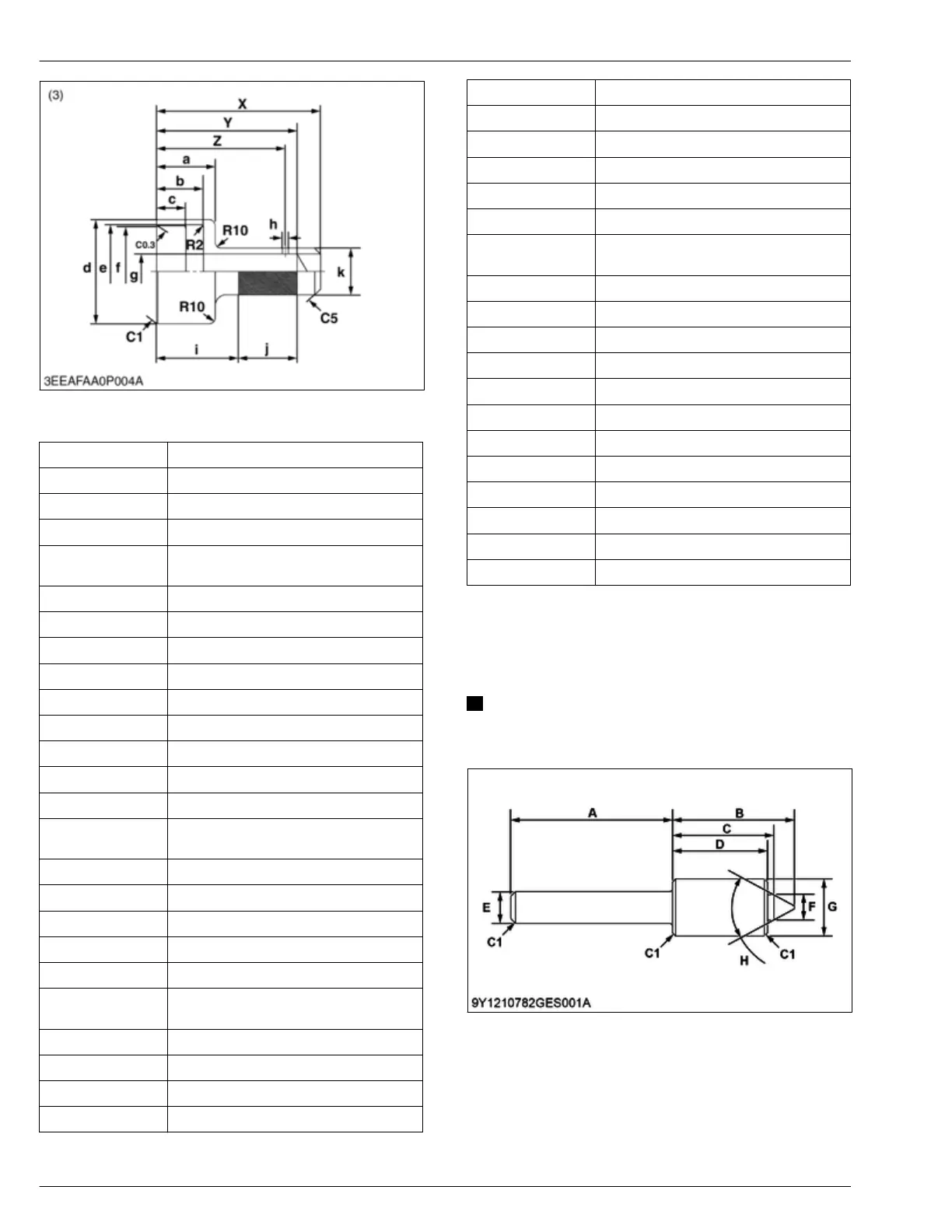

Kubota D1803-CR-E4 User Manual

(1) Stopper
(2)
Sleeve guide
(3)
Auxiliary socket for pushing
A 80.0 mm (3.15 in.)
B 60.10 to 60.30 mm (2.367 to 2.374 in.)
C 80.0 mm dia. (3.15 in. dia.)
D 85.0 mm dia. (3.35 in. dia.)
E
60.10 to 60.30 mm dia. (2.367 to
2.374 in. dia.)
F 26.30 to 26.40 mm (1.036 to 1.039 in.)
G 25.85 to 25.90 mm (1.018 to 1.019 in.)
H 15.0 mm (0.591 in.)
I 5.0 mm (0.20 in.)
J 42.0 mm (1.65 in.)
K 30.50 to 30.60 mm (1.201 to 1.204 in.)
L 23.0 mm (0.906 in.)
M 20.0 mm (0.787 in.)
N 2.0 mm (0.079 in.)
O
31.911 to 31.950 mm dia. (1.2564 to
1.2578 in. dia.)
P 30.0 mm dia. (1.18 in. dia.)
Q 5.0 mm dia. (0.20 in. dia.)
R 0.09 rad (5°)
S 25.0 mm dia. (0.984 in. dia.)
T 60.0 mm dia. (2.36 in. dia.)
U
79.80 to 79.85 mm dia. (3.142 to 3.143 in.
dia.)
V 10.0 mm (0.394 in.)
W 0.04 mm dia. (0.002 in. dia.)
X 140 mm (5.51 in.)
Y 120 mm (4.72 in.)
(Continued)
Z 110 mm (4.33 in.)
a 50.0 mm (1.97 in.)
b 39.90 to 40.00 mm (1.571 to 1.574 in.)
c 25.0 mm (0.984 in.)
d 90.0 mm dia. (3.54 in. dia.)
e 81.0 mm dia. (3.19 in. dia.)
f
80.10 to 80.15 mm dia. (3.154 to 3.155 in.
dia.)
g 30.0 mm dia. (1.18 in. dia.)
h 5.0 mm dia. (0.20 in. dia.)
i 70.0 mm (2.76 in.)
j 50.0 mm (1.97 in.)
k 40.0 mm dia. (1.57 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C5 Chamfer 5.0 mm (0.20 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
R1 1.0 mm radius (0.039 in. radius)
R2 2.0 mm radius (0.079 in. radius)
R10 10.0 mm radius (0.394 in. radius)
Material S43C
9. Injection top correction jig
Use for detect and position the sensor in top dead
center position.
NOTE
• This special
tool is not provided, so make it
referring to the figure.
2. GENERAL
SPECIAL TOOLS
9. Injection top correction jig
2-38
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
