3. Install the oil pan (3).
NOTE
• Mount parts
with a liquid gasket within 10
minutes of application.
• Tighten the mounting screws of the oil pan
(3) in diagonal sequence from the center to
tighten equally.
• Install the oil pan (3) with its central drain
plug facing toward the air suction side.

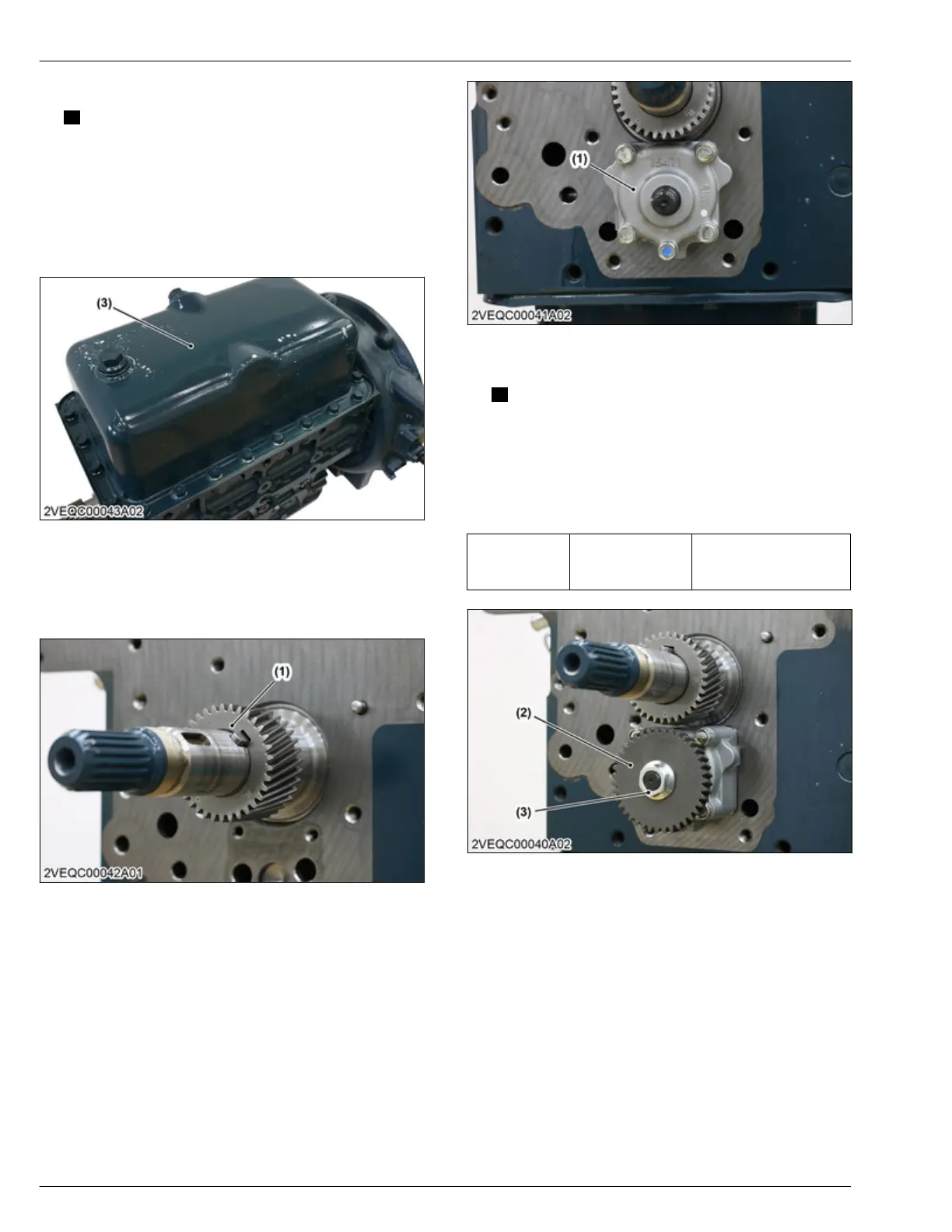

(3) Oil pan
6.13 Installing crank gear
1. Install the crank gear (1).
(1) Crank gear
2. Install the idle gear shaft.
6.14 Installing oil pump
1. Install the oil pump (1).
(1) Oil pump
2. Install the oil pump drive gear 1 (2).
NOTE
• After oil
pump drive gear 1 (2) installed,
loosely tighten the oil pump drive gear 1
mounting nut (3).
Tighten the oil pump drive gear 1 mounting
nut (3) completely to the specified torque
after installing oil pump drive gear 2.
Tightening tor-
que
Oil pump drive
gear 1 mounting
nut (3)
78.5 to 88.3 N⋅m
8.01 to 9.00 kgf⋅m
57.9 to 65.1 lbf⋅ft
(2) Oil pump drive gear 1 (3) Oil pump drive gear 1
mounting nut
6.15 Installing camshaft with cam
gear
1. Install the camshaft (1) with cam gear (2).
4. ENGINE
SERVICING
6. Assembling
4-144
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
