6.4 Oil pan
6.4.1 Outline of oil pan
The oil pan stores oil in the engine.
6.4.2 Structure of oil pan
The oil pan is made up of the oil pan body and a drain
plug.

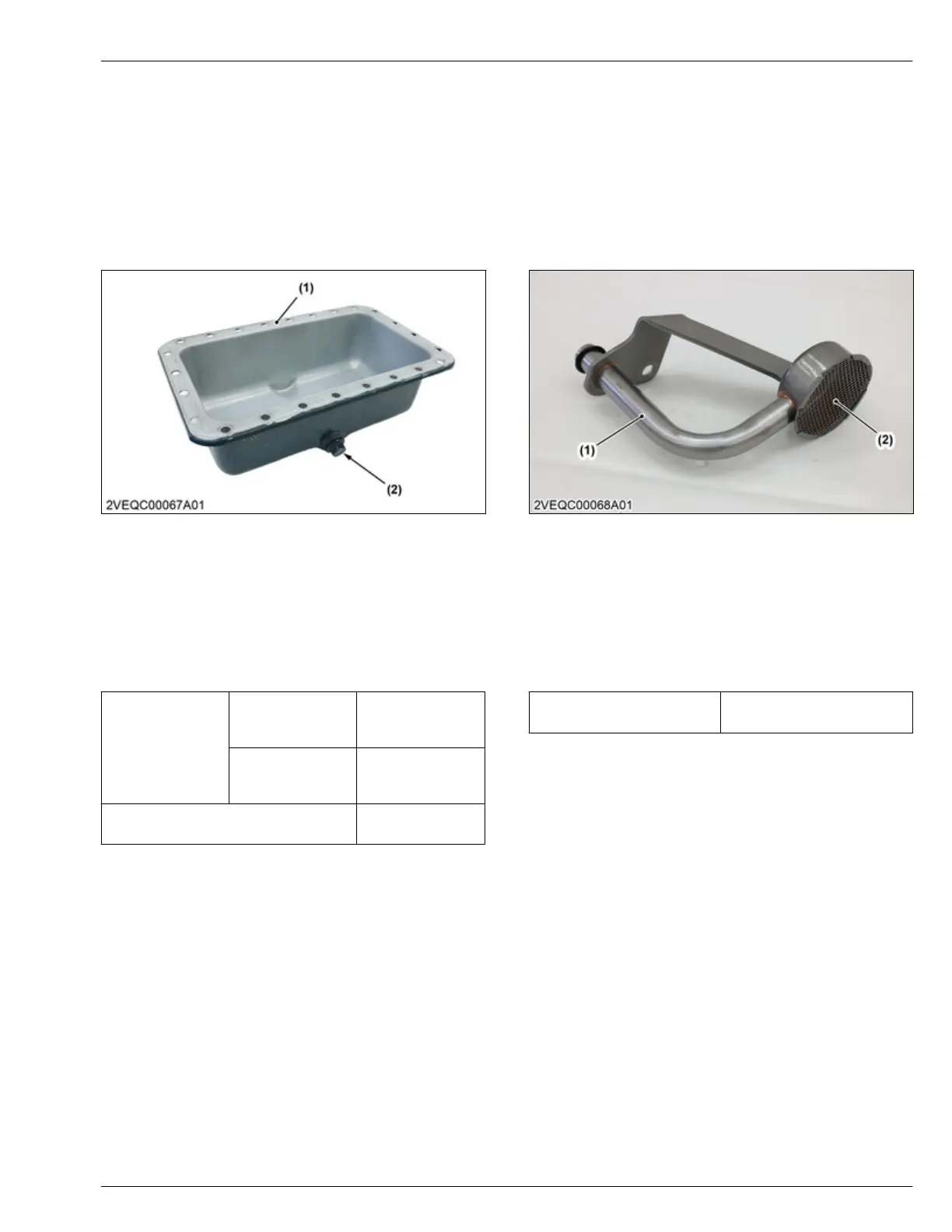

(1) Oil pan (2) Drain plug
6.4.3 Function of oil pan
The oil pan stores oil in the engine and has the role as
receptacle of circulated oil.
6.4.4 Specification of oil pan
Amount of oil
D1803-CR-E4, -
TE4, -TIE4
7.0 L
1.8 U.S.gals
1.5 Imp.gals
V2403-CR-E4, -
TE4, -TE4BG, -
TIE4
9.0 L
2.4 U.S.gals
2.0 Imp.gals
Liquid gasket
Three Bond 1217H
or equivalent
6.5 Oil strainer
6.5.1 Outline of oil strainer
The oil strainer removes foreign material from the oil.
6.5.2 Structure of oil strainer
The oil strainer has a structure of having a mesh
entrance at the tip.
(1) Oil strainer (2) Mesh
6.5.3 Function of oil strainer
The oil strainer removes foreign material contained in
the oil circulating in the engine.
6.5.4 Specification of oil strainer
Mesh pore size
2.0 × 2.5 mm
0.079 × 0.098 in.
