(3) Bearing case cover oil seal
replacing tool 1
(4) Bearing case cover oil seal
replacing tool 2

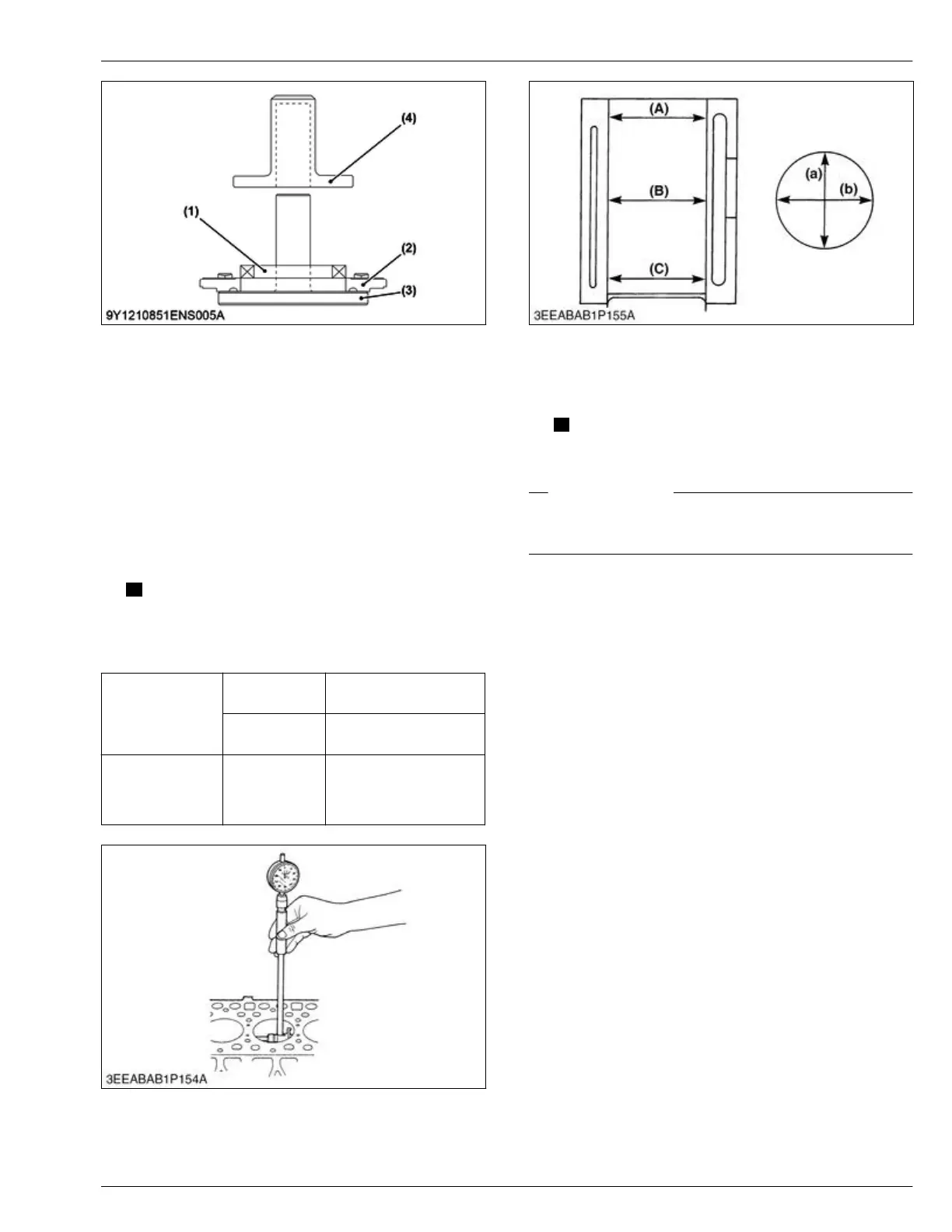

7.38 Checking cylinder wear
Tools required
•
Cylinder gauge
1.
Measure the cylinder bore I.D. at the 6 positions
(see figure) with a cylinder gauge and find the
maximum and minimum inner diameters.
2. Find the difference between the maximum and the
minimum inner diameters.
NOTE
• If the
maximum I.D. or the difference is more
than the service limit, bore and hone it to the
oversize dimension.
Cylinder I.D.
Service specifi-
cation
87.000 to 87.022 mm
3.4252 to 3.4260 in.
Service limit
87.170 mm
3.4319 in.
Difference be-
tween maximum
I.D. and minimum
I.D.
Service limit
0.15 mm
0.0059 in.
(A) Top
(B) Middle
(C) Bottom
(a) Right-angled to piston pin
(b) Piston pin direction
3. Check the cylinder wall for scratches.
NOTE
• If you find deep scratches, bore the cylinder
.
RELATED PAGE
7.39 Adjusting cylinder correction (over size) on page
4-183
7.39 Adjusting cylinder correction
(over size)
Tools required
• Cylinder gauge
1. Measure the cylinder bore I.D. at the 6 positions
(see figure) with a cylinder gauge and find the
maximum and minimum inner diameters.
SERVICING
7. Servicing 4. ENGINE
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
