Kubota D1803-CR-E4 User Manual

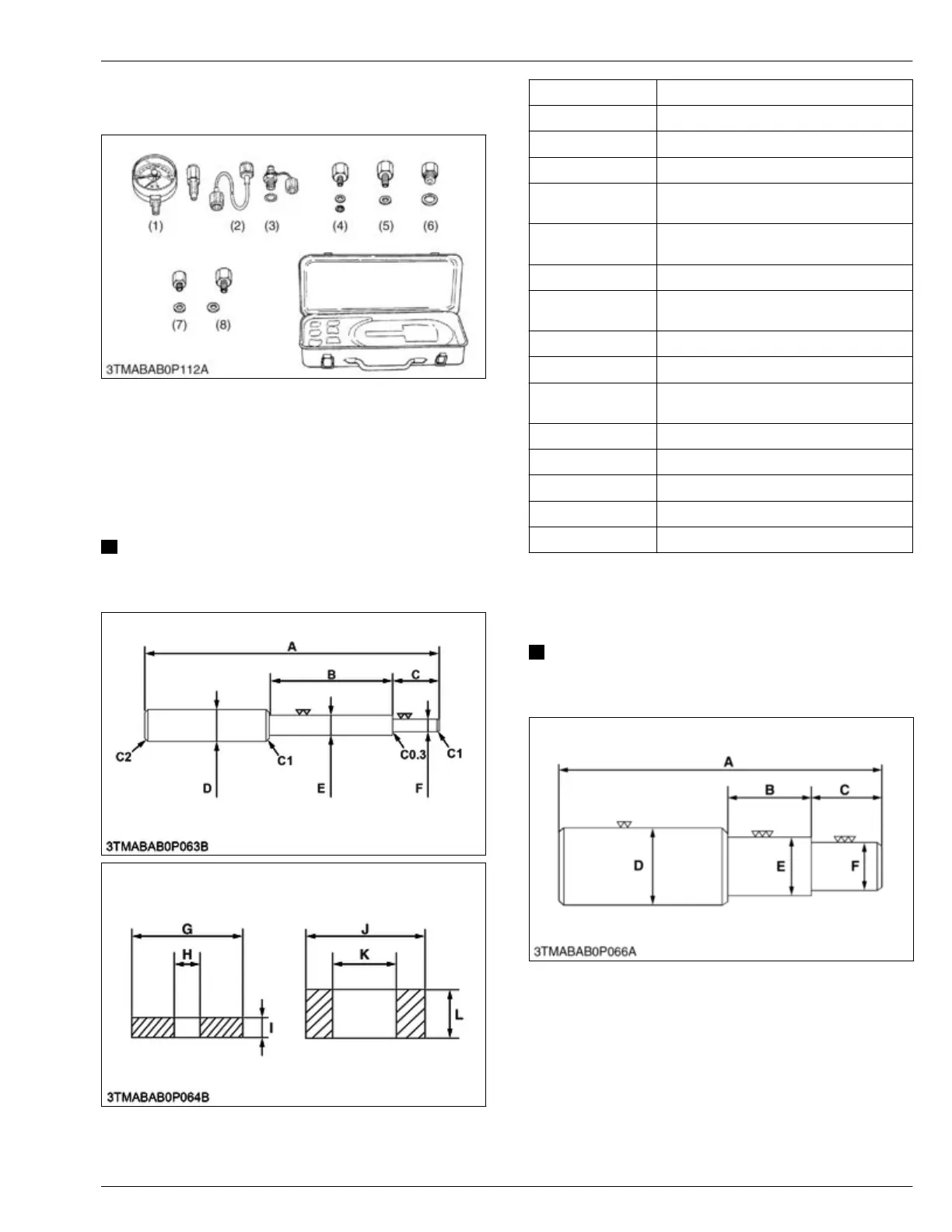

3. Oil pressure tester
Use for measuring the engine oil pressure.
(1) Gauge
(2) Cable
(3)
Threaded joint
(4) Adapter 1
(5) Adapter 2
(6) Adapter 3
(7) Adapter 4
(8) Adapter 5
4. Valve guide replacing tool
Use for press out and press fit the valve guide.
NOTE
• This
special
tool is not provided, so make it
referring to the figure.
A 225 mm (8.86 in.)
B 70 mm (2.8 in.)
C 45 mm (1.8 in.)
D 20 mm dia. (0.79 in. dia.)
E
12.7 to 12.9 mm dia. (0.500 to 0.507 in.
dia.)
F
7.50 to 7.60 mm dia. (0.296 to 0.299 in.
dia.)
G 25 mm dia. (0.98 in. dia.)
H
7.70 to 8.00 mm dia. (0.304 to 0.314 in.
dia.)
I 5 mm (0.2 in.)
J 20 mm dia. (0.79 in. dia.)
K
13.5 to 13.8 mm dia. (0.532 to 0.543 in.
dia.)
L 8.90 to 9.10 mm (0.351 to 0.358 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
Material SS400
5. Bushing replacing tools
Use for press out and press fit the bushing.
NOTE
• This special
tool is not provided, so make it
referring to the figure.
SPECIAL TOOLS
3. Oil pressure tester 2. GENERAL
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
2-35
KiSC issued 12, 2018 A
