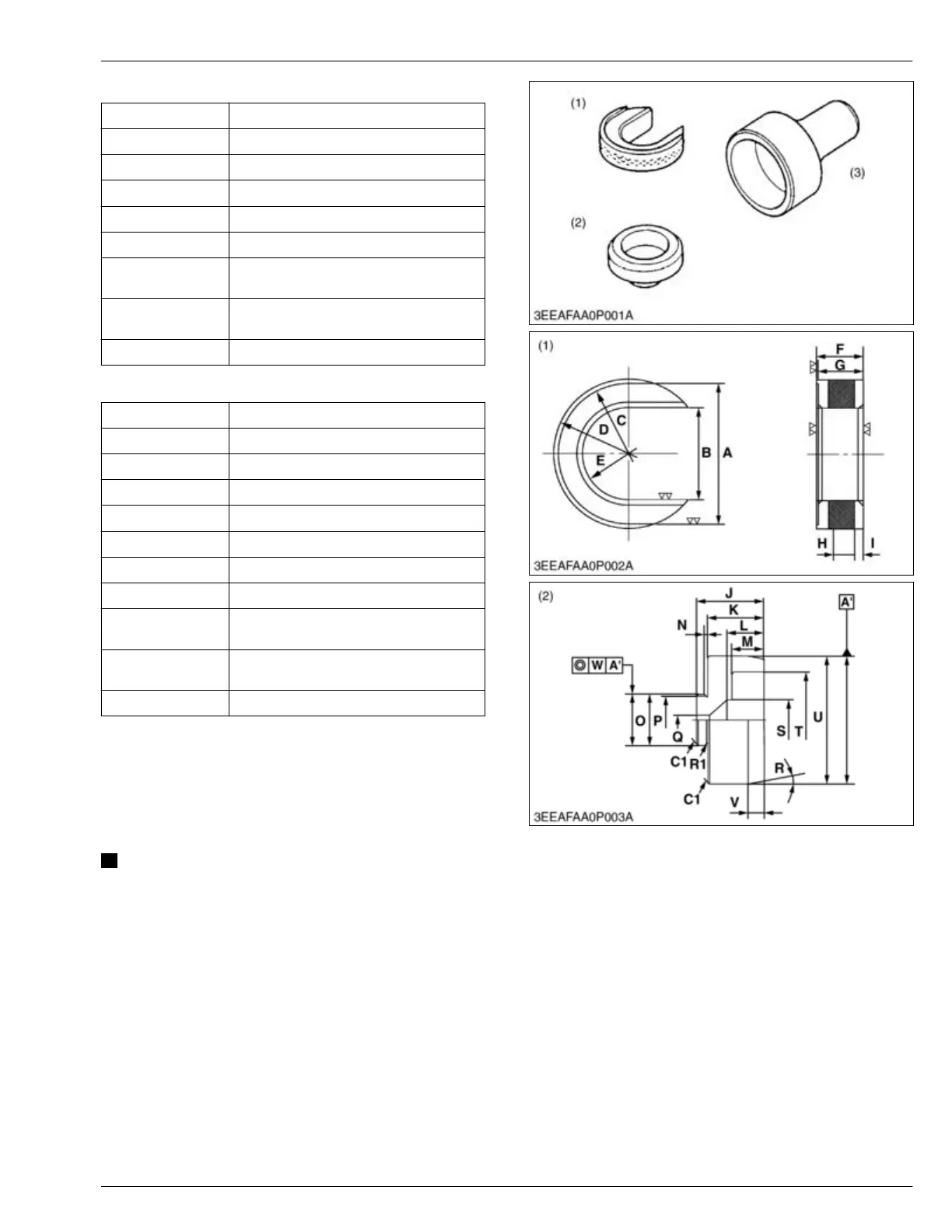

[1] Extracting tool
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G
64.80 to 64.90 mm dia. (2.552 to 2.555 in.
dia.)
H
59.80 to 59.90 mm dia. (2.355 to 2.358 in.
dia.)
Material SS400
[2] Inserting tool
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 9 mm (0.35 in.)
E 4 mm (0.16 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.68 in. dia.)
I
59.80 to 59.90 mm dia. (2.355 to 2.358 in.
dia.)
J
64.80 to 64.90 mm dia. (2.552 to 2.555 in.
dia.)
Material SS400
8. Auxiliary socket for fixing
crankshaft sleeve
Use for fixing the crankshaft sleeve of the diesel
engine.
NOTE
• The special
tools are not provided, so make
them referring to the figure.
SPECIAL TOOLS
8. Auxiliary socket for fixing crankshaft sleeve 2. GENERAL
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
