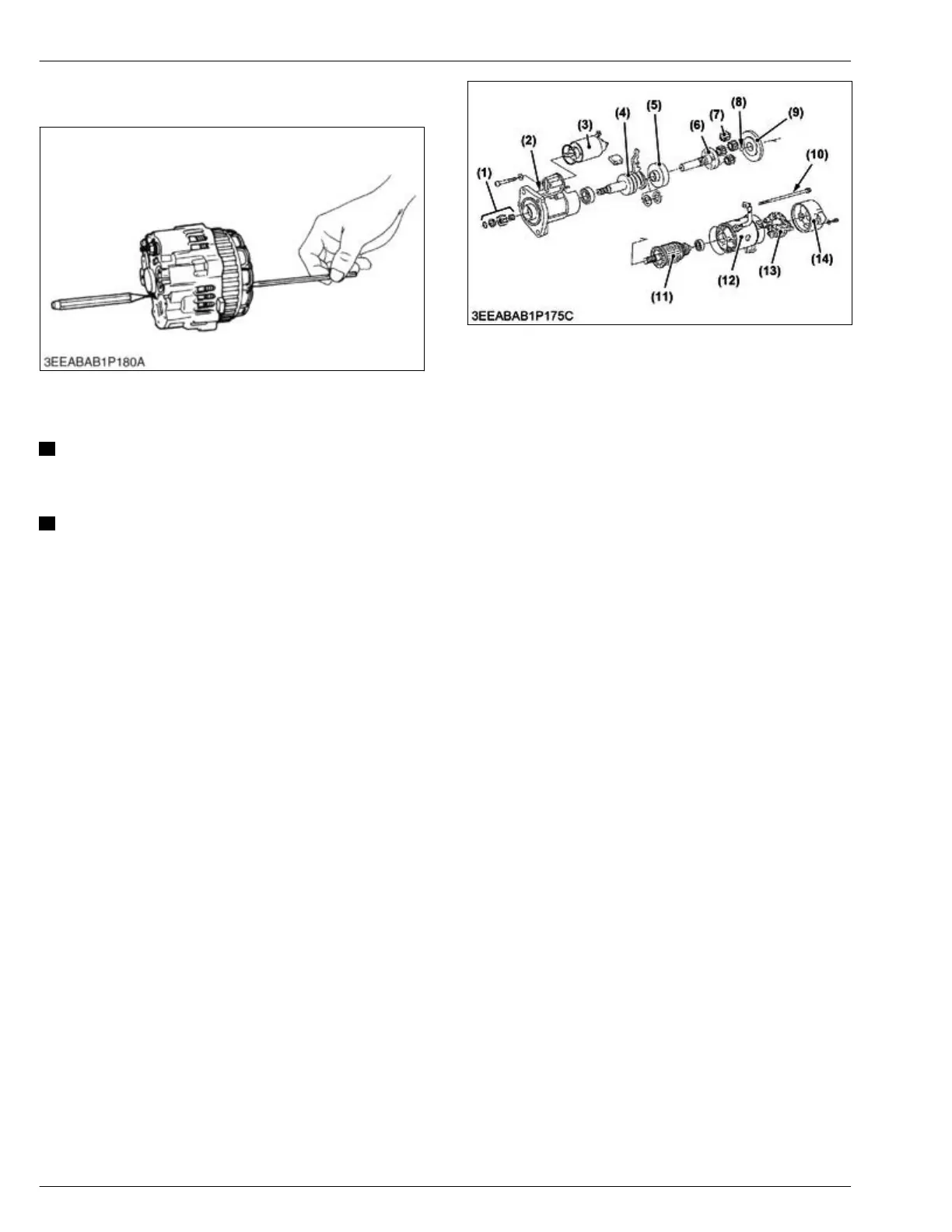

12. Draw
out the pin-pointed punch out of the brush
holder
.
6.2 Assembling starter
IMPORTANT
• Apply grease
to the gears, bearings, shaft's
sliding part and ball.
NOTE
• Do not damage the brush and commutator
.
1. Install the shaft assembly (4), (5), (6) to the front
bracket (2).
2. Install the pinion gear (1).
3. Install the set of packings (9), the 4 planetary gears
(7) and another packing.
4. Install the armature (11) to the yoke (12).
5. Install the ball (8) to the tip of the armature (11).
6. Install the brush holder (13) and rear end frame
(14).
7. Install the 2 brush holder lock screws.
8. Install the 2 through screws (10).
9. Install the solenoid switch (3).
(1) Pinion gear
(2) Front bracket
(3)
Solenoid switch
(4) Overrunning clutch
(5) Internal gear
(6) Shaft
(7) Planetary gear
(8) Ball
(9) Set of packings
(10) Through screws
(11) Armature
(12) Yoke
(13) Brush holder
(14) Rear end frame
4. ENGINE
SERVICING
6. Assembling
4-136
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
