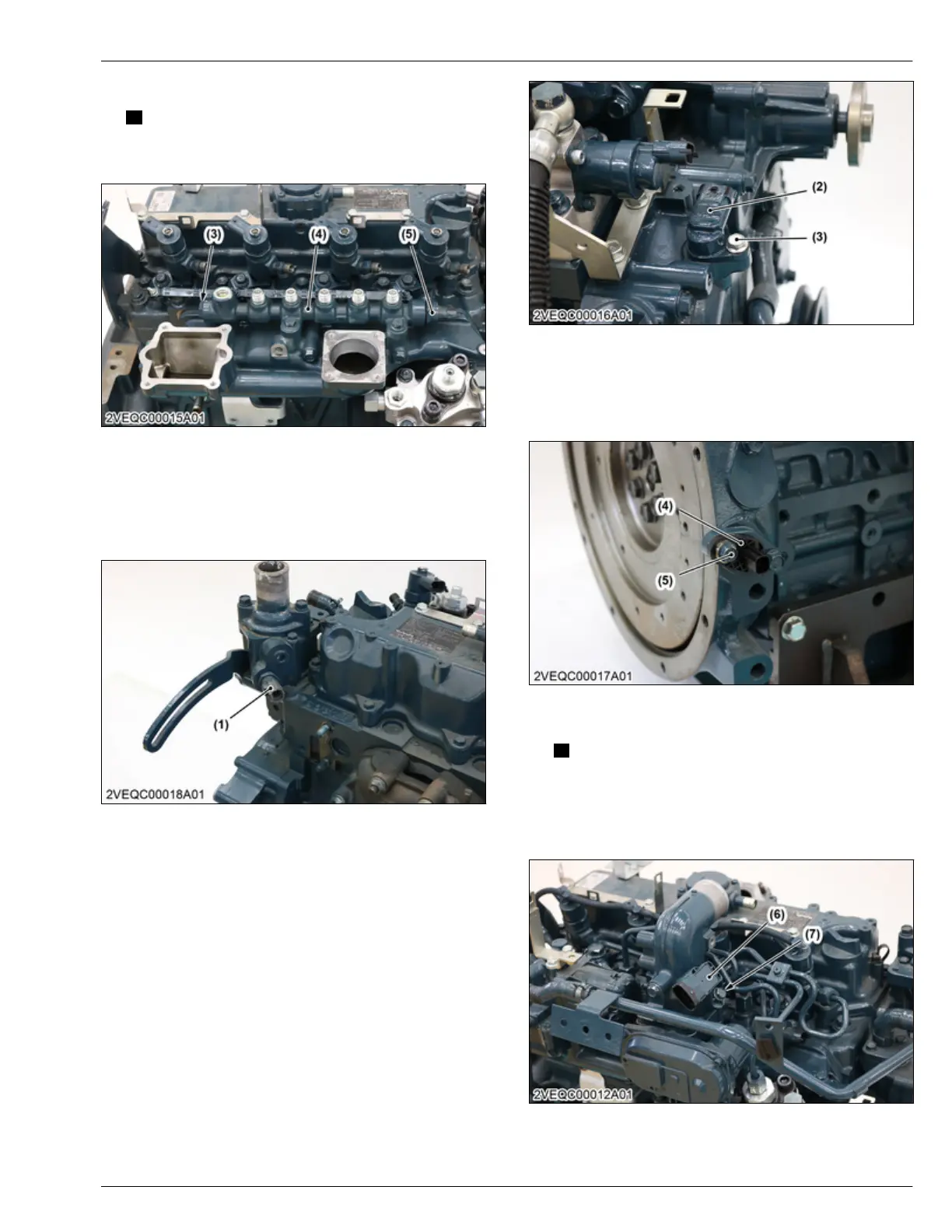

3. Remove the common rail (4).
IMPORTANT
• Store the
common rail (4) so it does not get
any dust in it.
(3) Pressure limiter
(4) Common rail
(5) Rail pressure sensor
5.12 Removing sensors
1. Remove the coolant temperature sensor (1).
(1) Coolant temperature sensor
2. Remove
the
camshaft position sensor mounting
screw (3).
3. Remove the camshaft position sensor (2).
(2) Camshaft position sensor (3) Camshaft position sensor
mounting screw
4. Remove the crankshaft position sensor mounting
screw (5).
5. Remove the crankshaft position sensor (4).
(4) Crankshaft position sensor (5) Crankshaft position sensor
mounting screw
IMPORTANT
• If you drop the sensor, do not reuse it.
6. Remove the boost pressure sensor mounting screw
(7).
7. Remove the boost pressure sensor (6).
(6) Boost pressure sensor (7) Boost pressure sensor
mounting screw
SERVICING
5. Disassembling 4. ENGINE
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
