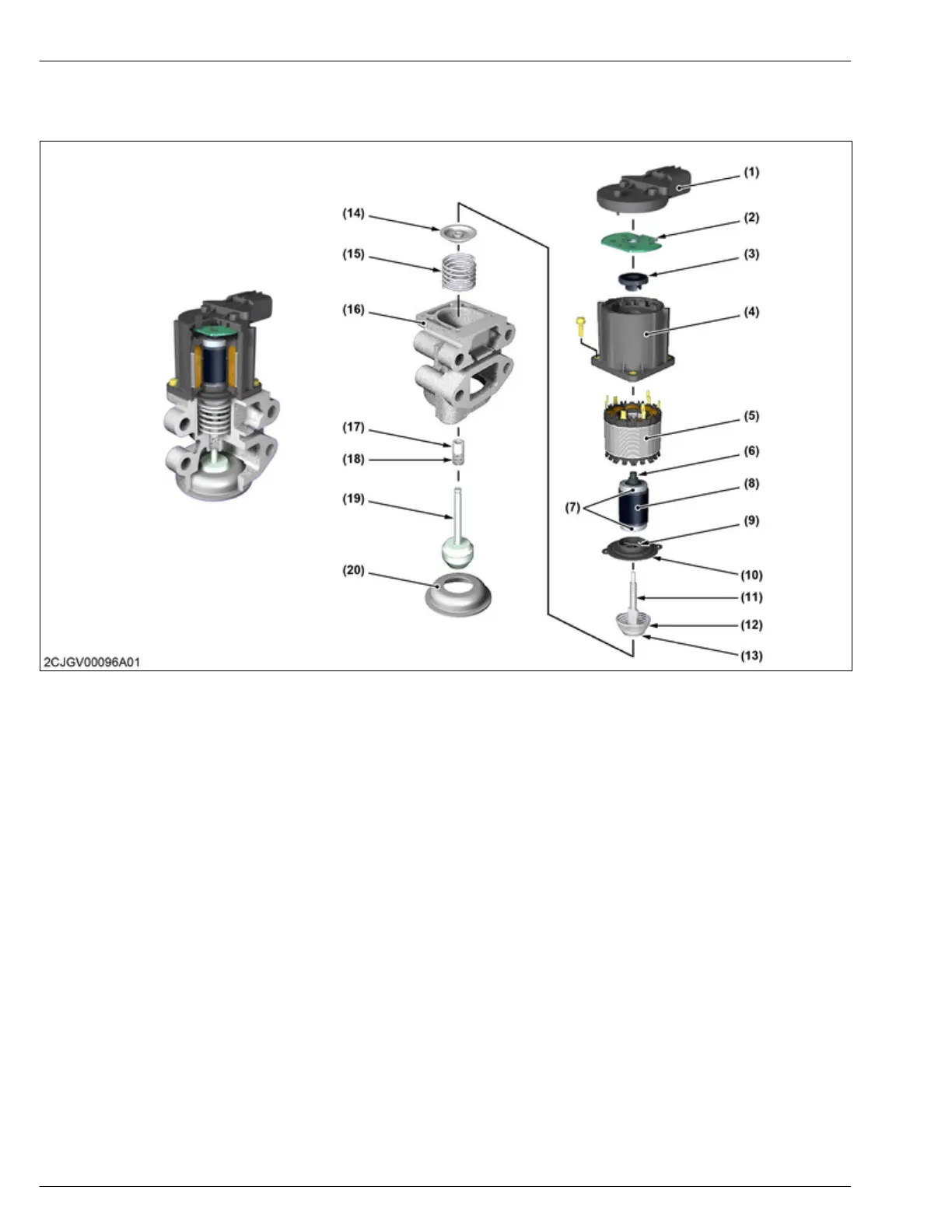

5.6.2 Structure of EGR valve
The EGR valve is made up of a lift sensor, motor
, and valve.
(1) Connector
(2) Circuit board
(3)
Magnet
(4) Motor exterior
(5) Bent core
(6) Rotor
(7) Bearing
(8) Magnet
(9) Washer
(10) Boss
(11) Shaft
(12) Assist Spring
(13) Spring holder
(14) Spring holder
(15) Spring
(16) Housing
(17) Bush
(18) Filter
(19) Valve assembly
(20) Valve seat
4. ENGINE
MECHANISM
5. Exhaust gas recirculation (EGR) system
4-48
