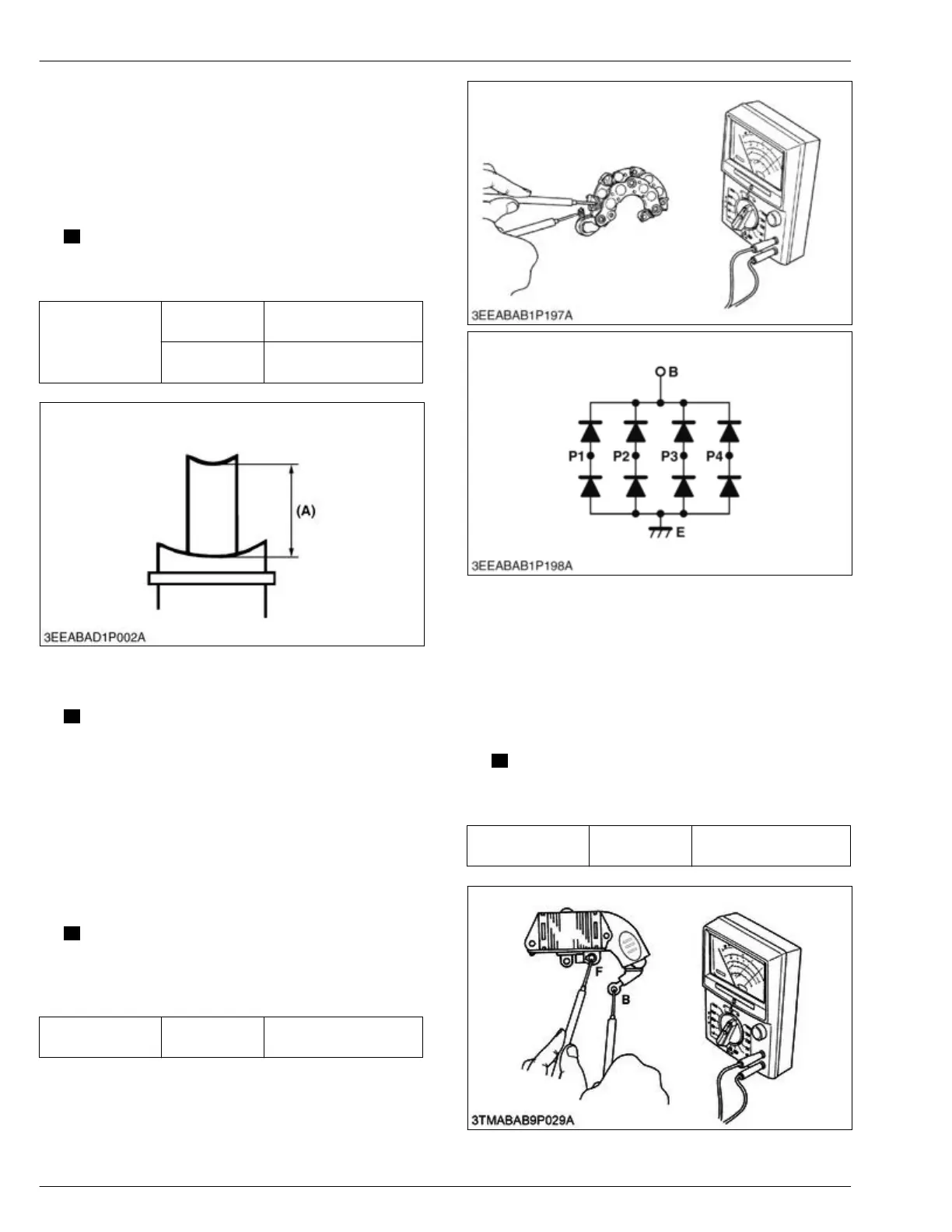

7.53 Checking brush wear of
alternator
Tools required
• V
ernier caliper
1. Measure the brush length (A) with a vernier
calipers.
NOTE
• If the
measurement is less than the service
limit, replace it.
Brush length (A)
Service specifi-
cation
10.5 mm
0.413 in.
Service limit
8.4 mm
0.33 in.
(A) Brush length
2. Make sure that the brush moves smoothly.
NOTE
• If the
brush is damaged and not smoothly,
replace it.
7.54 Checking rectifier
Tools required
• Circuit tester
1.
Check the continuity across each diode of rectifier
with the resistance range of circuit tester
.
NOTE
• The rectifier
is correct if the diode in the
rectifier conducts electricity only in one
direction.
Resistance
Service specifi-
cation
Less than 1.0 Ω
7.55 Checking IC regulator
Tools required
• Circuit tester
1.
Check the continuity across the B terminal (2) and
the F terminal (1) of IC regulator with the resistance
range of circuit tester.
NOTE
• The IC
regulator is correct if it conducts
electricity only in one direction.
Resistance
Service specifi-
cation
Less than 1.0 Ω
(1) F terminal (2) B terminal
4. ENGINE
SERVICING
7. Servicing
4-190
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
KiSC issued 12, 2018 A
