2FB/2FC-3
1-6-14
(3) Pressure adjustment of separation pulley (reference)
Perform the following adjustment if no paper feed or multiple sheets of paper occurs for feeding from the cassette.
Caution:
Basically, adjustment is not needed. Perform the adjustment only when a paper feed performance gets worse remarkably
with the paper type.
Procedure

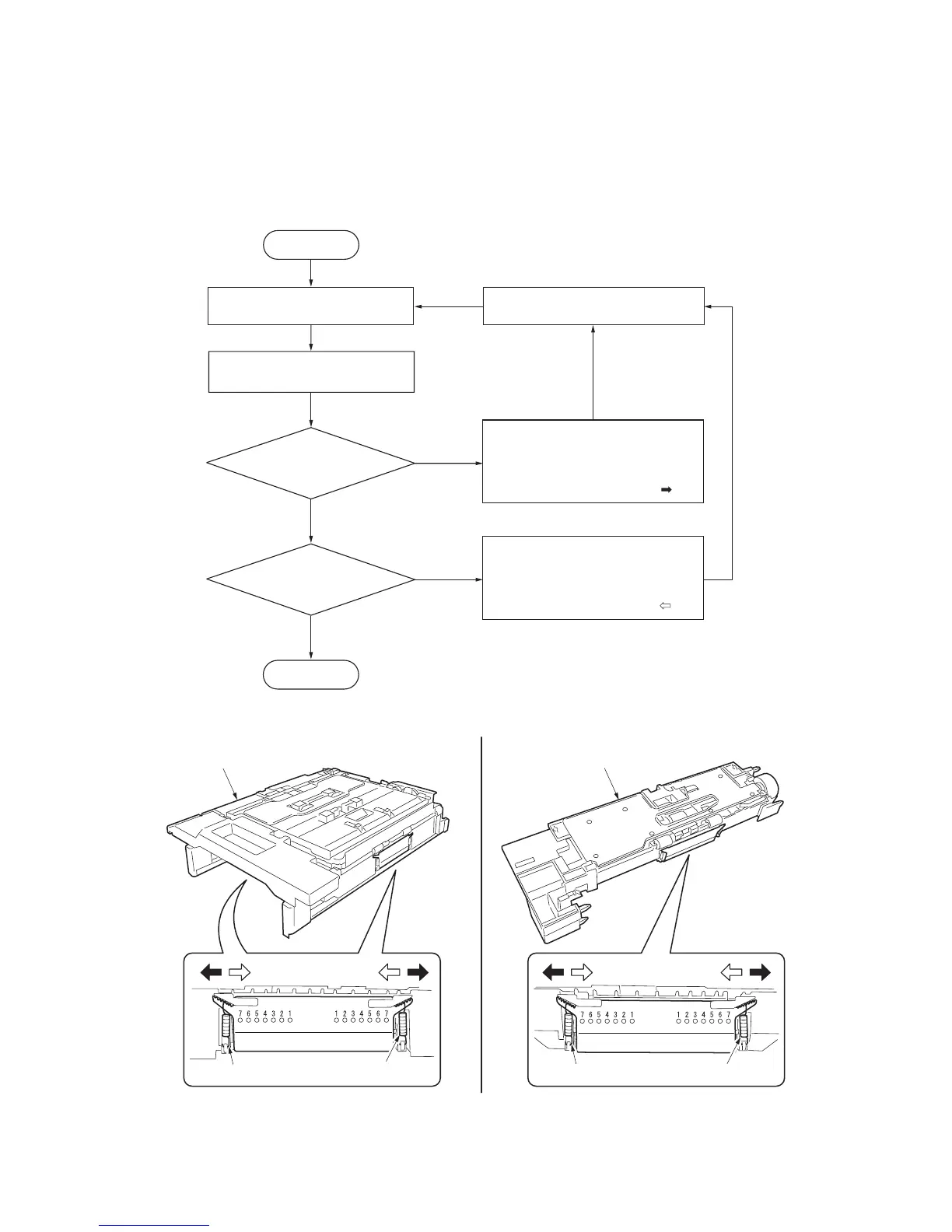

Figure 1-6-30
Refit the deck conveying unit or
primary paper feed unit.
No
Yes
Press the start key and
make a test copy.
Start
End
Does multiple sheets of
paper feed occur?
Does no paper
feed occur?
No
Select the cassette
to be adjusted.
Remove the deck conveying unit or
primary paper feed unit (see page 1-6-3
or 1-6-10).
Move the position of two springs in
the direction of the black arrow ( ).
Yes
Remove the deck conveying unit or
primary paper feed unit (see page 1-6-3
or 1-6-10).
Move the position of two springs in
the direction of the white arrow ( ).
Primary paper feed unitDeck conveying unit
Adjusting spring
Adjusting spring
Adjusting spring
Adjusting spring
To Next Page
