2FB/2FC
1-6-65
(3) Detaching and refitting the transfer roller
Follow the procedure below to replace the transfer roller.
Procedure
1. Remove the transfer unit (see page 1-6-61).
2. Remove the transfer belt (see page 1-6-63).
3. Remove the screw of the transfer unit rear
and then remove the terminal, spring and
pin.
* When refitting the spring, make sure that the
wider edge is facing toward the terminal.

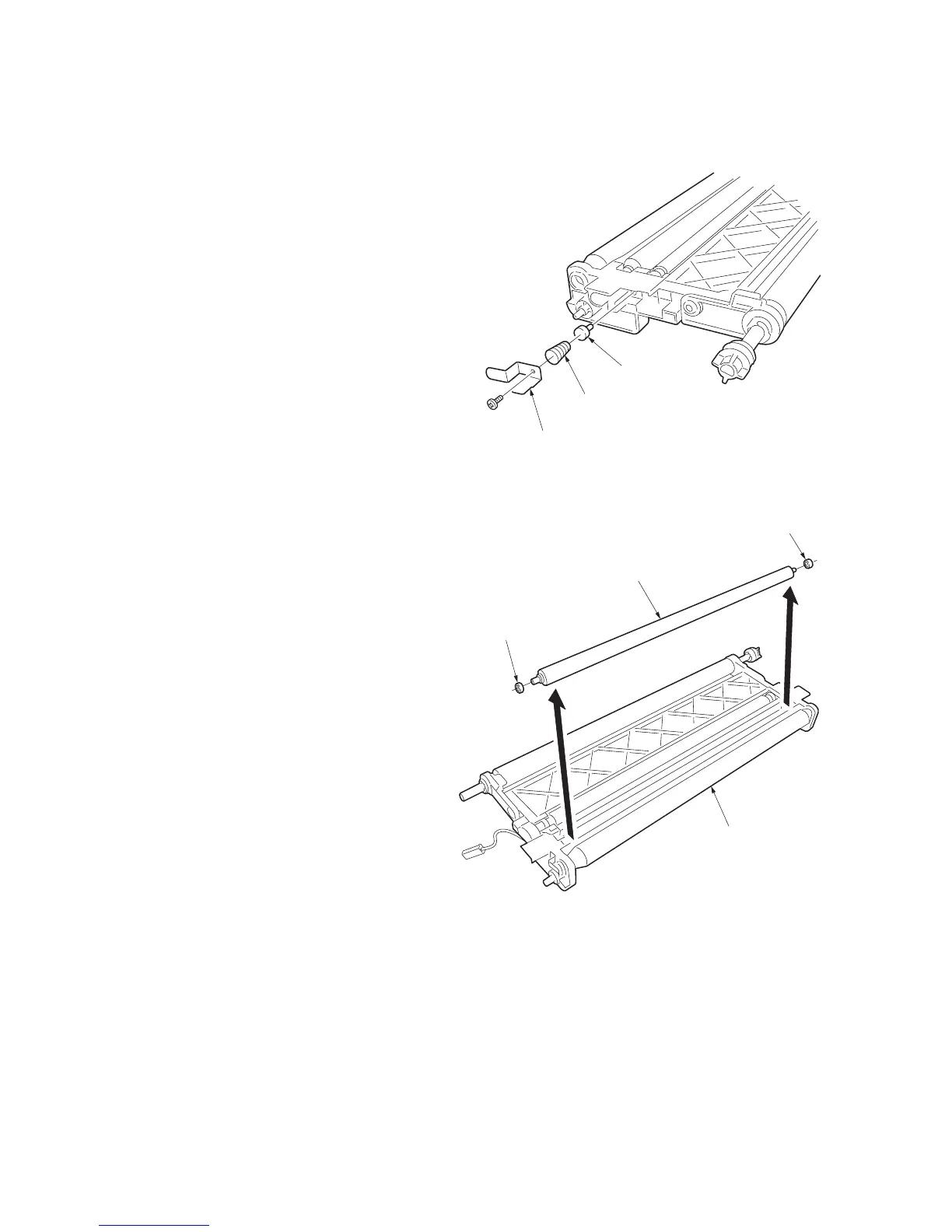

Figure 1-6-122
4. Push up the front and rear transfer roller
bearing using the flat-blade screwdriver, and
then remove the roller from the transfer unit.
5. Remove the bearings from the both ends of
the transfer roller.
6. Replace the transfer roller and attach the
roller to the transfer unit.
Figure 1-6-123
7. Refit the transfer belt to the transfer unit.
8. Refit the transfer unit.
Terminal
Spring
Pin
Transfer roller
Bearing
Transfer unit
Bearing
