2FB/2FC
2-1-24
2-1-9 Eject and feedshift section
The feedshift and eject sections switches the paper path by copy mode and eject paper or convey the paper to the duplex
section.
For duplex copy mode, the paper for which copying on the rear side has been completed is conveyed to the duplex section
by the feedshift section operation.
After the conveyed paper is inverted, it is fed again for front side copying.

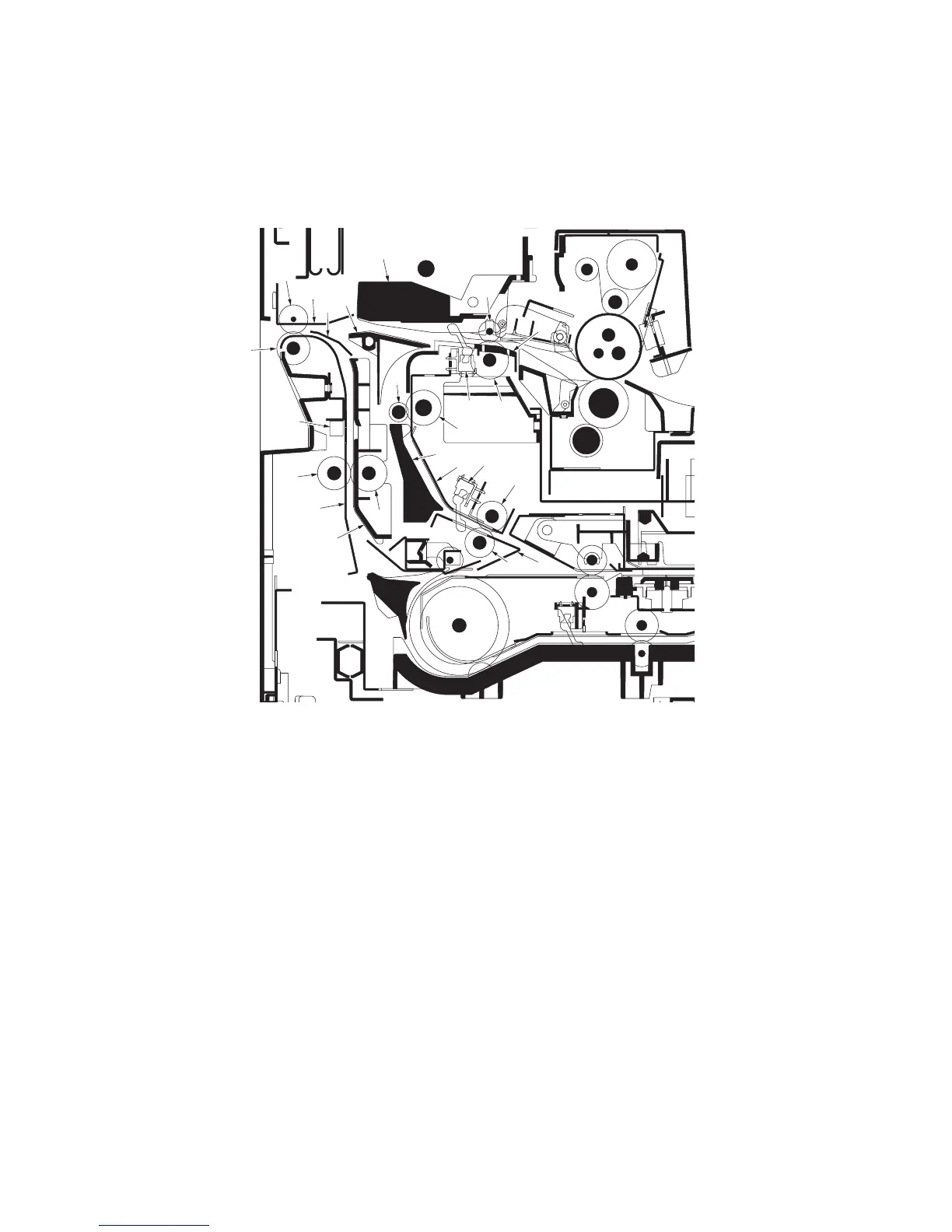

Figure 2-1-28
Eject and feedshift section
(1) Switchback left guide
(2) Switchback pulley
(3) Eject roller
(4) Switchback exit switch (SBESW)
(5) Eject upper guide
(6) Eject pulley
(7) Eject lower guide
(8) Feedshift lower right guide
(9) Feedshift middle left guide
(10) Feedshift lower left guide
(11) Feedshift left roller
(12) Feedshift right roller
(13) Feedshift lower right roller
(14) Switchback feed right roller
(15) Feedshift upper left roller
(16) Feedshift lower guide
(17) Feedshift guide
(18) Switchback right guide
(19) Feedshift switch (FSSW)
(20) Exit switch (ESW)
(21) Feedshift upper guide
(22) Fuser eject upper roller
(23) Fuser eject lower roller
