2FB/2FC
1-6-83
(2) Detaching and refitting the DP original feed belt, DP forwarding pulley and DP separation roller
Follow the procedure below to clean or replace the DP original feed belt, DP forwarding pulley and DP separation roller.
Procedure

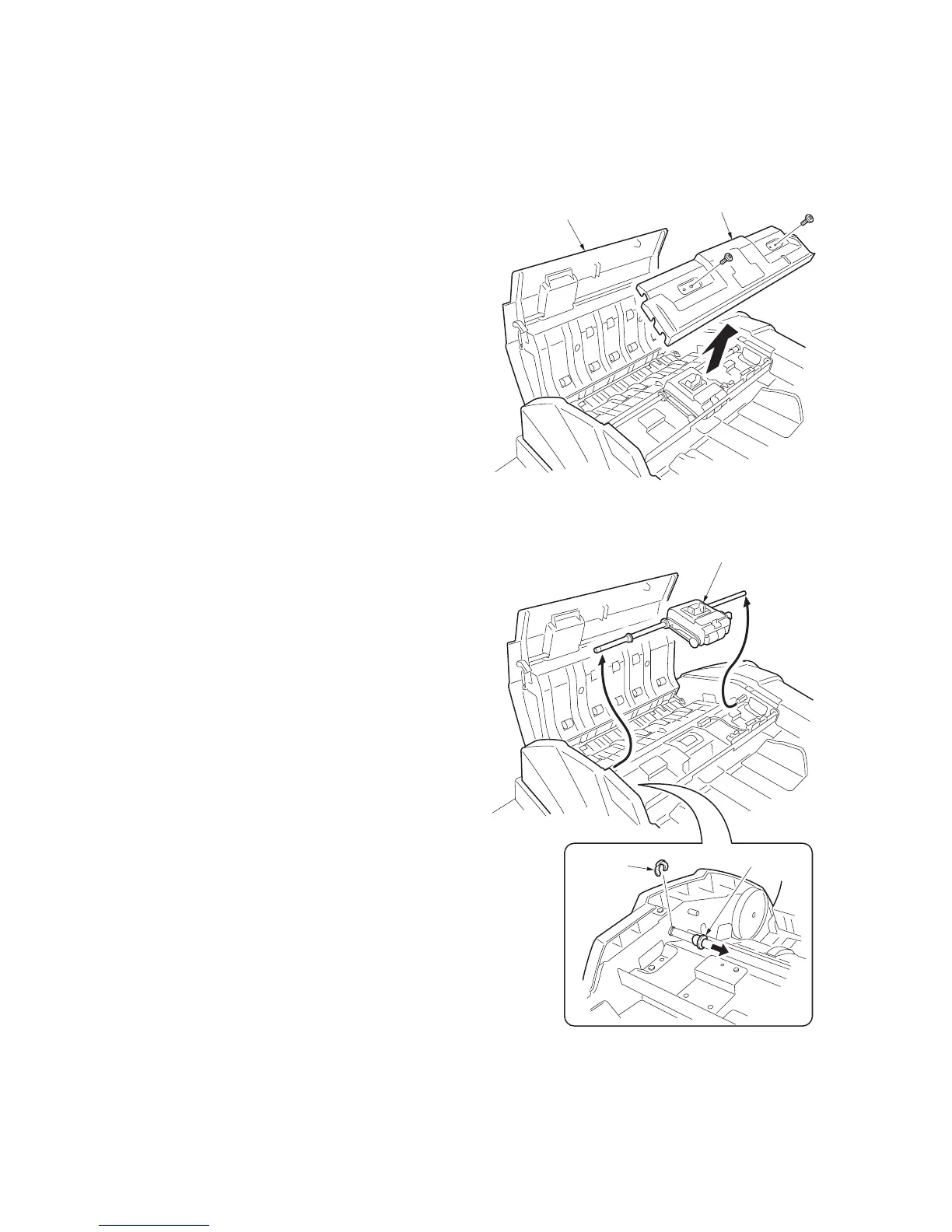

1. Open the document processor top cover.
2. Remove two screws and then remove the
upper original feed cover.
Figure 1-6-163
3. Remove the stop ring of the original feed
belt shaft front and move the bush aside to
inside.
4. Slide the original feed pulley unit to front and
release the rear of the original feed belt
shaft. Remove the original feed pulley unit
from DP.
Figure 1-6-164
Upper original
feed cover
Document processor
top cover
Original feed pulley unit
Stop ring
Bush
To Next Page
