Kyocera KM-8030 Service Manual

2FB/2FC
1-6-61
1-6-7 Transfer section

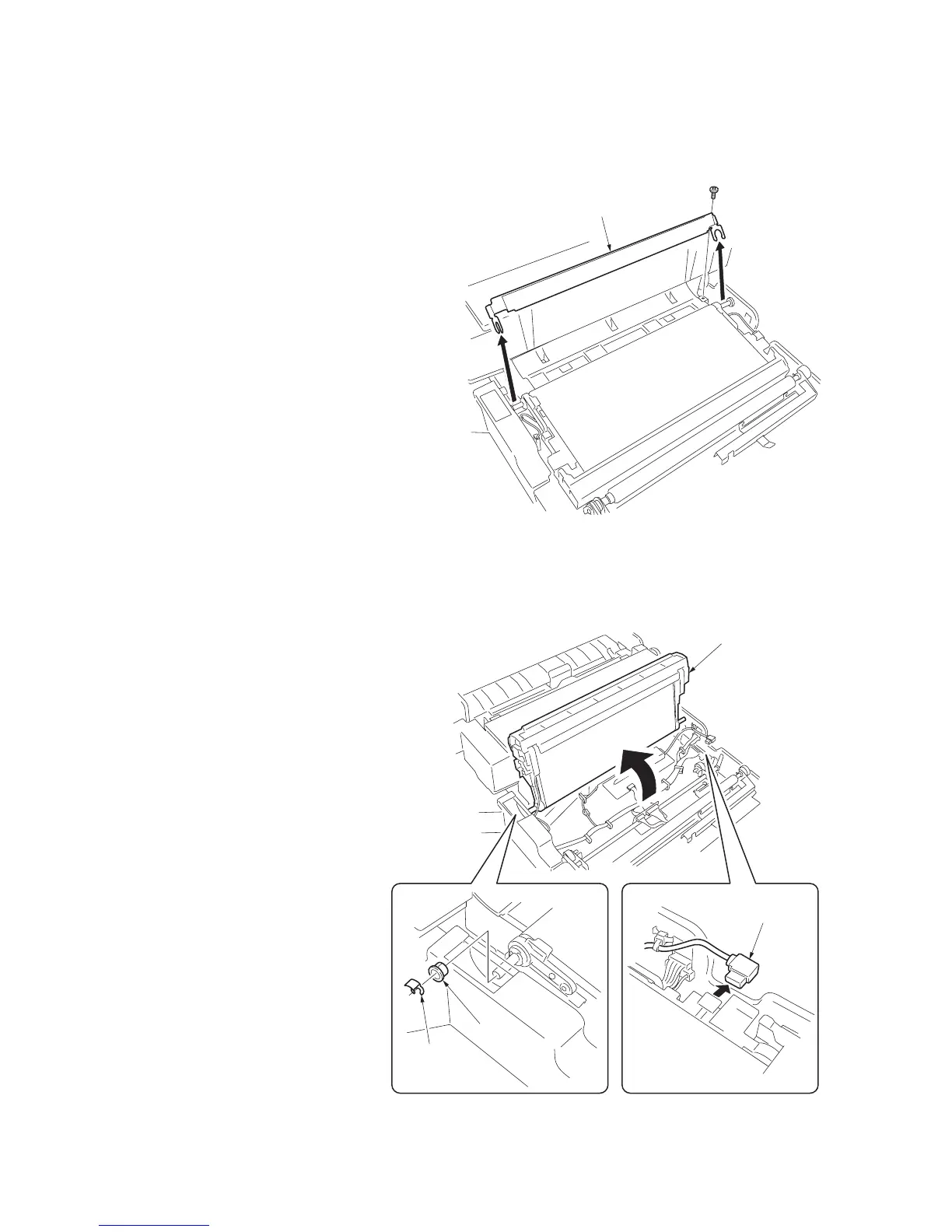

(1) Detaching and refitting the transfer unit
Procedure
1. Open the front cover and pull out the paper
conveying unit.
2. Remove the screw and then remove the
rear transfer guide.
Figure 1-6-113
3. Remove the stop ring and bush of the paper
conveying unit front.
4. Remove the connector of the paper convey-
ing unit rear and then push up the transfer
unit.
Figure 1-6-114
Rear transfer guide
Transfer unit
Connector
Stop ring
Bush
