2FB/2FC
1-6-76

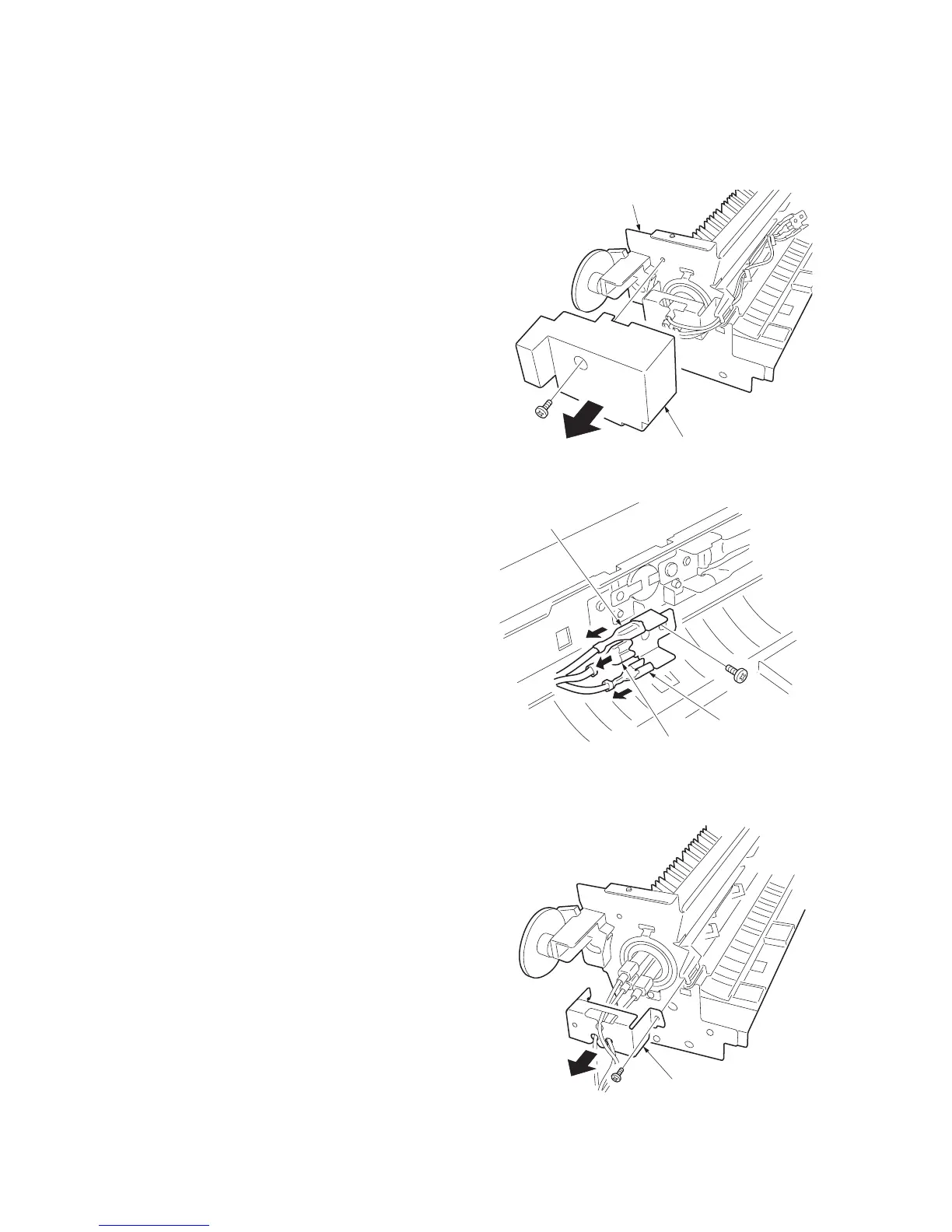

(7) Detaching and refitting the fuser heater M, S and L
Follow the procedure below to check or replace the fuser heater M, S and L.
Procedure
1. Remove the fuser unit (see page 1-6-70).
2. Remove the upper fuser cover and upper
fuser frame (see page 1-6-72).
3. Remove the screw and then remove the
front fuser cover.
Figure 1-6-146
4. Remove the screw of the fuser thermostat
left, and then remove the terminals of the
fuser heater M, S and L.
Figure 1-6-147
5. Remove the screw and then remove the
front fuser holder.
Figure 1-6-148
Front fuser cover
Fuser unit
Terminal of
the fuser heater L
Terminal of
the fuser heater M
Terminal of the fuser
heater S
Front fuser holder
To Next Page
