2FB/2FC
2-1-1
2-1 Mechanical construction
2-1-1 Paper feed section
This copier is designed to feed paper either automatically from four paper cassettes or manually from the MP tray.
(1) Paper feed section 1 (cassette 1 and 2)
Paper feed section 1 (cassette 1 and 2) consists of the paper holder with the deck base activated by lift motor 1 and 2, and
the deck conveying unit for extracting and conveying the paper.
Each cassette can hold up to 1500 sheets of paper.
Paper is fed out of the cassette by the rotation of the forwarding pulley, paper feed pulley and separation pulley.

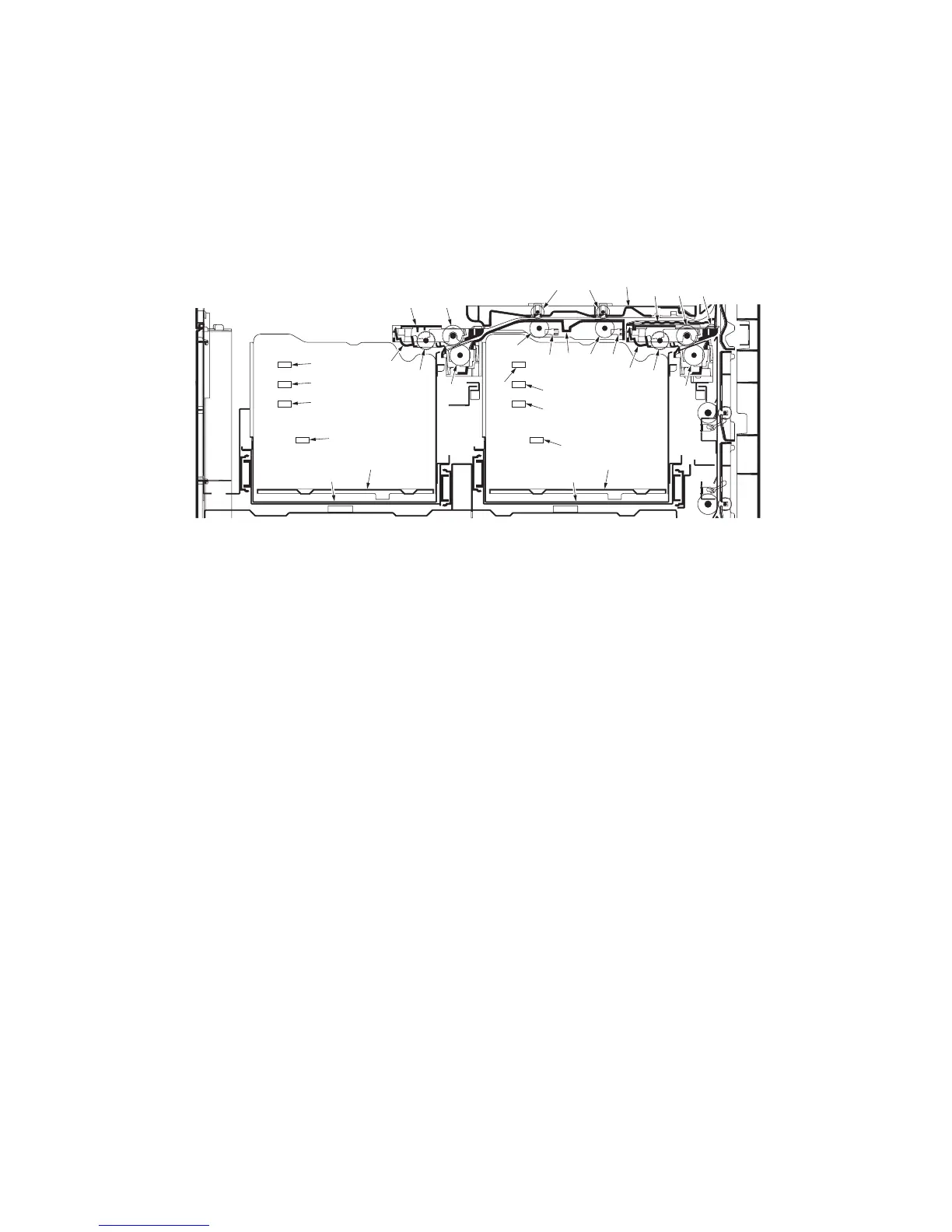

Figure 2-1-1 Paper feed section 1 (cassette 1 and 2)
(1) Deck base
(2) Deck lift plate
(3) Cassette 1 level sensor 1 (CAS1LS1)
(4) Cassette 1 leave sensor 2 (CAS1LS2)
(5) Cassette 1 leave sensor 3 (CAS1LS3)
(6) Cassette 1 detection sensor (CAS1DS)
(7) Cassette 2 leave sensor 1 (CAS2LS1)
(8) Cassette 2 leave sensor 2 (CAS2LS2)
(9) Cassette 2 leave sensor 3 (CAS2LS3)
(10) Cassette 2 detection sensor (CAS2DS)
(11) Deck feed housing
(12) Deck feed guide
(13) Lower deck guide
(14) Leading feed housing
(15) Forwarding pulley
(16) Paper feed pulley
(17) Support pulley
(18) Separation pulley
(19) Deck conveying roller
(20) Deck conveying roller
(21) Deck conveying switch 1 (DCSW1)
(22) Deck conveying switch 2 (DCSW2)
(23) Feed pulley
(24) Feed pulley
(25) Leading feed housing
(26) Forwarding pulley
(27) Paper feed pulley
(28) Deck conveying left cover
(29) Separation pulley
