2FB/2FC-3
1-6-25
Yes
No
Start
Enter maintenance mode.
Enter 034 using the numeric keys.
Select CASSETTE or BYPASS
(MP tray) on the touch panel.
Press the interrupt key.
Is the leading edge
registration correct?
Press the start key
The new setting is stored.
Press the stop/clear key to exit
maintenance mode.
End
Select RCL ON L, RCL ON(DUP) L,
RCL ON S or RCL ON(DUP) S
on the touch panel.
For output example 1, decrease
the value using the cursor down key.
For output example 2, increase
the value using the cursor up key.
Touch panel display
CASSETTE
BYPASS
RCL ON L: Leading edge registration (large size)
RCL ON (DUP) L: Leading edge registration for duplex
copying (second face) (large size)
RCL ON S: Leading edge registration (small size)
RCL ON (DUP) S: Leading edge registration for duplex
copying (second face) (small size)
*: Small size means the paper length less than 210
mm/8
1
/
2
".
A setting value is corrected when the setting
value of RCL ON L and RCL ON S is less than -13.9.
A setting value of RCL ON (DUP) L is corrected
when the sum total of the setting value of RCL ON L
and RCL ON (DUP) L is less than -13.9.
A setting value of RCL ON (DUP) L is corrected
when the sum total of the setting value of RCL ON S
and RCL ON (DUP) S is less than -13.9.
Setting range: -30.0 to +50.0 (RCL ON L)
Setting range: -30.0 to +30.0
Changing the value by 1 moves the
leading edge by 0.1 mm.
Initial setting: 0
Press the start key.
Press the start key
to output a test pattern.
(8) Adjustment after roller and motor replacement
Perform the following adjustment after refitting rollers and motors.
(8-1) Adjusting the leading edge registration of image printing
Make the following adjustment if there is a regular error between the leading edges of the copy image and original.
<Caution>
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.
<Procedure>

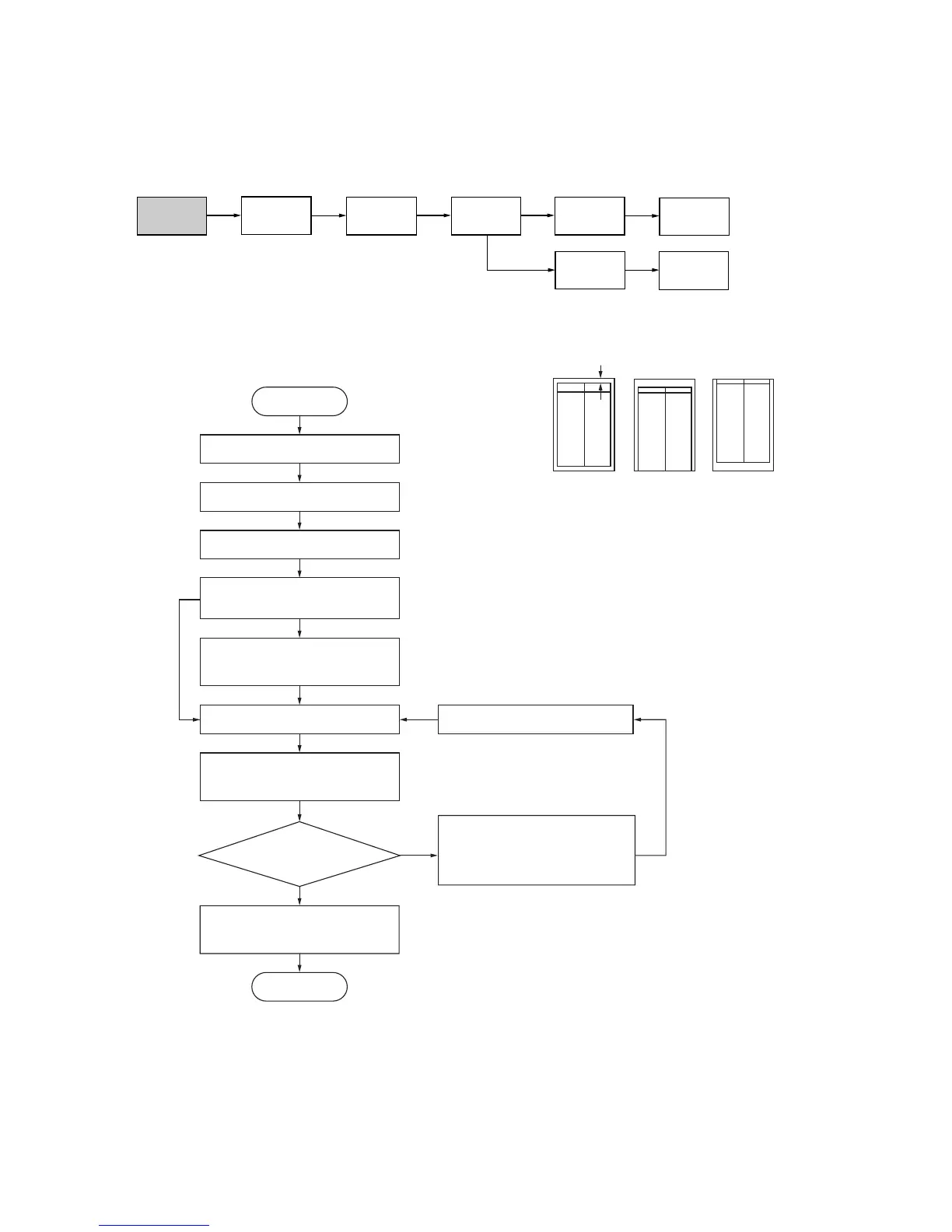

Figure 1-6-51
U034
U404
(P. 1-6-95)
U066
(P. 1-6-54)
U071
(P. 1-6-93)
Front (CCD adjustment)
Back (CIS adjustment)
U404
(P. 1-6-95)
U071
(P. 1-6-93)
U403
(P. 1-6-55)
U402
(P. 1-6-28)
Correct image Output
example 1
Output
example 2
Leading edge registration
To Next Page
