2FB/2FC-2.0
1-3-15
1-3-4 Installing the document finisher (option)
• Output connector of the main machine is non-LPS. Please use the item below interconnecting cable.
P/N: 3H327220
Circuit type: Non-LPS
Circuit specs.: 24 V DC
• Before installing the document finisher, press the Power key on the operation panel to off. Make sure that the Power
lamp is off before turning off the main power switch. And then unplug the power cable from the wall outlet.
Turning off the main power switch before pressing the Power key to off may cause damage to the equipped hard
disk.
Procedure

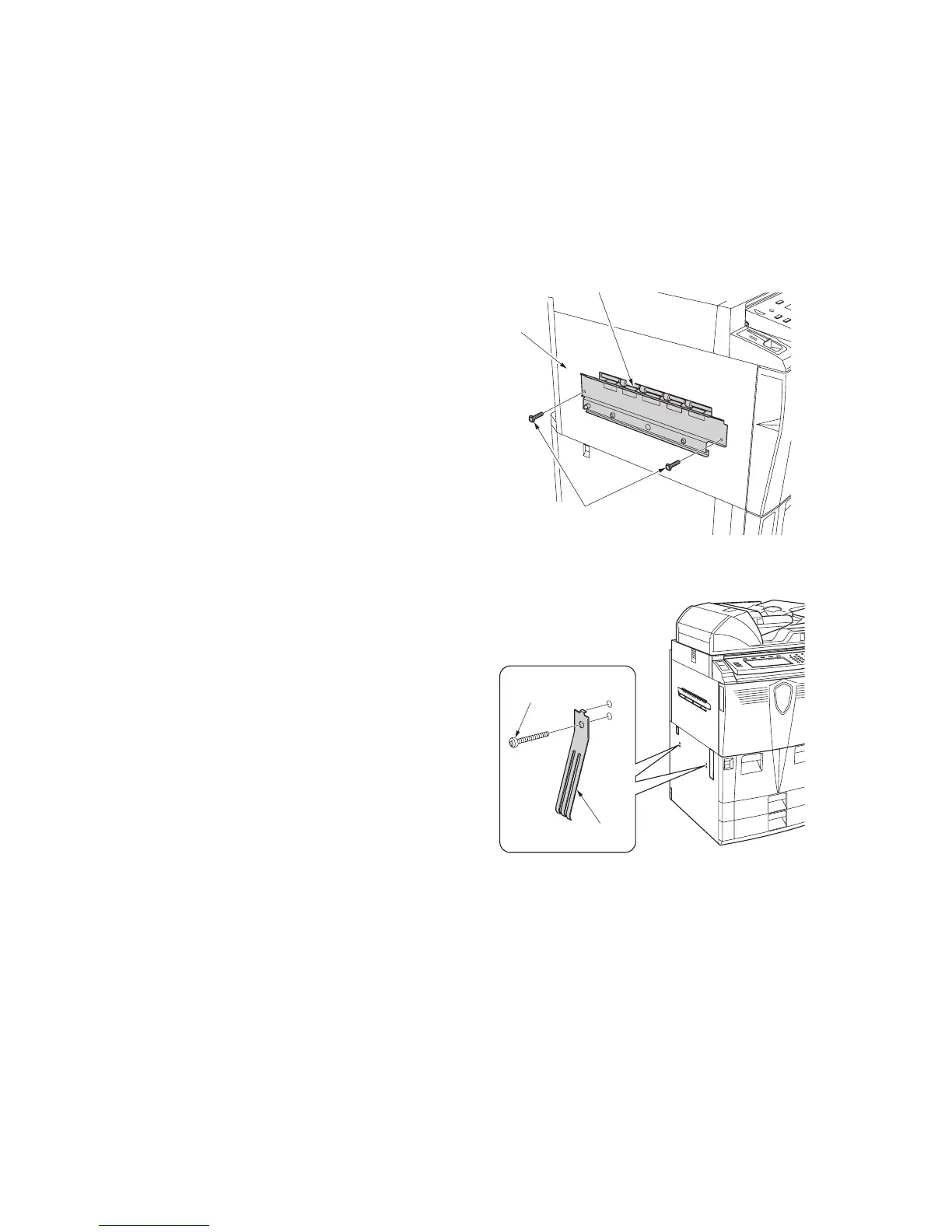

1. Install the connecting plate using the two M4
x 20 TP tap tight S screws on the left cover.
Figure 1-3-23
2. Fix two grounding plate A with the M3 x 14
tap tight S screw to the lower left cover of
the machine.
Figure 1-3-24
Connecting plate
M4 x 20 TP tap
tight S screws
Left cover
M3 x 14 tap
tight S screws
Grounding
plates A
To Next Page
