2FB/2FC
2-2-10
(7) Others (DP)

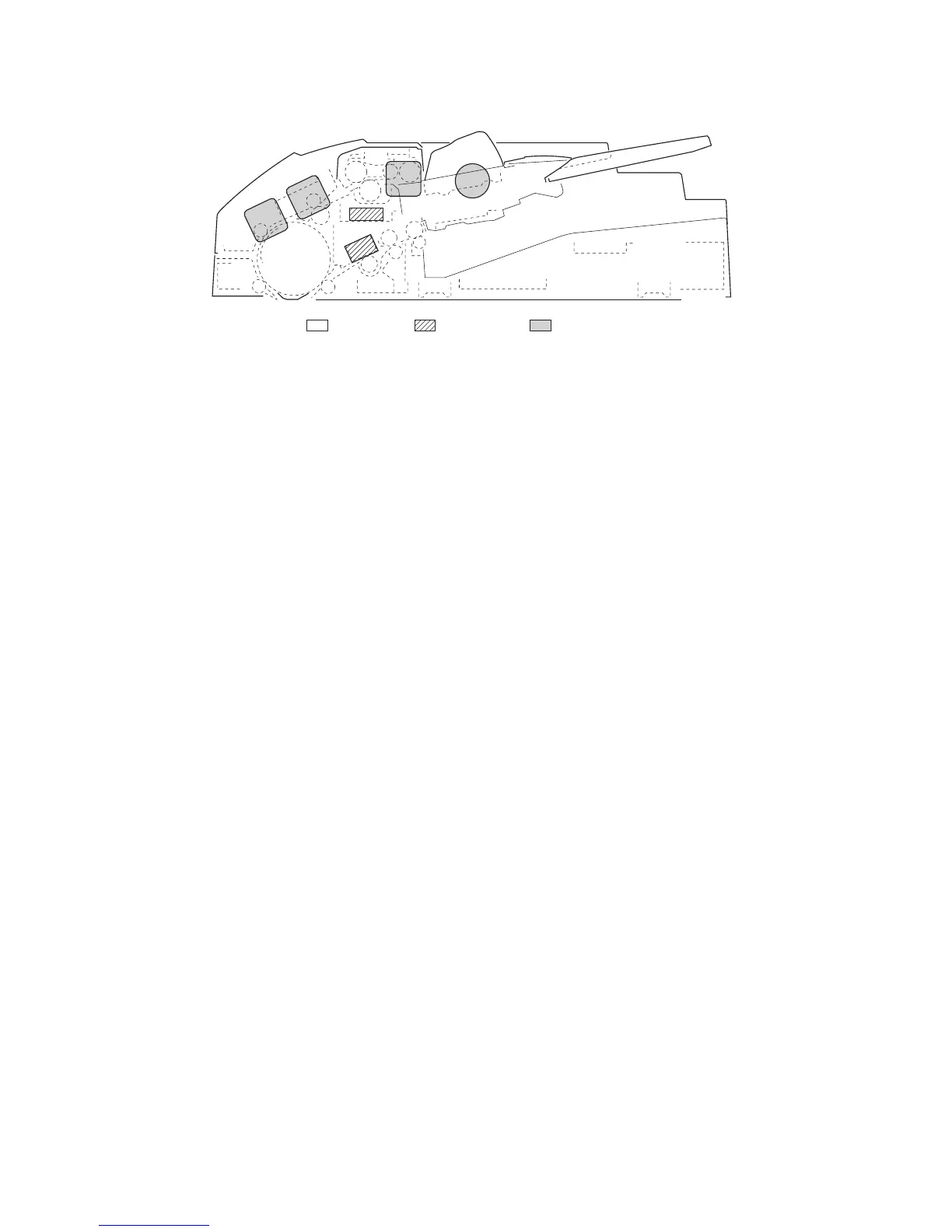

Figure 2-2-7 Others (DP)
1. Original feed motor (OFM)........................... Drives the DP original feed belt.
2. Original conveying motor (OCM) ................. Drives the original conveying sections.
3. Original registration motor (ORM)................ Drives the registration roller.
4. DP lift motor (DPLIM)................................... Operates the lift table.
5. DP fan motor (DPFM) .................................. Cools the CIS.
6. CIS (CIS)...................................................... Reads the image of originals.
1
3
5
6
4
2
Machine front
Machine inside Machine rear
