2FB/2FC
2-1-3
(2) Paper feed section 2 (cassette 3 and 4)
Paper feed section 2 (cassette 3 and 4) consists of the paper holder with the cassette operation plate activated by lift
motor 3 and 4, and the pulleys, such as the forwarding pulley, the paper feed pulley and the separation pulley, for extract-
ing and conveying the paper.
Each cassette can hold up to 500 sheets (80 g/m
2
)/525 sheets (75 g/m
2
) of paper.
Paper is fed out of the cassette by the rotation of the forwarding pulley, paper feed pulley and separation pulley.

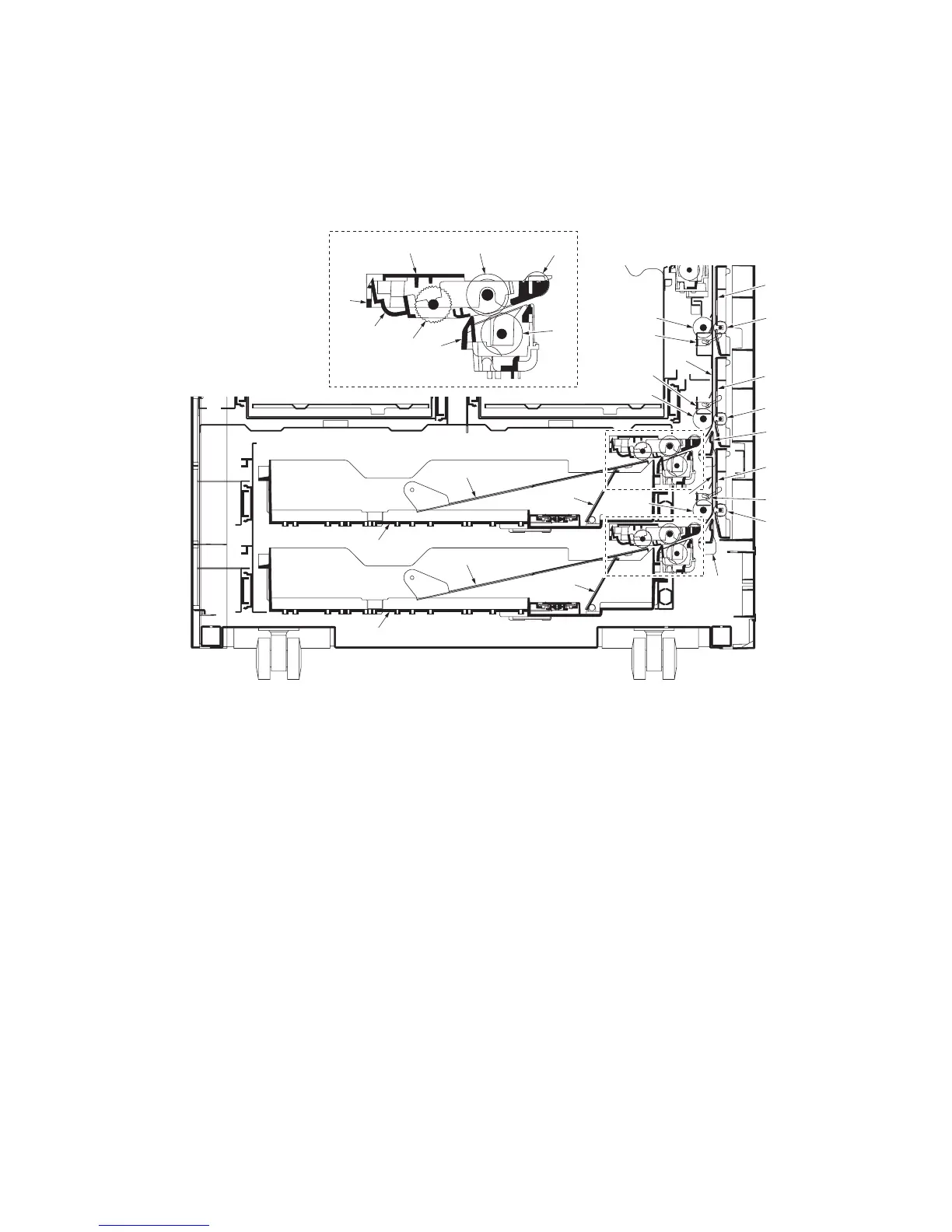

Figure 2-1-3 Paper feed section 2 (cassette 3 and 4)
(1) Vertical feed right guide B
(2) Vertical feed roller
(3) Feed pulley
(4) Feed switch 3 (FSW3)
(5) Vertical feed right guide B
(6) Feed pulley
(7) Vertical feed roller
(8) Feed switch 4 (FSW4)
(9) Left guide B
(10) Vertical feed right guide B
(11) Vertical feed roller
(12) Feed pulley
(13) Feed switch 5 (FSW5)
(14) Left guide C
(15) Left open guide
(16) Lift cassette operation plate
(17) Lift cassette operation plate
(18) Cassette
(19) Support pulley
(20) Paper feed pulley
(21) Forwarding pulley
(22) Feed cover
(23) Leading feed housing
(24) Separation pulley
(25) Feed lower housing
(26) Feed upper housing
