2FB/2FC-3
1-6-51
Enter maintenance mode.
Enter 065 using the numeric keys.
Yes
No
Start
End
Press the interrupt key.
Exit maintenance mode.
Place an original and press
the start key to make a test copy.
Is the image correct?
Setting range: -25 to +25
Initial setting: 0
Changing the value by 1 changes
the magnification by 0.1%.
Increasing the value makes
the image wider, and decreasing it
makes the image narrower.
For copy example 1, increase the
value using the cursor up key.
For copy example 2, decrease the
value using the cursor down key.
Press the start key.
The new setting
is stored.
Select MAIN SCAN ADJ
(main scanning direction).
Press the start key.
Press the stop/clear key.

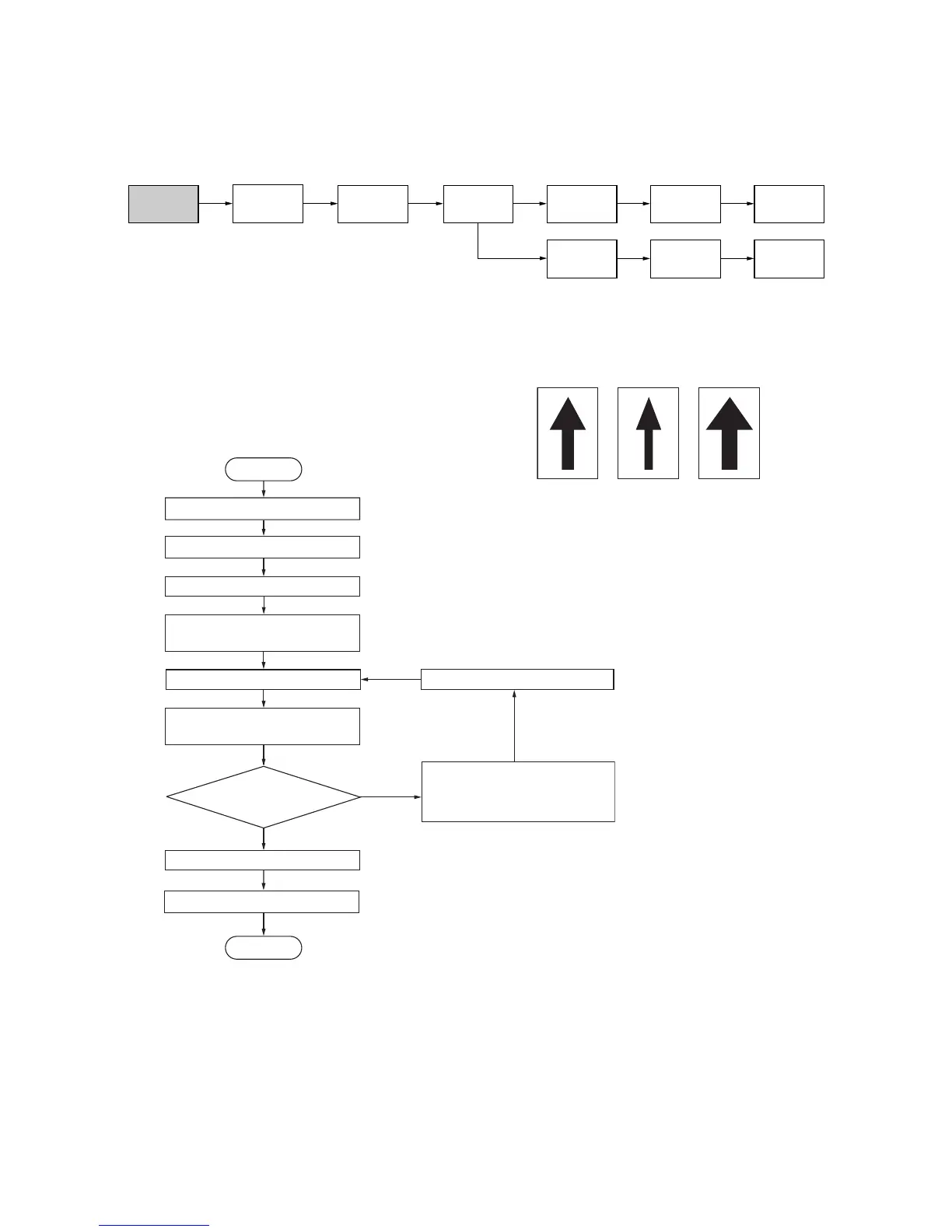

(7) Adjusting magnification of the scanner in the main scanning direction
Perform the following adjustment if the magnification in the main scanning direction is not correct.
.
<Caution>
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.
When making this adjustment, moire occurs.
<Procedure>
Figure 1-6-99
U065
U067
(P. 1-6-53)
U066
(P. 1-6-54)
U403
(P. 1-6-55)
U070
(P. 1-6-91)
U072
(P. 1-6-92)
U404
(P. 1-6-95)
U070
(P. 1-6-91)
U072
(P. 1-6-92)
U404
(P. 1-6-95)
Front (CCD adjustment)
Back (CIS adjustment)
Original Copy
example
Copy
example 2
To Next Page
