2FB/2FC-3
1-6-26
Yes
No
Start
Enter maintenance mode.
Enter 407 using the numeric keys.
Press the start key.
Press the interrupt key.
Press the start key
and make a test copy.
Is the leading edge
registration for the reverse
face correct?
Press the start key.
The new setting is stored.
For copy example 1, increase
the value using the cursor up key.
For copy example 2, decrease
the value using the cursor down key.
Setting range: -2.0 to +2.0
Changing the value by 1 moves
the leading edge by 0.1 mm.
Initilal setting: 2
Press the stop/clear key.
Exit maintenance mode.
End

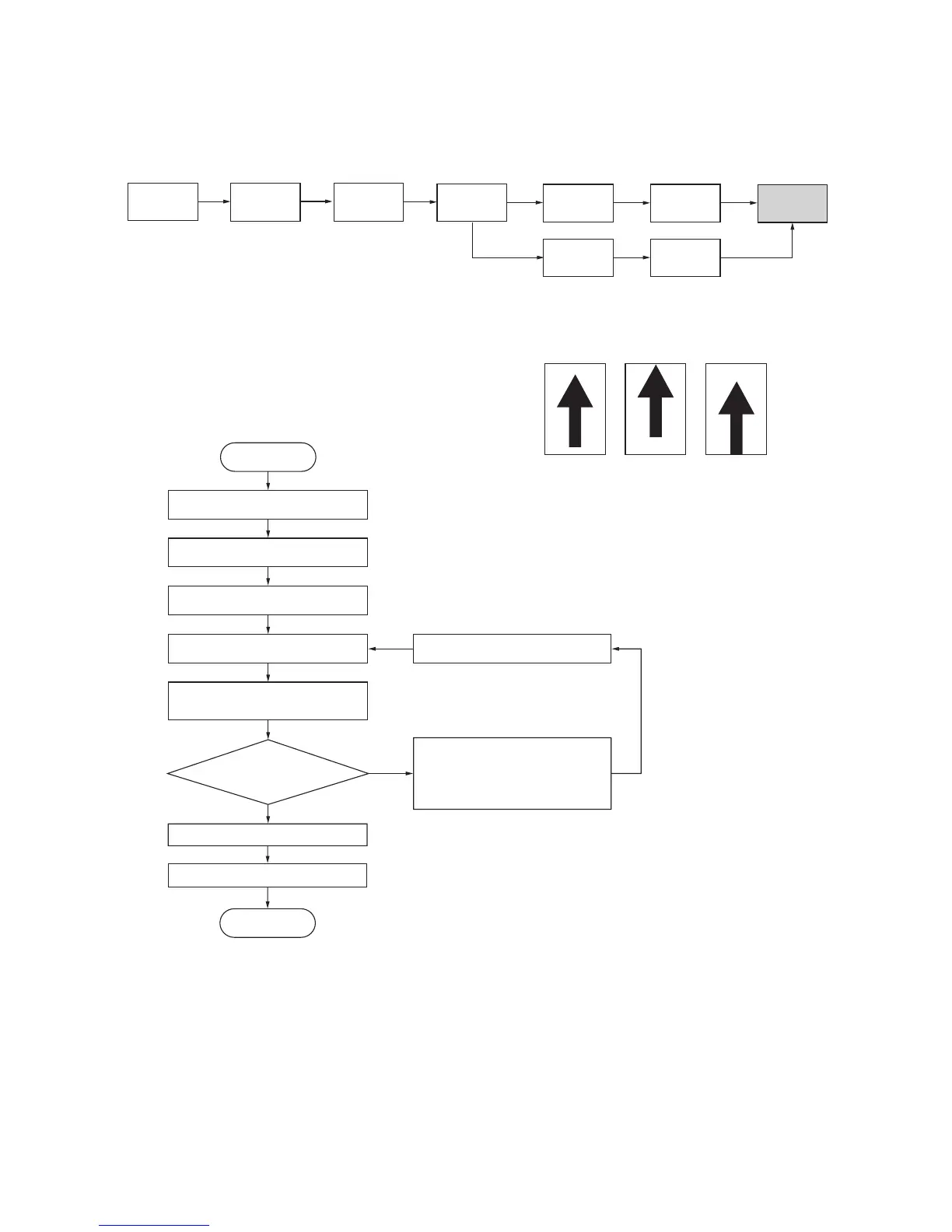

(8-2) Adjusting the leading edge registration for duplex switchback copying
Make the following adjustment if there is a regular error between the leading edge of the copy image on the front face and
that on the reverse face during duplex switchback copying.
<Caution>
Before making the following adjustment, ensure the above adjustments have been made in maintenance mode.
<Procedure>
Figure 1-6-52
U071
(P. 1-6-93)
U404
(P. 1-6-95)
U403
(P. 1-6-55)
U066
(P. 1-6-54)
U407
Front (CCD adjustment)
Back (CIS adjustment)
(P. 1-6-93)
U071
U404
(P. 1-6-95)
U034
(P. 1-6-25)
U402
(P. 1-6-28)
Image on
front face
Copy
example 1
(reverse face)
Copy
example 2
(reverse face)
To Next Page
