2FB/2FC
1-6-17
(5) Detaching and re
fitting the MP unit

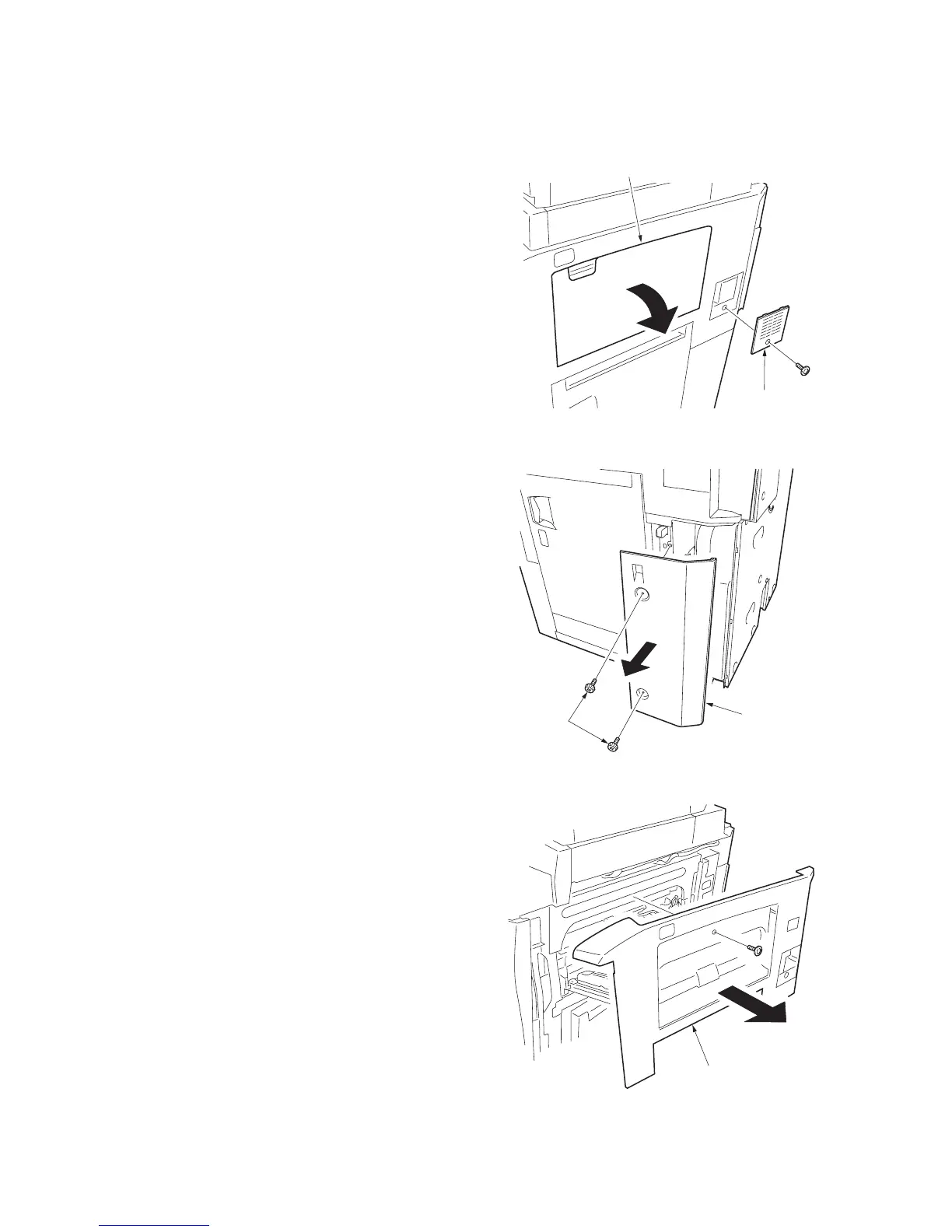

Procedure
1.
Remove the screw and then
remove the
developing fan cover.
2.
Open the MP tr
ay
.
Figure 1-6-34
3.
Remove the two pins and then remove the
lower right rear cover
.
Figure 1-6-35
4.
Remove the screw and then
remove the
middle right cover
.
Figure 1-6-36
Developing
fan cover
MP tray
Lower right
rear cover
Pins
Middle right cover
