2FB/2FC-2.0
1-3-31

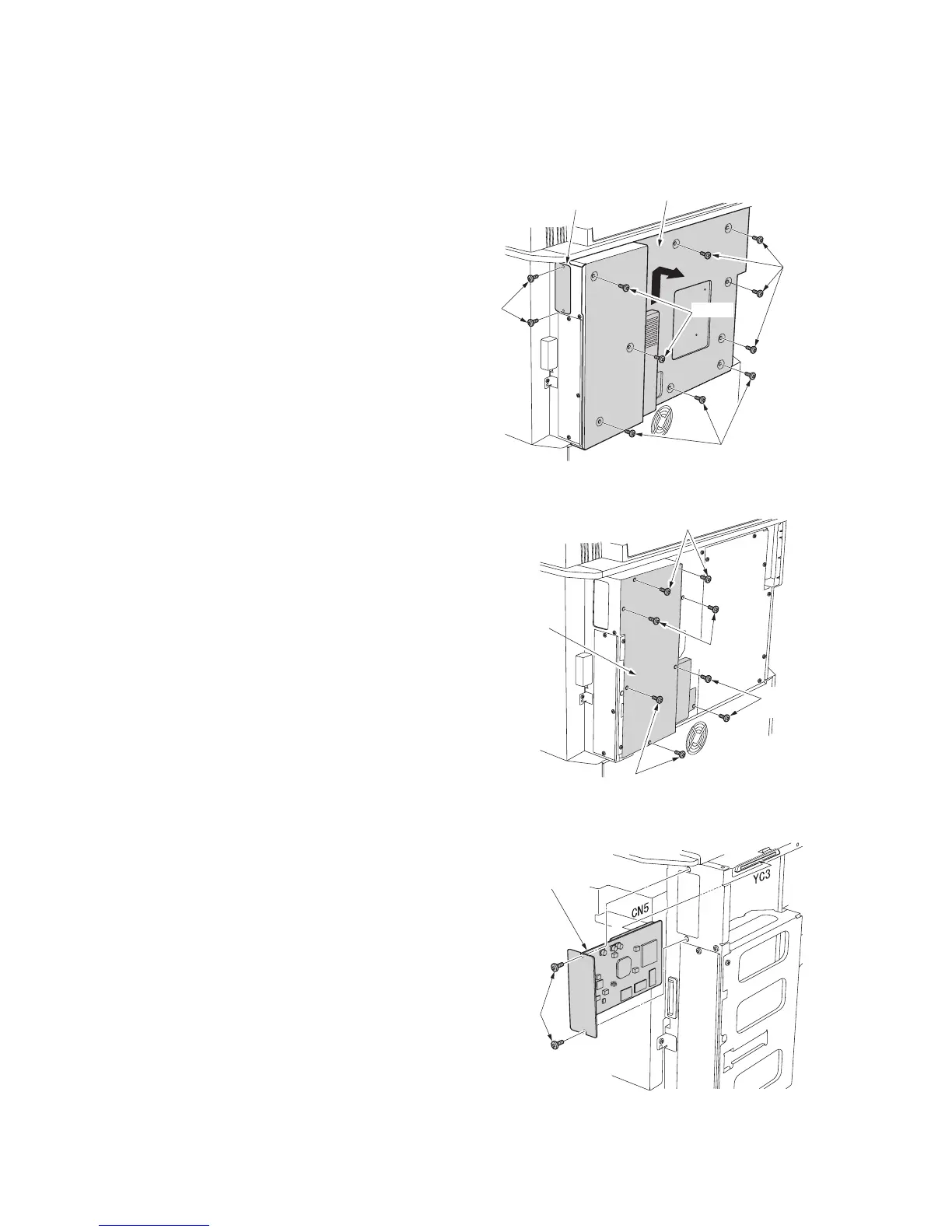

1-3-7 Installing the scanner kit (option)
• Before installing the scanner kit, press the Power key on the operation panel to off. Make sure that the Power lamp is
off before turning off the main power switch. And then unplug the power cable from the wall outlet. Turning off the
main power switch before pressing the Power key to off may cause damage to the equipped hard disk.
Procedure
1. Remove the two screws, and then remove
the hole cover.
2. Remove the nine screws, and then remove
the rear middle cover.
Figure 1-3-63
3. Remove the eight screws, and then remove
the right sequence cover.
Figure 1-3-64
4. Firmly push connector CN5 on the scanner
board all the way into connector YC3 on the
main PWB.
5. Fasten the scanner board to the controller-
box cover with 2 screws.
6. Return the right sequence cover and rear
middle cover to their original positions.
Figure 1-3-65
Screws
Screws
Screws
Hole cover
Rear middle cover
Screws
Screws
Screws
Screws
Right
sequence
cover
Screws
Screws
Scanner board
To Next Page
